Standard Recovery High Voltage Diode——450-750mA 9-16KV
|
|
Feature: |
|
● Low VF ● High reliability, high Tj ● High surge capability |
|
|
Application: |
|
|
Microwave oven, laser power supplies, MRI systems, laser therapy devices, industrial microwave equipment, microwave ovens, electrostatic precipitators, high-frequency induction heating, and RF equipment, etc. |
CL04 series 9-15KV 500mA high voltage diode
|
Type |
Rated Values |
Temp. Condition |
Electrical Characteristics |
Dimension |
||||||
|
VRRM |
IF(AV) |
IFSM |
IRSM |
Tj |
Tstg |
VF |
IR1 |
Trr |
φbody*L, φlead |
|
|
[IF=IF(AV] |
[VR=VRRM] |
|||||||||
|
KV |
mA |
A |
A |
℃ |
℃ |
V |
μA |
μS |
mm |
|
|
CL04-09 |
9 |
500 |
30 |
-- |
130 |
-40~+130 |
10 |
5 |
--- |
Φ7.5*22/Φ1.2 |
|
CL04-12 |
12 |
500 |
30 |
-- |
130 |
-40~+130 |
12 |
5 |
--- |
Φ7.5*22/Φ1.2 |
|
CL04-12A |
12 |
500 |
30 |
0.1 |
130 |
-40~+130 |
12 |
5 |
--- |
Φ7.5*22/Φ1.2 |
|
CL04-15 |
15 |
500 |
30 |
-- |
130 |
-40~+130 |
13 |
5 |
--- |
Φ7.5*22/Φ1.2 |
2CL45 series 9-16KV 500mA high voltage diode
|
Type |
Rated Values |
Temp. Condition |
Electrical Characteristics |
Dimension |
||||||
|
VRRM |
IF(AV) |
IFSM |
IRSM |
Tj |
Tstg |
VF |
IR1 |
Trr |
φbody*L, φlead |
|
|
[IF=IF(AV] |
[VR=VRRM] |
|||||||||
|
KV |
mA |
A |
A |
℃ |
℃ |
V |
μA |
μS |
mm |
|
|
2CL4509H |
9 |
500 |
30 |
0.1 |
130 |
-40~+130 |
10 |
5 |
--- |
Φ7.5*22/Φ1.2 |
|
2CL4512H |
12 |
500 |
30 |
0.1 |
130 |
-40~+130 |
12 |
5 |
--- |
Φ7.5*22/Φ1.2 |
|
2CL4516 |
16 |
500 |
30 |
-- |
130 |
-40~+130 |
12 |
5 |
--- |
Φ7.5*22/Φ1.2 |
|
2CL4509 |
9 |
500 |
30 |
-- |
130 |
-40~+130 |
9 |
5 |
--- |
Φ7.5*22/Φ1.2 |
|
2CL4512 |
12 |
500 |
30 |
-- |
130 |
-40~+130 |
11 |
5 |
--- |
Φ7.5*22/Φ1.2 |
RT45 series 9-16KV 450-750mA high voltage diode
|
Type |
Rated Values |
Temp. Condition |
Electrical Characteristics |
Dimension |
|||||
|
VRRM |
IF(AV) |
IFSM |
Tj |
Tstg |
VF |
IR1 |
VBR |
φbody*L, φlead |
|
|
[IF=IF(AV] |
[VR=VRRM] |
||||||||
|
KV |
mA |
A |
℃ |
℃ |
V |
μA |
KV |
mm |
|
|
RT4509 |
9 |
450 |
30 |
130 |
-40~+130 |
10 |
5 |
≥9.5 |
Φ7.5*22/Φ1.2 |
|
RT4510 |
10 |
450 |
30 |
130 |
-40~+130 |
10 |
5 |
≥12 |
Φ7.5*22/Φ1.2 |
|
RT4512H |
12 |
450 |
60 |
130 |
-40~+130 |
12 |
5 |
≥16.5 |
Φ7.5*22/Φ1.2 |
|
2CL15KV/550mA |
15 |
550 |
35 |
130 |
-40~+130 |
12 |
5 |
≥16.5 |
Φ7.5*22/Φ1.2 |
|
RT7516 |
16 |
750 |
60 |
130 |
-40~+130 |
10 |
5 |
≥16.5 |
Φ7.5*22/Φ1.2 |
-
![CL04-500mA Microwave HV Diode]()
CL04-500mA Microwave HV DiodeCL04 Series High Voltage Rectifier Diodes | 9kV–15kV 500mA Silicon HV Diode HVRTION for high-voltage power supplies, electrostatic equipment, laser power supplies, capacitor charging circuits,... -
![2CL45 Series HV Diode Microwave]()
2CL45 Series HV Diode MicrowaveHigh Voltage Fast Recovery Diode 2CL45 Series, 9kV–12kV High Voltage Silicon Rectifier Diode | 500mA Average Current | Fast Recovery High Voltage Diode -
![RT45 Series Microwave Oven HV Diode]()
RT45 Series Microwave Oven HV DiodeRT45 Series High Voltage Rectifier Diode RT4509 RT4510 RT4512H High Voltage Diode 9KV 10KV 12KV 500mA Fast Recovery Rectifier Diode Manufacturer -
![CL04-12 Microwave Diode]()
CL04-12 Microwave DiodeHigh voltage diode CL04-12, 12KV/500mA, microwave oven HV diode, Standard microwave ovens use high-voltage rectification; 187/250 terminals can be added upon customer request.Samples are available... -
![2CL15KV550mA HV Diode]()
2CL15KV550mA HV Diode2CL15KV550MA 15KV 550mA High Voltage Rectifier Diode Fast Recovery Silicon Diode HVRTION -
![T4512 Diode HV]()
T4512 Diode HVRT4512H 12KV 500mA High Voltage Diode Fast Recovery Silicon Rectifier for microwave oven application -
![Microwave Oven HV Diode]()
Microwave Oven HV DiodeCL04-12A 12kV 500mA High Voltage Rectifier Diode. Reliable High Voltage Silicon Diode for Microwave Ovens, High Voltage Power Supplies, Electrostatic Equipment and Industrial Rectification -
![High Voltage Diode Microwave]()
High Voltage Diode MicrowaveCL04-15 High Voltage Rectifier Diode, 15kV 500mA High Voltage Silicon Diode for Microwave Oven, Industrial Power Supply & High Voltage Rectification Applications -
![Microwave Oven High Voltage Diode]()
Microwave Oven High Voltage Diode2CL4509H High Voltage Diode | 9KV 450mA Microwave Oven Rectifier Diode
High Reliability 9kV High Voltage Silicon Diode for Microwave Magnetron Power Supply
2CL4509H is a 9KV 450mA... -
![High Voltage Diode in Microwave]()
High Voltage Diode in MicrowaveRT7516 16KV 750mA High Voltage Diode | High Current Silicon Rectifier Diode
RT7516 is a high voltage silicon rectifier diode rated at 16KV and 750mA with 60A surge current capability. It... -
![HV Diode Microwave]()
HV Diode MicrowaveRT4509 9KV 450mA High Voltage Rectifier Diode | Silicon High Voltage Diode for Microwave Oven, High Frequency Power Supply and Industrial Applications -

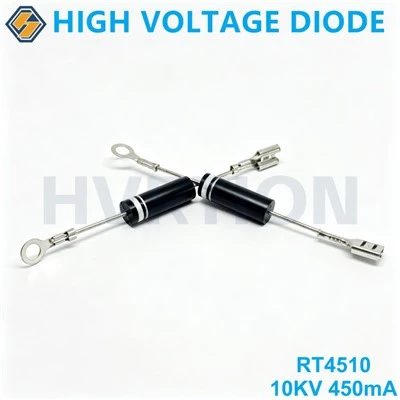

![Microwave HV Diode]()
Microwave HV DiodeRT4510 10KV 450mA High voltage Silicon Rectifier Diode | High Voltage Diode for Microwave Oven and Industrial Power Systems
RT4510 is a 10KV 450mA high voltage silicon rectifier diode...
