Fast Recovery High Voltage Diode——100mA 4-35KV 100nS
|
|
Feature: |
|
● Small size, low VF ● High reliability, high Tj ● High surge capability, fast Trr |
|
|
Application: |
|
|
X-ray power supplies, laser power supplies, voltage multiplier circuits, microwave transmitter power supplies, etc. |
2CL2F series 4-35KV 100nS
|
Type |
Rated Values |
Temp. Condition |
Electrical Characteristic |
Dimension |
|||||
|
VRRM |
IF(AV) |
IFSM |
Tj |
Tstg |
VF |
IR1 |
Trr |
φbody*L, φlead |
|
|
[IF=100mA] |
[VR=VRRM] |
||||||||
|
KV |
mA |
A |
℃ |
℃ |
V |
μA |
μS |
mm |
|
|
2CL2FD |
4 |
100 |
10 |
120 |
-40~+120 |
13 |
2 |
0.1 |
Φ4.2*15/Φ0.8 |
|
2CL2FE |
6 |
100 |
10 |
120 |
-40~+120 |
18 |
2 |
0.1 |
Φ4.2*15/Φ0.8 |
|
2CL2FF |
8 |
100 |
10 |
120 |
-40~+120 |
16 |
2 |
0.1 |
Φ4.2*15/Φ0.8 |
|
2CL2FG |
10 |
100 |
10 |
120 |
-40~+120 |
18 |
2 |
0.1 |
Φ4.2*15/Φ0.8 |
|
2CL2FH |
12 |
100 |
10 |
120 |
-40~+120 |
20 |
2 |
0.1 |
Φ4.2*15/Φ0.8 |
|
2CL2FJ |
15 |
100 |
10 |
120 |
-40~+120 |
24 |
2 |
0.1 |
Φ4.2*15/Φ0.8 |
|
2CL2FK |
10 |
100 |
10 |
120 |
-40~+120 |
22 |
2 |
0.1 |
Φ4.2*15/Φ0.8 |
|
2CL2FL |
15 |
100 |
10 |
120 |
-40~+120 |
26 |
2 |
0.1 |
Φ4.2*15/Φ0.8 |
|
2CL2FM |
20 |
100 |
10 |
120 |
-40~+120 |
35 |
2 |
0.1 |
Φ4.2*15/Φ0.8 |
|
2CL2FP |
30 |
100 |
10 |
120 |
-40~+120 |
45 |
2 |
0.1 |
Φ4.2*15/Φ0.8 |
|
2CL2FR |
35 |
100 |
10 |
120 |
-40~+120 |
50 |
2 |
0.1 |
Φ4.2*15/Φ0.8 |
RT10 series 10-30KV 100mA 100nS
|
Type |
Rated Values |
Temp. Condition |
Electrical Characteristic |
Dimension |
|||||
|
VRRM |
IF(AV) |
IFSM |
Tj |
Tstg |
VF |
IR1 |
Trr |
φbody*L, φlead |
|
|
[IF=100mA] |
[VR=VRRM] |
||||||||
|
KV |
mA |
A |
℃ |
℃ |
V |
μA |
μS |
mm |
|
|
RT1010 |
10 |
100 |
10 |
130 |
-40~+130 |
16 |
2 |
0.1 |
Φ4.2*15/Φ0.8 |
|
RT1015 |
15 |
100 |
10 |
130 |
-40~+130 |
27 |
2 |
0.1 |
Φ4.2*15/Φ0.8 |
|
RT1018 |
18 |
100 |
10 |
130 |
-40~+130 |
38 |
2 |
0.1 |
Φ4.2*15/Φ0.8 |
|
RT1020 |
20 |
100 |
10 |
130 |
-40~+130 |
40 |
2 |
0.1 |
Φ4.2*15/Φ0.8 |
|
RT1030 |
30 |
100 |
10 |
130 |
-40~+130 |
48 |
2 |
0.1 |
Φ4.2*15/Φ0.8 |
|
2CLG1015 |
15 |
100 |
10 |
130 |
-40~+130 |
35 |
2 |
0.1 |
Φ4.2*15/Φ0.8 |
|
SHV049 |
15 |
100 |
10 |
130 |
-40~+130 |
35 |
2 |
0.1 |
Φ4.2*15/Φ0.8 |
| RT0818 | 18 | 80 | 8 | 120 | -40~+120 | 40 | 2 | 0.1 | Φ3*12/Φ0.6 |
CL-03 series 14-20KV 100mA 100nS igh voltage diode
|
Type |
Rated Values |
Temp. Condition |
Electrical Characteristic |
Dimension |
|||||
|
VRRM |
IF(AV) |
IFSM |
Tj |
Tstg |
VF |
IR1 |
Trr |
φbody*L, φlead |
|
|
[IF=100mA] |
[VR=VRRM] |
||||||||
|
KV |
mA |
A |
℃ |
℃ |
V |
μA |
μS |
mm |
|
|
CL03-14C |
14 |
100 |
15 |
130 |
-40~+130 |
28 |
5 |
0.1 |
Φ4.5*15/Φ1.0 |
|
CL03-15C |
15 |
100 |
15 |
130 |
-40~+130 |
30 |
5 |
0.1 |
Φ4.5*15/Φ1.0 |
|
CL03-18C |
18 |
100 |
15 |
130 |
-40~+130 |
36 |
5 |
0.1 |
Φ4.5*15/Φ1.0 |
|
CL03-20 |
20 |
100 |
15 |
130 |
-40~+130 |
35 |
5 |
0.1 |
Φ4.5*15/Φ1.0 |
|
CL03-15 |
15 |
100 |
15 |
130 |
-40~+130 |
30 |
5 |
0.1 |
Φ7.5*22/Φ1.2 |
-
![2CL2F Series HV Diode]()
2CL2F Series HV Diode2CL2F Series 4–35KV 100mA 100nS High Voltage Fast Recovery Diode，High Voltage, Fast Switching, Ultra‑Low Leakage, Engineered for Demanding Power Systems -
![RT10 Series HV Diode]()
RT10 Series HV DiodeHigh Voltage Fast Recovery Diode Series 10kV–30kV 100mA 0.1µs | HV Rectifier Diode RT1010 RT1020 SHV049
High voltage fast recovery diode series including RT1010, RT1015, RT1018, RT1020,... -
![2CL2FP Diode]()
2CL2FP Diode2CL2FP High Voltage Diode 30KV 100mA 100nS Fast Recovery Rectifier Diode HVRTION 2CL2FP 30KV High Voltage Fast Recovery Diode Manufacturer & Supplier -
![2CL2FL Diode]()
2CL2FL Diode2CL2FL Fast Recovery High Voltage Diode | 15kV 100mA High Voltage Rectifier for high-voltage power supply systems, X-ray equipment, and pulse power applications. -
![2CL2FM High Voltage Diode]()
2CL2FM High Voltage Diode2CL2FM Fast Recovery High Voltage Diode (20kV)
The 2CL2FM Fast Recovery High Voltage Diode is a high-performance rectifier designed for high-voltage and high-frequency applications. It... -
![CL03 Series HV Diode]()
CL03 Series HV DiodeCL03 Series 14KV-20KV 100mA 100ns High Voltage Fast Recovery Diodes Low Leakage, Fast Switching – Optimized for Dense Power Systems, HVRTION, high voltage rectifier -
![High Voltage Rectifier]()
High Voltage RectifierCL03-15C High Voltage Diode 15KV 100mA Fast Recovery Rectifier Diode HVRTION 100nS HV diode for X-ray generator, high-voltage power supplies, electrostatic equipment, medical devices, laser systems. -
![High Voltage Rectifier Diode]()

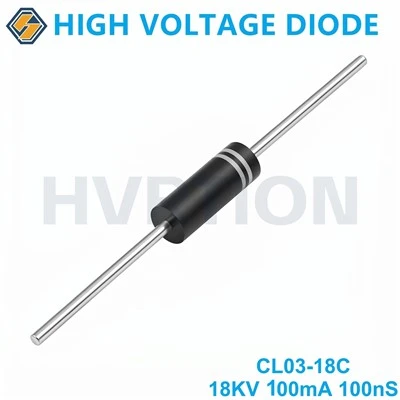

High Voltage Rectifier DiodeCL03-18C Fast Recovery High Voltage Diode, 18kV 100mA High Voltage Rectifier Diode for X-Ray
Equipment, Pulse Power Supply & High Voltage Applications
Product Model:... -
![HV Fast Recovery Diode]()
HV Fast Recovery DiodeCL03-20 High Voltage Fast Recovery Diode 20KV, 100mA, 100ns, 20KV diode, 100mA high voltage diode, 100ns fast recovery diode, HVRTION, 20KV fast rectifier, high voltage axial diode -
![CL03-15 High Voltage Diode]()

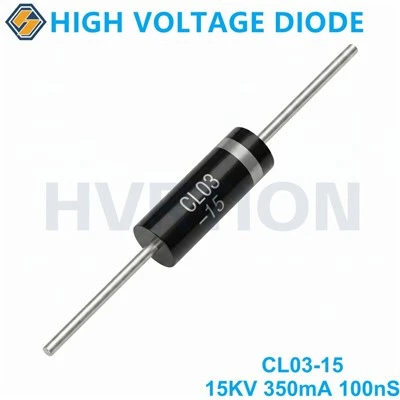

CL03-15 High Voltage DiodeCL03-15 High Voltage Diode 15KV 350mA 100nS Fast Recovery Rectifier Diode for high-voltage power supplies, electrostatic equipment, medical devices, laser systems, X-ray generators, pulse...
