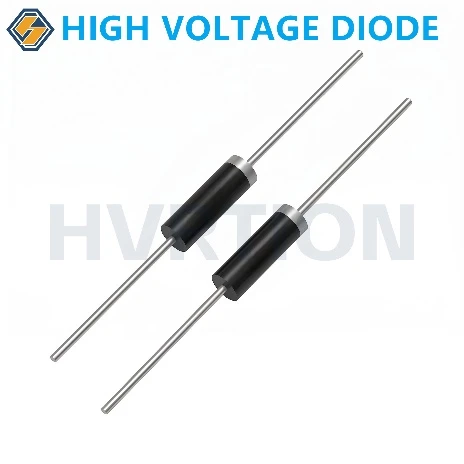

Ultra-Fast High Voltage Diode——60nS 150-450mA 8-30KV
|
|
Feature: |
|
● Small size, low VF ● High reliability, high Tj ● High surge capability, fast Trr |
|
|
Use: |
|
|
FBT, negative ion generators, ozone power supplies, copiers, medical and computer cathode ray tubes, laser ower supplies, voltage multiplier circuits, electrostatic flocking, electrostatic spraying, CO₂ power supply, etc. |
HV37 series 150-450mA 8-30KV 60nS High Voltage Diode
|
Type |
Rated Values |
Temp. Condition |
Electrical Characteristics |
Dimension |
|||||
|
VRRM |
IF(AV) |
IFSM |
Tj |
Tstg |
VF |
IR1 |
Trr |
(Φbody*L, Φlead) |
|
|
[IF=IF(AV)] |
[VR=VRRM] |
||||||||
|
KV |
mA |
A |
℃ |
℃ |
V |
μA |
μS |
mm |
|
|
HV37-08F |
8 |
450 |
30 |
150 |
-55~160 |
15 |
2 |
0.06 |
Φ4.2*15/Φ0.8 |
|
HV37-10F |
10 |
400 |
30 |
150 |
-55~160 |
18 |
2 |
0.06 |
Φ4.2*15/Φ0.8 |
|
HV37-12F |
12 |
350 |
30 |
150 |
-55~160 |
21 |
2 |
0.06 |
Φ4.2*15/Φ0.8 |
|
HV37-15F |
15 |
300 |
30 |
150 |
-55~160 |
25 |
2 |
0.06 |
Φ4.2*15/Φ0.8 |
|
HV37-20F |
20 |
200 |
30 |
150 |
-55~160 |
30 |
2 |
0.06 |
Φ4.2*15/Φ0.8 |
|
HV37-30F |
30 |
150 |
30 |
150 |
-55~160 |
36 |
2 |
0.06 |
Φ4.2*15/Φ0.8 |
UFH series 200-500mA 8-20KV 60nS High Voltage Diode
|
Type |
Rated Values |
Temp. Condition |
Electrical Characteristics |
Dimension |
|||||
|
VRRM |
IF(AV) |
IFSM |
Tj |
Tstg |
VF |
IR1 |
Trr |
(Φbody*L, Φlead) |
|
|
[IF=IF(AV)] |
[VR=VRRM] |
||||||||
|
KV |
mA |
A |
℃ |
℃ |
V |
μA |
μS |
mm |
|
|
UFH08 |
8 |
500 |
30 |
150 |
-55~160 |
15 |
2 |
0.06 |
Φ4.2*15/Φ0.8 |
|
UFH10 |
10 |
450 |
30 |
150 |
-55~160 |
18 |
2 |
0.06 |
Φ4.2*15/Φ0.8 |
|
UFH12 |
12 |
400 |
30 |
150 |
-55~160 |
21 |
2 |
0.06 |
Φ4.2*15/Φ0.8 |
|
UFM15 |
15 |
300 |
30 |
150 |
-55~160 |
25 |
2 |
0.06 |
Φ4.2*15/Φ0.8 |
|
UFH20 |
20 |
200 |
30 |
150 |
-55~160 |
30 |
2 |
0.06 |
Φ4.2*15/Φ0.8 |
-

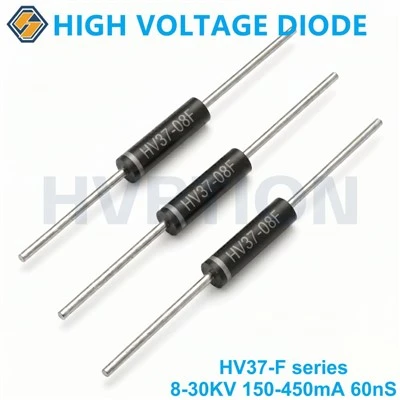

![HV37-F Ultra-fast HV Diode]()
HV37-F Ultra-fast HV DiodeHV37-F Series Ultra-Fast High Voltage Diode 8kV–30kV 150–450mA 60ns High Voltage Fast Recovery Rectifier Diode HVRTION Manufacturer
The HV37-F Series Ultra-Fast High Voltage Diodes are... -
![UFH Ultra Fast Recovery Diode]()
UFH Ultra Fast Recovery DiodeUFH Series fast recovery high voltage diodes feature reverse voltage from 8kV to 20kV, reverse recovery time of only 60ns, low leakage current and excellent switching performance for high... -

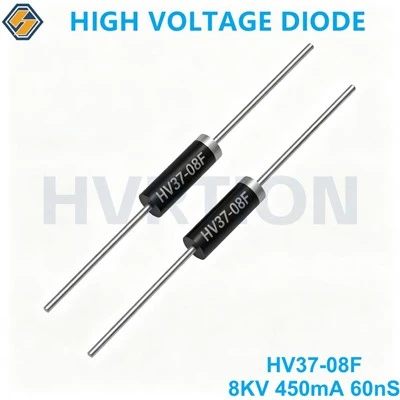

![Super Fast HV Diode]()
Super Fast HV DiodeHV37-08F Ultra-Fast High Voltage Diode 8kV 450mA 60ns High Voltage Fast Recovery Rectifier Diode HVRTION -

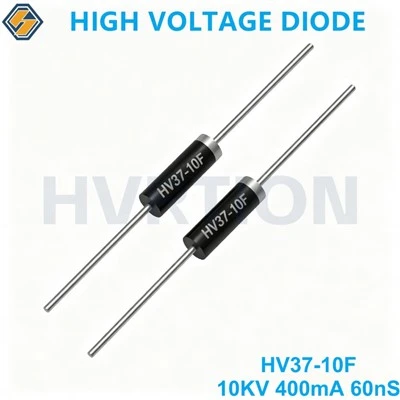

![High Voltage Switching Diode]()
