High Voltage Capacitor for High Frequency Machine
|
Type |
Rated Capacitance/ PF |
Rated Voltage/ KV |
Dielectric Materials |
Capacitance Deviation/ % |
Temp. coefficient |
Temp. Range |
Dimension |
||||
|
D±2 |
H±2 |
T±1 |
d |
Drawing |
|||||||
|
(mm) |
(mm) |
(mm) |
|||||||||
|
DT60/150PK |
150 |
12 |
ceramic |
±10 |
U2J |
-25~+85 |
60 |
30 |
16 |
M6 |
|
|
DT60/200PK |
200 |
12 |
ceramic |
±10 |
U2J |
-25~+85 |
60 |
30 |
16 |
M6 |
|
|
DT60/300PK |
300 |
15 |
ceramic |
±10 |
U2J |
-25~+85 |
60 |
30 |
16 |
M6 |
|
|
DT60/500PK |
500 |
15 |
ceramic |
±10 |
U2J |
-25~+85 |
60 |
30 |
16 |
M6 |
|
|
DT80/300PK |
300 |
15 |
ceramic |
±10 |
U2J |
-25~+85 |
80 |
30 |
17 |
M6 |
|
|
DT80/500PK |
500 |
15 |
ceramic |
±10 |
U2J |
-25~+85 |
80 |
30 |
17 |
M6 |
|
|
Type |
Rated Capacitance/ PF |
Rated Voltage/ KV |
Dielectric Materials |
Capacitance Deviation/ % |
Temp. coefficient |
Temp. Range |
D±2 |
H±2 |
d |
Drawing |
|
|
(mm) |
(mm) |
(mm) |
|||||||||
|
U10KV/101K |
100 |
10 |
ceramic |
±10 |
U2J |
-25~+85 |
40 |
30 |
M6 |
|
|
|
U10KV/201K |
200 |
10 |
ceramic |
±10 |
U2J |
-25~+85 |
37 |
30 |
M6 |
||
|
U15KV/501K |
500 |
15 |
ceramic |
±10 |
U2J |
-25~+85 |
48 |
28 |
M6 |
||
|
Type |
Rated Capacitance/ PF |
Rated Voltage/ KV |
Dielectric Materials |
Capacitance Deviation/ % |
Temp. coefficient |
Temp. Range |
L±2 |
H±2 |
D±1 |
d |
Drawing |
|
(mm) |
(mm) |
(mm) |
|||||||||
|
3KV/102 |
1000 |
3 |
Y5P |
±10 |
Y5P(B) |
-25~+85 |
8 |
5 |
20 |
10 |
|
|
3KV/202 |
2000 |
3 |
Y5P |
±10 |
Y5P(B) |
-25~+85 |
8 |
5 |
20 |
10 |
|
|
6KV/222 |
2200 |
6 |
Y5P |
±10 |
Y5P(B) |
-25~+85 |
8 |
5 |
27 |
10 |
|
|
10KV/202 |
2000 |
10 |
Y5P |
±10 |
Y5P(B) |
-25~+85 |
10 |
5 |
40 |
20 |
|
|
SL3KV/152K |
1500 |
3 |
ceramic |
±10 |
SL |
-25~+85 |
6.5 |
3.5 |
40 |
20 |
|
-
![DT High Frequency Capacitor]()
DT High Frequency CapacitorDT Series High Voltage Ceramic Capacitor | 12KV-15KV High Frequency Resonant Capacitor for Heating Machine
DT Series high voltage ceramic capacitors are designed for high frequency... -

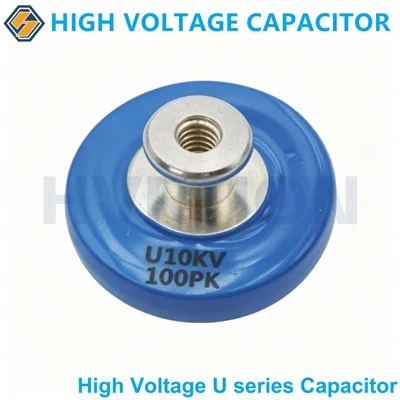

![RF Resonant Disc Capacitor]()
RF Resonant Disc CapacitorU2J High Frequency High Voltage Ceramic Capacitor, High Voltage Capacitor for High Frequency Heating Machine & RF Power Equipment -

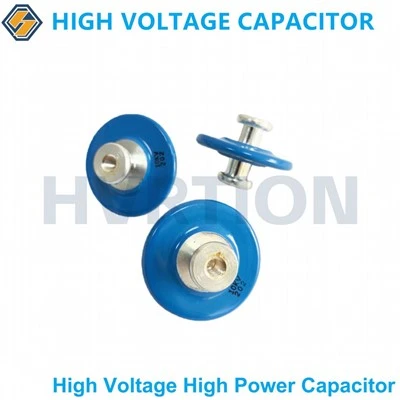

![High Power RF Ceramic Capacitor]()
High Power RF Ceramic CapacitorHigh Voltage Ceramic Capacitor for High Frequency Machine 3kV 6kV 10kV Y5P SL High Voltage Disc Ceramic Capacitor
High voltage ceramic capacitor for high frequency machines, available in...
As one of the most professional high freuency resonant ceramic capacitor manufacturers and suppliers in China, we're featured by quality products and good price. Please rest assured to buy discount high freuency resonant ceramic capacitor for sale here and get quotation from our factory. We also accept customized orders.
