Surface Mount High Voltage Diode——3-8KV 40-500mA 50-100nS
|
|
Feature: |
|
● High voltage rating and low leakage current ● Fast recovery capability ● Compact surface-mount design |
|
|
Application: |
|
|
X-ray machines, CT scanners, DR systems, AEDs, MRI systems, industrial microwave equipment, non-destructive testing equipment, electrostatic flocking, high-voltage generators, capacitor charging power supplies (CCPS), aerospace, military/radar, nuclear irradiation, particle detectors, pulsed power systems, etc. |
|
Type |
Rated Values |
Temp. Condition |
Electrical Characteristics |
Dimension |
|||||
|
VRRM |
IF(AV) |
IFSM |
Tj |
Tstg |
VF |
IR1 |
Trr |
||
|
[VR=VRRM] |
|||||||||
|
KV |
mA |
A |
℃ |
℃ |
V |
μA |
μS |
||
|
SP3L |
3 |
500 |
15 |
130 |
-55~160 |
12 |
2 |
0.1 |
Fig.1 |
|
SP3LG |
3 |
500 |
15 |
130 |
-55~160 |
12..0 |
2 |
0.1 |
Fig.2 |
|
SP5L |
5 |
270 |
10 |
130 |
-55~160 |
14 |
2 |
0.1 |
Fig.1 |
|
SP5LG |
5 |
270 |
10 |
130 |
-55~160 |
14 |
2 |
0.1 |
Fig.2 |
|
SP8L |
8 |
200 |
10 |
130 |
-55~160 |
16 |
2 |
0.1 |
Fig.1 |
|
SP8LG |
8 |
200 |
10 |
130 |
-55~160 |
16 |
2 |
0.1 |
Fig.2 |
|
SP5S |
5 |
50 |
1 |
130 |
-55~160 |
14 |
0.5 |
0.1 |
Fig.1 |
|
SP5SG |
5 |
50 |
1 |
130 |
-55~160 |
14 |
0.5 |
0.1 |
Fig.2 |
|
SP8SG |
8 |
40 |
1 |
130 |
-55~160 |
16 |
0.5 |
0.1 |
Fig.2 |
|
SP5LF |
5 |
270 |
10 |
130 |
-55~160 |
14 |
2 |
0.05 |
Fig.1 |
|
SP5LFG |
5 |
270 |
10 |
130 |
-55~160 |
14 |
2 |
0.05 |
Fig.2 |

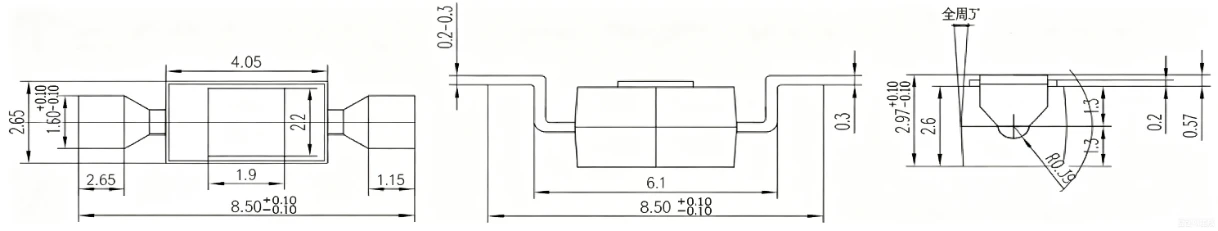

Fig.1

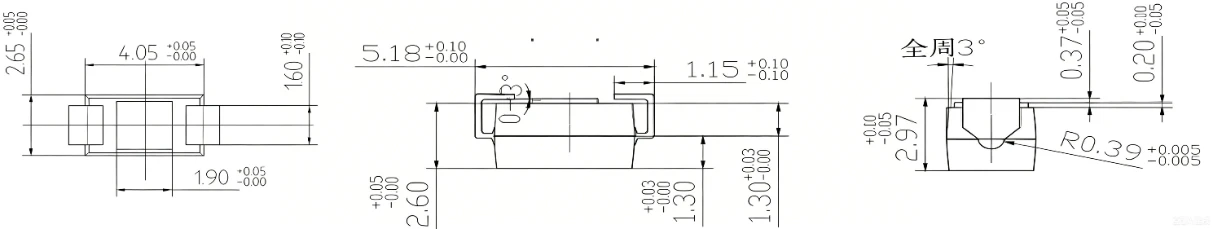

Fig.2
Surface Mount High Voltage Diode——10-20KV 10-100mA 100nS
|
|
Feature: |
|
● High voltage rating and low leakage current ● Fast recovery capability ● Compact surface-mount design |
|
|
Application: |
|
|
X-ray machines, CT scanners, DR systems, AEDs, MRI systems, industrial microwave equipment, non-destructive testing equipment, electrostatic flocking, high-voltage generators, capacitor charging power supplies (CCPS), aerospace, military/radar, nuclear irradiation, particle detectors, pulsed power systems |
|
Type |
Rated Values |
Temp. Condition |
Electrical Characteristics |
Dimension |
||||||
|
VRRM |
IF(AV) |
IFSM |
Tj |
Tstg |
VF |
IR1 |
Trr |
|||
|
[VR=VRRM] |
||||||||||
|
KV |
mA |
A |
℃ |
℃ |
V |
μA |
μS |
|||
|
SPF01-10 |
10 |
10 |
1 |
130 |
-55~160 |
21 |
0.5 |
0.1 |
Fig.3 |
|
|
SPF01-12 |
12 |
10 |
1 |
130 |
-55~160 |
25 |
0.5 |
0.1 |
Fig.3 |
|
|
SPF01-15 |
15 |
10 |
1 |
130 |
-55~160 |
29 |
0.5 |
0.1 |
Fig.3 |
|
|
SPF01-20 |
20 |
10 |
1 |
130 |
-55~160 |
35 |
0.5 |
0.1 |
Fig.3 |
|
|
SPF02-10 |
10 |
20 |
2 |
130 |
-55~160 |
21 |
0.5 |
0.1 |
Fig.3 |
|
|
SPF02-12 |
12 |
20 |
2 |
130 |
-55~160 |
25 |
0.5 |
0.1 |
Fig.3 |
|
|
SPF02-15 |
15 |
20 |
2 |
130 |
-55~160 |
29 |
0.5 |
0.1 |
Fig.3 |
|
|
SPF02-20 |
20 |
20 |
2 |
130 |
-55~160 |
35 |
0.5 |
0.1 |
Fig.3 |
|
|
SPF03-10 |
10 |
30 |
3 |
130 |
-55~160 |
21 |
0.5 |
0.1 |
Fig.3 |
|
|
SPF03-12 |
12 |
30 |
3 |
130 |
-55~160 |
25 |
0.5 |
0.1 |
Fig.3 |
|
|
SPF03-15 |
15 |
30 |
3 |
130 |
-55~160 |
29 |
0.5 |
0.1 |
Fig.3 |
|
|
SPF03-20 |
20 |
30 |
3 |
130 |
-55~160 |
35 |
0.5 |
0.1 |
Fig.3 |
|
|
SPF05-10 |
10 |
50 |
5 |
130 |
-55~160 |
21 |
0.5 |
0.1 |
Fig.3 |
|
|
SPF05-12 |
12 |
50 |
5 |
130 |
-55~160 |
25 |
0.5 |
0.1 |
Fig.3 |
|
|
SPF05-15 |
15 |
50 |
5 |
130 |
-55~160 |
29 |
0.5 |
0.1 |
Fig.3 |
|
|
SPF05-20 |
20 |
50 |
5 |
130 |
-55~160 |
35 |
0.5 |
0.1 |
Fig.3 |
|
|
SPF10-10 |
10 |
100 |
10 |
130 |
-55~160 |
21 |
0.5 |
0.1 |
Fig.3 |
|
|
SPF10-12 |
12 |
100 |
10 |
130 |
-55~160 |
25 |
0.5 |
0.1 |
Fig.3 |
|
|
SPF10-15 |
15 |
100 |
10 |
130 |
-55~160 |
29 |
0.5 |
0.1 |
Fig.3 |
|
|
SPF10-20 |
20 |
100 |
10 |
130 |
-55~160 |
35 |
0.5 |
0.1 |
Fig.3 |
|

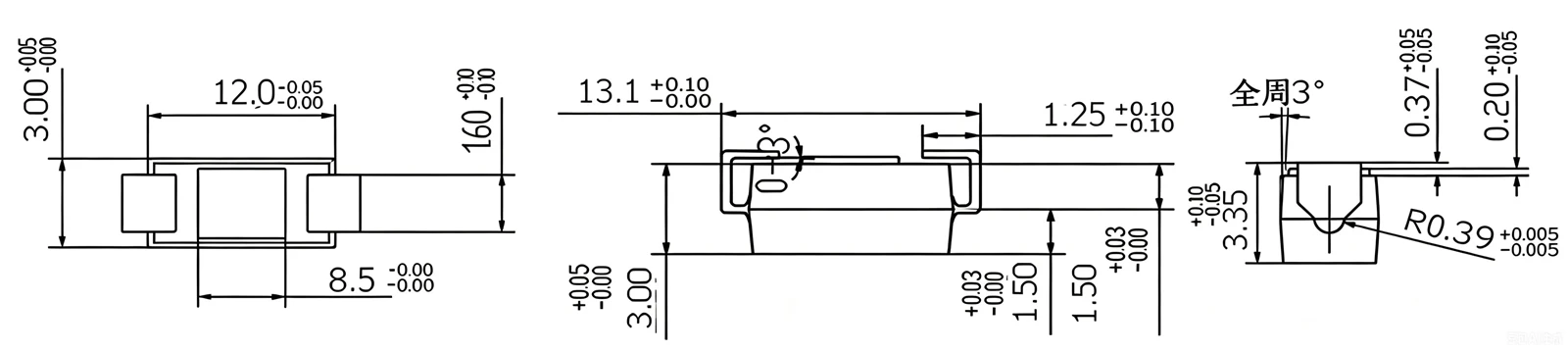

Fig.3
SPU series 5-15KV 250-450mA 50nS surface mount diode
|
Type No. |
Repetitive Peak Reverse Voltage |
Avg. Forward Current Max |
Forward Voltage
|
Maximum surge current |
Max. D.C.reverse current |
Reverse Recovery Time |
Storage Temperature. |
Dimension |
|
|
VRRM |
IF(AV) |
VFM |
IFSM |
IRM (μA) |
Trr |
Tstg |
|||
|
KV |
mA |
V |
A |
Ta=25℃ |
Ta=100℃ |
nS |
℃ |
mm |
|
|
SPU05 |
5 |
450 |
9 |
20 |
2 |
10 |
50 |
-55 to 160 |
Fig.3 |
|
SPU08 |
8 |
450 |
11 |
20 |
2 |
10 |
50 |
-55 to 160 |
Fig.3 |
|
SPU10 |
10 |
250 |
15 |
15 |
2 |
10 |
50 |
-55 to 160 |
Fig.3 |
|
SPU15 |
15 |
250 |
17 |
15 |
2 |
10 |
50 |
-55 to 160 |
Fig.3 |
|
SPU05G |
5 |
450 |
9 |
15 |
2 |
10 |
50 |
-55 to 160 |
Fig.3 |
|
SPU08G |
8 |
450 |
11 |
15 |
2 |
10 |
50 |
-55 to 160 |
Fig.3 |
|
SPU10G |
10 |
250 |
15 |
15 |
2 |
10 |
50 |
-55 to 160 |
Fig.3 |
|
SPU15G |
15 |
250 |
17 |
15 |
2 |
10 |
50 |
-55 to 160 |
Fig.3 |
SMT series 8-20KV 10-100mA 75nS Surface Mount Diode
|
Type No. |
Repetitive Peak Reverse Voltage |
Avg. Forward Current Max |
Forward Voltage |
Maximum surge current |
Max. D.C.reverse current |
Reverse Recovery Time |
Storage Temperature. |
Dimension |
|
|
VRRM |
IF(AV) |
VFM |
IFSM |
IRM (μA) |
Trr |
Tstg |
|||
|
KV |
mA |
V |
A |
Ta=25℃ |
Ta=100℃ |
nS |
℃ |
mm |
|
|
SMT08 |
8 |
10 |
25 |
10 |
0.1 |
10 |
75 |
-55 to 160 |
Fig.1 |
|
SMT01-10 |
10 |
10 |
21 |
1 |
0.5 |
5 |
75 |
-55 to 160 |
Fig.3 |
|
SMT01-12 |
12 |
10 |
25 |
1 |
0.5 |
5 |
75 |
-55 to 160 |
Fig.3 |
|
SMT01-15 |
15 |
10 |
29 |
1 |
0.5 |
5 |
75 |
-55 to 160 |
Fig.3 |
|
SMT01-20 |
20 |
10 |
35 |
1 |
0.5 |
5 |
75 |
-55 to 160 |
Fig.3 |
|
SMT02-10 |
10 |
20 |
21 |
2 |
0.5 |
5 |
75 |
-55 to 160 |
Fig.3 |
|
SMT02-12 |
12 |
20 |
25 |
2 |
0.5 |
5 |
75 |
-55 to 160 |
Fig.3 |
|
SMT02-15 |
15 |
20 |
29 |
2 |
0.5 |
5 |
75 |
-55 to 160 |
Fig.3 |
|
SMT02-20 |
20 |
20 |
35 |
2 |
0.5 |
5 |
75 |
-55 to 160 |
Fig.3 |
|
SMT03-10 |
10 |
30 |
21 |
3 |
0.5 |
5 |
75 |
-55 to 160 |
Fig.3 |
|
SMT03-12 |
12 |
30 |
25 |
3 |
0.5 |
5 |
75 |
-55 to 160 |
Fig.3 |
|
SMT03-15 |
15 |
30 |
29 |
3 |
0.5 |
5 |
75 |
-55 to 160 |
Fig.3 |
|
SMT03-20 |
20 |
30 |
35 |
3 |
0.5 |
5 |
75 |
-55 to 160 |
Fig.3 |
|
SMT08-50 |
8 |
50 |
15 |
10 |
0.1 |
10 |
75 |
-55 to 160 |
Fig.1 |
|
SMT05-10 |
10 |
50 |
21 |
5 |
0.5 |
5 |
75 |
-55 to 160 |
Fig.3 |
|
SMT05-12 |
12 |
50 |
25 |
5 |
0.5 |
5 |
75 |
-55 to 160 |
Fig.3 |
|
SMT05-15 |
15 |
50 |
29 |
5 |
0.5 |
5 |
75 |
-55 to 160 |
Fig.3 |
|
SMT05-20 |
20 |
50 |
35 |
5 |
0.5 |
5 |
75 |
-55 to 160 |
Fig.3 |
|
SMT10-10 |
10 |
100 |
21 |
10 |
0.5 |
5 |
75 |
-55 to 160 |
Fig.3 |
|
SMT10-12 |
12 |
100 |
25 |
10 |
0.5 |
5 |
75 |
-55 to 160 |
Fig.3 |
|
SMT10-15 |
15 |
100 |
29 |
10 |
0.5 |
5 |
75 |
-55 to 160 |
Fig.3 |
|
SMT10-20 |
20 |
100 |
35 |
10 |
0.5 |
5 |
75 |
-55 to 160 |
Fig.3 |
-
![SPU Series SMA Diode 50nS]()
SPU Series SMA Diode 50nSSPU Series surface mount high voltage rectifier diodes offer 5kV–15kV VRRM, 250–450mA forward current and 50ns fast recovery for compact high-voltage and high-frequency circuits. -
![SP Series Surface Mount HV Diode]()
SP Series Surface Mount HV DiodeSurface Mount High Voltage Diode SP Series 3kV–8kV / 40–500mA Fast Recovery 50–100ns High Voltage SMD Rectifier Diode for X-Ray, CT, MRI, Industrial Power & Pulse Applications -
![SPF Series High Voltage SMTD]()
SPF Series High Voltage SMTDSPF Series SMD High Voltage Diode, Surface Mount High Voltage Rectifier Diode | 10kV–20kV High Voltage SMD Diode | 10mA–100mA Fast Recovery Rectifier Diode
SPF Series is a high voltage... -
![SMT Series SMT HV Diode 75nS]()
SMT Series SMT HV Diode 75nSSMT Series Surface Mount High Voltage Diodes (8kV–20kV, 10–100mA, 75ns) Fast Recovery Surface Mount High Voltage Rectifier Diodes
The SMT Series Surface Mount High Voltage Diodes are... -
![SP3L High Voltage Diode]()
SP3L High Voltage DiodeSP3L High Voltage SMD Diode Product, 3KV 500mA Fast Recovery High Voltage Rectifier Diode
SP3L is a compact 3kV high voltage SMD diode designed for applications requiring high current... -
![SP5L High Voltage Diode]()
SP5L High Voltage DiodeSP5L 5KV 270mA Fast Recovery Surface Mount High Voltage Diode
SP5L is a 5kV high voltage surface mount rectifier diode designed for high-voltage power conversion and pulse... -
![Surface Mount HV Diode]()
Surface Mount HV DiodeSP3LG High Voltage SMD Diode SP3LG 3KV 500mA Gullwing High Voltage Rectifier Diode
SP3LG is a 3kV 500mA gullwing surface mount high voltage diode designed for compact high-power PCB... -
![High Voltage Surface Mount Diode]()
High Voltage Surface Mount DiodeSP5LG High Voltage SMD Diode, SP5LG 5KV 270mA Gullwing Surface Mount High Voltage Diode
SP5LG is the gullwing package version of the SP5L high voltage diode.
The gullwing lead... -
![SPF01-15 Surface Mount Diode]()
SPF01-15 Surface Mount DiodeHigh Voltage Surface-Mount Diode SPF01-15, SP Series High Voltage Surface-Mount Diodes, Fast Recovery SMD Diodes, ultra-fast 0.1μs recovery time, low leakage current ,engineered for reliability,... -
![High Voltage SMD 15KV 100mA]()
High Voltage SMD 15KV 100mASPF10-15 High Voltage SMD Diode, 15kV 100mA Surface Mount High Power High Voltage Rectifier Diode for industrial high voltage power conversion applications.
Compared with SPF01 series,...
