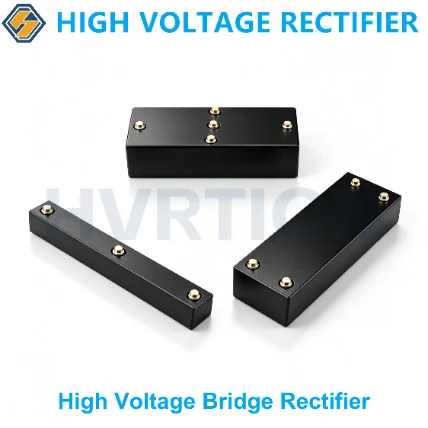

High Voltage Bridge Rectifier ——Half, Full, Three-Phase Rectifier Bridge
|
|
Feature: |
|
|
● High avalanche breakdown voltage ● Superior high-temperature performance ● Customizable dimensions |
||
|
Application: |
||
|
Electrostatic dust removal, electrostatic spraying, air purification, ozone generators, dehydration in the petroleum and chemical industries, X-ray machines, laser medical power supplies, etc. |
||
High Votlage Half Bridge Rectifier
|
Type No. |
Rated Values |
Temp. Condition |
Electrical Characteristics |
|||||
|
VRRM |
IF(AV) |
IFSM |
Tj |
Tstg |
VF |
IR1 |
Trr |
|
|
[VR=VRRM] |
||||||||
|
KV |
A |
A |
℃ |
℃ |
V |
μA |
μS |
|
|
HDQL 10~300kV / 0.5A |
10 ~ 300 |
0.5 |
10 |
150 |
-40~150 |
11 ~ 330 |
5 |
-- |
|
HDQL 10~100kV / 1.0 A |
10 ~ 100 |
1.0 |
20 |
150 |
-40~150 |
11 ~110 |
5 |
-- |
|
HDQL 10~100kV / 3.0 A |
10 ~ 100 |
3.0 |
60 |
150 |
-40~150 |
11~ 110 |
5 |
-- |
|
HDQL 10~100kV / 5.0 A |
10 ~ 100 |
5.0 |
100 |
150 |
-40~150 |
11~ 110 |
5 |
-- |
|
HDQL 10~50kV / 10 A |
10 ~ 50 |
10.0 |
200 |
150 |
-40~150 |
11~55 |
5 |
-- |
|
HDQLG 10~300kV / 0.1A |
10 ~ 300 |
0.1 |
2 |
150 |
-40~150 |
17 ~ 510 |
5 |
0.1 |
|
HDQLG 10~300kV / 0.5 A |
10 ~ 300 |
0.5 |
10 |
150 |
-40~150 |
17 ~ 510 |
5 |
0.1 |
|
HDQLG10~100kV / 1.0A |
10 ~ 100 |
1.0 |
20 |
150 |
-40~150 |
17 ~ 170 |
5 |
0.1 |
|
HDQLG10~100kV / 3.0A |
10 ~ 100 |
3.0 |
60 |
150 |
-40~150 |
17 ~ 170 |
5 |
0.1 |
|
HDQLG10~100kV / 5.0A |
10 ~ 100 |
5.0 |
100 |
150 |
-40~150 |
17 ~ 170 |
5 |
0.1 |
|
HDQLG10~50kV / 10.0A |
10 ~ 50 |
10.0 |
200 |
150 |
-40~150 |
17 ~ 85 |
5 |
0.1 |
High Volage Full Bridge Rectifier
|
Type No. |
Rated Values |
Temp. Condition |
Electrical Characteristics |
|||||
|
VRRM |
IF(AV) |
IFSM |
Tj |
Tstg |
VF |
IR1 |
Trr |
|
|
[VR=VRRM] |
||||||||
|
KV |
A |
A |
℃ |
℃ |
V |
μA |
μS |
|
|
QL 10~100kV / 0.5A |
10~100 |
0.5 |
10 |
150 |
-40~150 |
11~110 |
5 |
-- |
|
QL 10~50kV / 1.0A |
10~50 |
1.0 |
20 |
150 |
-40~150 |
11~55 |
5 |
-- |
|
QL 10~50kV / 3.0A |
10~50 |
3.0 |
60 |
150 |
-40~150 |
11~55 |
5 |
-- |
|
QL 10~50kV / 5.0A |
10~50 |
5.0 |
100 |
150 |
-40~150 |
11~55 |
5 |
-- |
|
QLG10~100kV / 0.1A |
10~100 |
0.1 |
2 |
150 |
-40~150 |
17~170 |
5 |
0.1 |
|
QLG10~100kV / 0.5A |
10~100 |
0.5 |
10 |
150 |
-40~150 |
17~170 |
5 |
0.1 |
|
QLG10~50kV / 1.0A |
10~50 |
1.0 |
20 |
150 |
-40~150 |
17~85 |
5 |
0.1 |
|
QLG10~50kV / 3.0A |
10~50 |
3.0 |
60 |
150 |
-40~150 |
17~85 |
5 |
0.1 |
|
QLG10~50kV / 5.0A |
10~50 |
5.0 |
100 |
150 |
-40~150 |
17~85 |
5 |
0.1 |
Three-Phase High Voltage Rectifier Bridge
|
Type No. |
Rated Values |
Temp. Condition |
Electrical Characteristics |
|||||
|
VRRM |
IF(AV) |
IFSM |
Tj |
Tstg |
VF |
IR1 |
Trr |
|
|
[VR=VRRM] |
||||||||
|
KV |
A |
A |
℃ |
℃ |
V |
μA |
μS |
|
|
3QL 10~50kV / 0.5A |
10 ~ 50 |
0.5 |
10 |
150 |
-40~150 |
11~ 55 |
5 |
-- |
|
3QL 10~30kV / 1.0A |
10 ~ 30 |
1.0 |
20 |
150 |
-40~150 |
11 ~ 33 |
5 |
-- |
|
3QL 10~30kV / 3.0A |
10 ~ 30 |
3.0 |
60 |
150 |
-40~150 |
11 ~ 33 |
5 |
-- |
|
3QL 10~30kV / 5.0A |
10 ~ 30 |
5.0 |
100 |
150 |
-40~150 |
11 ~ 33 |
5 |
-- |
|
3QLG 10~50kV / 0.1A |
10 ~ 50 |
0.1 |
2 |
150 |
-40~150 |
11~ 55 |
5 |
0.1 |
|
3QLG10~50kV / 0.5A |
10 ~ 50 |
0.5 |
10 |
150 |
-40~150 |
17~85 |
5 |
0.1 |
|
3QLG10~30kV / 1.0A |
10 ~ 30 |
1.0 |
20 |
150 |
-40~150 |
17~85 |
5 |
0.1 |
|
3QLG10~30kV / 3.0A |
10 ~ 30 |
3.0 |
60 |
150 |
-40~150 |
17~85 |
5 |
0.1 |
|
3QLG10~30kV / 5.0A |
10 ~ 30 |
5.0 |
100 |
150 |
-40~150 |
17~85 |
5 |
0.1 |
-
