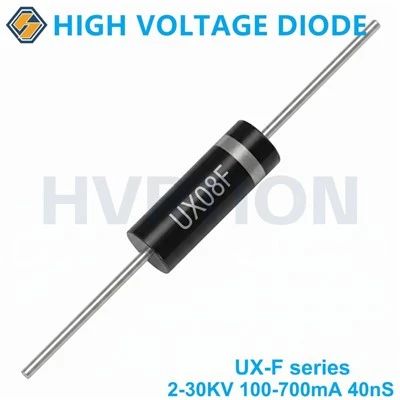

40nS High Voltage Diode

Feature:

● Small size, low VF

● High reliability, high Tj

● High surge capability, fast Trr

Appliction:

X-ray generators/CT scanners, medical lasers, MRI scanners, electrostatic precipitators, air purifiers, electrostatic flocking/spraying, pulsed power systems, laser power supplies, particle accelerators, electron beam welding, high-voltage generators. voltage multiplier circuits, etc.

Type

Rated Values

Temp. Condition

Electrical Characteristics
[Ta=25℃, all are maximum values]

Dimension

VRRM

IF(AV)

IFSM

Tj

Tstg

VFM

IR1

Trr

φbody*L, φlead

[IF=IF(AV)]

[VR=VRRM]

KV

mA

A

℃

℃

V

μA

μS

mm

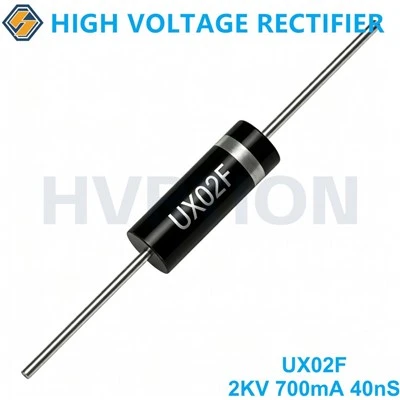

UX02F

2

700

30

130

-55~160

4

2

0.04

Φ4.2*15/Φ0.8
Φ7.5*22/Φ1.2

UX04F

4

450

30

130

-55~160

6

2

0.04

Φ4.2*15/Φ0.8
Φ7.5*22/Φ1.2

UX06F

6

350

30

130

-55~160

8

2

0.04

Φ4.2*15/Φ0.8
Φ7.5*22/Φ1.2

UX08F

8

350

30

130

-55~160

9

2

0.04

Φ4.2*15/Φ0.8
Φ7.5*22/Φ1.2

UX10F

10

350

30

130

-55~160

12

2

0.04

Φ4.2*15/Φ0.8
Φ7.5*22/Φ1.2

UX12F

12

350

30

130

-55~160

13

2

0.04

Φ4.2*15/Φ0.8
Φ7.5*22/Φ1.2

UX16F

16

200

30

130

-55~160

18

2

0.04

Φ4.2*15/Φ0.8
Φ7.5*22/Φ1.2

UX20F

20

200

30

130

-55~160

23

2

0.04

Φ4.2*15/Φ0.8
Φ7.5*22/Φ1.2

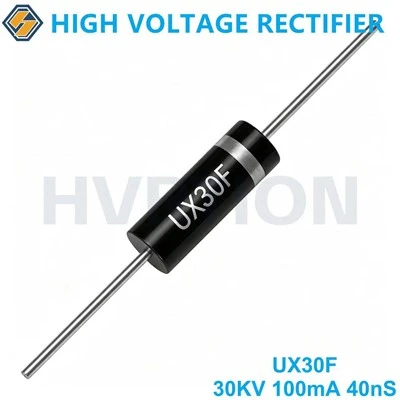

UX30F

30

100

30

130

-55~160

35

2

0.04

Φ4.2*15/Φ0.8
Φ7.5*22/Φ1.2
