Product Overview

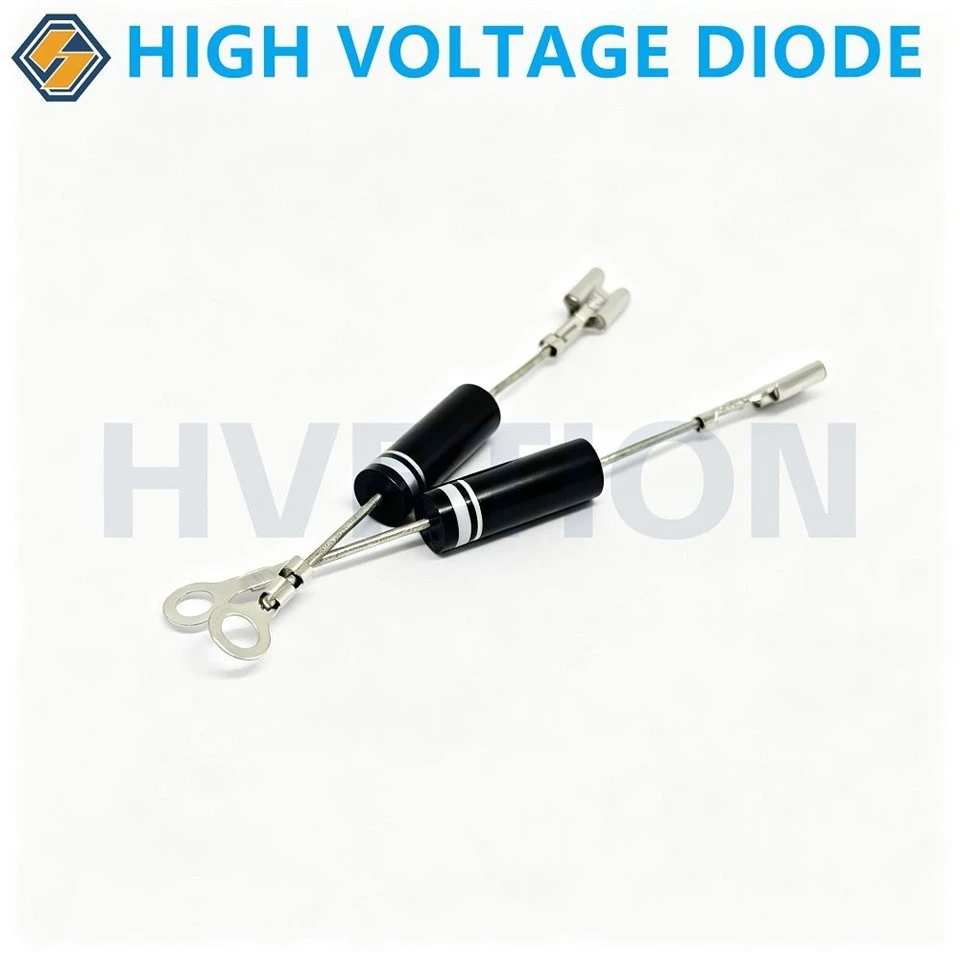

The RT4510 High Voltage Rectifier Diode is designed for applications requiring reliable high voltage rectification with compact axial packaging.
Featuring:
* 10KV reverse voltage rating
* 450mA continuous forward current
* 30A surge current capability
* Low reverse leakage current ≤5μA
RT4510 delivers excellent electrical performance in high voltage DC power conversion systems.
Its robust silicon junction design ensures stable operation under high voltage stress and repeated switching conditions.
Electrical Specifications
|
Parameter |
Value |
|
VRRM |
10KV |
|
IF(AV) |
450mA |
|
IFSM |
30A |
|
VFM |
≤10V |
|
IFM |
450mA |
|
IRRM |
≤5μA |
|
VBR |
≥12KV |
|
Package |
Axial |
|
Dimension |
φ7.5×22mm |
Main Applications
* Microwave oven magnetron power supply
* High voltage multiplier circuits
* Industrial rectifier systems
* High frequency generators
* Electrostatic equipment
* High voltage charging systems
* Medical and laboratory equipment
