Product Overview

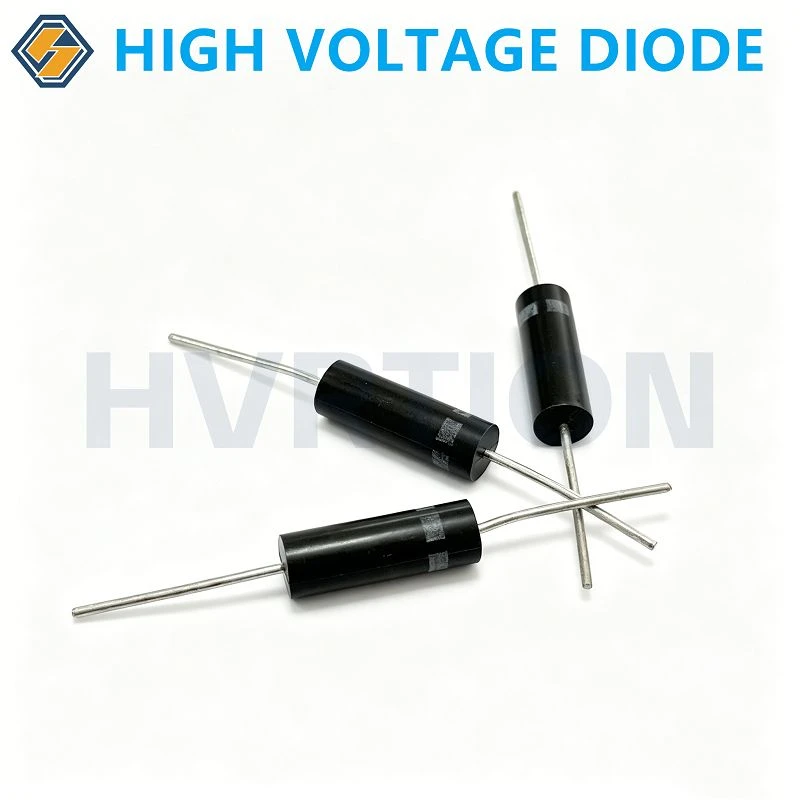

CL-350mA series offers a comprehensive range of fast recovery diodes designed for applications requiring high blocking voltage, moderate forward current (350mA), and extremely short reverse recovery time (0.1μs). With voltage ratings from 8KV to 15KV, these diodes ensure efficient switching and low power loss. Axial lead packages suitable for automatic insertion, suitable for microwave ovens, laser power supplies, X-ray generators, and industrial HV equipment. Reliable axial lead packages. Factory direct.
Key Features
High blocking voltage – VRRM: 8KV ~ 15KV
Forward current – IF(AV): 350mA
Peak surge current – IFSM: 15A (non-repetitive),30A for CL05-15S
Ultra-fast recovery time – trr: 0.1μs (0.15μs for CL05-15S)
Low forward voltage drop – VF max from 12V to 40V @ IFM=350mA
Low reverse leakage – IR1: 5μA @ VRRM, Ta=25°C
Operating junction temperature – Tj: 130°C
Storage temperature – Tstg: -40°C ~ +130°C, -40°C ~+160°C for CL05-15S
RoHS compliant, lead-free finish
Applications
- Microwave oven high voltage rectification
- High voltage power supplies for laser & plasma
- X-ray generators and medical equipment
- Electrostatic precipitators (ESP)
- Copy machines / laser printers
- HV multipliers and capacitor charging circuits
Electrical Characteristics & Dimensions
|
Type |
Rated Values |
Temp. Condition |
Electrical Characteristic |
Dimension |
|||||
|
VRRM |
IF(AV) |
IFSM |
Tj |
Tstg |
VF |
IR1 |
Trr |
φbody*L, φlead |
|
|
[IFM=350mA] |
[VR=VRRM] |
||||||||
|
KV |
mA |
A |
℃ |
℃ |
V |
μA |
μS |
mm |
|
|
CL08-08T |
8 |
350 |
15 |
130 |
-40~+130 |
16 |
5 |
0.1 |
Φ7.5*22/Φ1.2 |
|
CL08-08 |
8 |
350 |
15 |
130 |
-40~+130 |
12 |
5 |
0.1 |
Φ7.5*22/Φ1.2 |
|
CL08-09 |
9 |
350 |
15 |
130 |
-40~+130 |
13 |
5 |
0.1 |
Φ7.5*22/Φ1.2 |
|
CL08-10T |
10 |
350 |
15 |
130 |
-40~+130 |
21 |
5 |
0.1 |
Φ7.5*22/Φ1.2 |
|
CL08-12T |
12 |
350 |
15 |
130 |
-40~+130 |
22 |
5 |
0.1 |
Φ7.5*22/Φ1.2 |
|
CL08-08C |
8 |
350 |
15 |
130 |
-40~+130 |
13 |
5 |
0.1 |
Φ4.5*15/Φ1.0 |
|
CL08-10C |
10 |
350 |
15 |
130 |
-40~+130 |
21 |
5 |
0.1 |
Φ4.5*15/Φ1.0 |
|
CL05-15S |
15 |
350 |
40 |
160 |
-40~+160 |
50 |
5 |
0.15 |
Φ4.5*15/Φ1.2 |
*All values are maximum ratings unless otherwise specified (Ta=25°C).
Mechanical Data
- Package: Molded plastic, UL94V-0 rated
- Polarity: Cathode band marked
- Mounting: Axial lead
Ordering Information
Packaging: Bulk (200pcs/bag). MOQ negotiable.
Why Choose This Series?
- Proven reliability for continuous high voltage operation
- Fast recovery reduces switching losses in high frequency circuits
- Wide voltage selection – match exact needs without over-engineering
- Multiple mechanical configurations – fit different PCB layouts
- Direct replacement for common HV rectifier part numbers
Technical Support
Contact our team for voltage/current ratings beyond standard series (custom HV assemblies available).
