Standard Recovery High Voltage Diode——350-400mA 9-16KV
|
|
Feature: |
|
● Low VF ● High reliability, high Tj ● High surge capability, fast Trr |
|
|
Application: |
|
|
Microwave oven, laser power supplies, MRI systems, laser therapy devices, industrial microwave equipment, microwave ovens, electrostatic precipitators, high-frequency induction heating, and RF equipment, etc. |
CL01 series 9-15KV350mA standard recovery high voltage diode
|
Type |
Rated Values |
Temp. Condition |
Electrical Characteristics |
Dimension |
||||||
|
VRRM |
IF(AV) |
IFSM |
IRSM |
Tj |
Tstg |
VF |
IR1 |
Trr |
Φbody*L, Φlead |
|
|
[IF=IF(AV] |
[VR=VRRM] |
|||||||||
|
KV |
mA |
A |
A |
℃ |
℃ |
V |
μA |
μS |
mm |
|
|
CL01-09 |
9 |
350 |
30 |
-- |
130 |
-40~+130 |
10 |
5 |
-- |
Φ7.5*22/Φ1.2 |
|
CL01-12 |
12 |
350 |
30 |
-- |
130 |
-40~+130 |
12 |
5 |
-- |
Φ7.5*22/Φ1.2 |
|
CL01-15 |
15 |
350 |
30 |
-- |
130 |
-40~+130 |
13 |
5 |
-- |
Φ7.5*22/Φ1.2 |
|
CL01-12A |
12 |
350 |
30 |
0.1 |
130 |
-40~+130 |
12 |
5 |
-- |
Φ7.5*22/Φ1.2 |
|
CL01-12D |
12 |
350 |
30 |
-- |
130 |
-40~+130 |
12 |
5 |
-- |
Φ5*9//Φ1.2 |
|
CL01-12C |
12 |
350 |
30 |
-- |
130 |
-40~+130 |
12 |
5 |
-- |
Φ4.5*15//Φ1.0 |
2CL35 series 9-16KV 350mA standard recovery high voltage diode
|
Type |
Rated Values |
Temp. Condition |
Electrical Characteristics |
Dimension |
||||||
|
VRRM |
IF(AV) |
IFSM |
IRSM |
Tj |
Tstg |
VF |
IR1 |
Trr |
Φbody*L, Φlead |
|
|
[IF=IF(AV] |
[VR=VRRM] |
|||||||||
|
KV |
mA |
A |
A |
℃ |
℃ |
V |
μA |
μS |
mm |
|
|
2CL3509 |
9 |
350 |
30 |
-- |
130 |
-40~+130 |
9 |
5 |
-- |
Φ7.5*22/Φ1.2 |
|
2CL3512 |
12 |
350 |
30 |
-- |
130 |
-40~+130 |
10 |
5 |
-- |
Φ7.5*22/Φ1.2 |
|
2CL3509H |
9 |
350 |
30 |
0.1 |
130 |
-40~+130 |
10 |
5 |
-- |
Φ7.5*22/Φ1.2 |
|
2CL3512H |
12 |
350 |
30 |
0.1 |
130 |
-40~+130 |
12 |
5 |
-- |
Φ7.5*22/Φ1.2 |
|
2CL3516 |
16 |
350 |
30 |
-- |
130 |
-40~+130 |
12 |
5 |
-- |
Φ7.5*22/Φ1.2 |
RT35 microwave series 9-12KV 350mA standard recovery HV diode
|
Type |
VRRM |
IF(AV) |
IFSM |
VFM |
IFM |
IRRM |
VBR |
Dimension (Φbody*L, Φlead) |
|
IR=100uA |
||||||||
|
VRM=VRRM |
||||||||
|
KV |
mA |
A |
V |
mA |
uA |
KV |
mm |
|
|
RT3509 |
9 |
350 |
30 |
10 |
350 |
5 |
≥9.5 |
Φ7.5*22/Φ1.2 |
|
RT3510 |
10 |
350 |
30 |
10 |
350 |
5 |
≥10.5 |
Φ7.5*22/Φ1.2 |
|
RT3512H |
12 |
350 |
30 |
12 |
350 |
5 |
≥16.5 |
Φ7.5*22/Φ1.2 |
|
RT3516 |
16 |
350 |
30 |
12 |
350 |
5 |
≥16.5 |
Φ7.5*22/Φ1.2 |
HVM series 10-16KV 350-400mA standard recovery HV diode
|
Type |
VRRM |
IF(AV) |
IFSM |
VFM |
IFM |
IRRM1 |
VBR |
Dimension |
|
IR=100uA |
||||||||
|
VRM=VRRM |
||||||||
|
KV |
mA |
A |
V |
mA |
uA |
KV |
mm |
|
|
HVM10 |
10 |
400 |
30 |
10 |
400 |
5 |
≥9.5 |
Φ7.5*22/Φ1.2 |
|
HVM12 |
12 |
350 |
30 |
14 |
350 |
5 |
≥12 |
Φ7.5*22/Φ1.2 |
|
HVM16 |
16 |
350 |
30 |
14 |
350 |
5 |
≥16.5 |
Φ7.5*22/Φ1.2 |
-
![CL01-350mA Microwave HV Diode]()

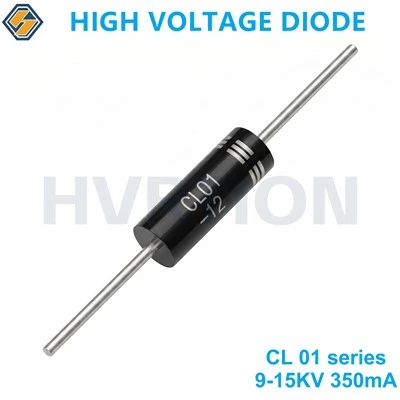

CL01-350mA Microwave HV DiodeCL01 Series 9–15kV 350mA Standard Recovery High Voltage Diode for Industrial High Voltage Applications
The series provides 9kV, 12kV, and 15kV repetitive peak reverse voltage (VRRM)... -
![2CL35 Series Microwave Oven Diode]()

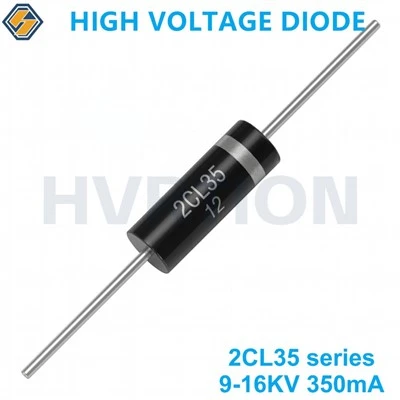

2CL35 Series Microwave Oven Diode2CL35 Series High Voltage Rectifier Diodes | 9kV–16kV 350mA Silicon High Voltage Diode Manufacturer & OEM Supplier
The 2CL35 Series high voltage rectifier diodes feature reverse voltage... -
![RT35 Series Microwave Diode]()
RT35 Series Microwave DiodeRT35 Microwave Series 9–16kV 350mA Standard Recovery High Voltage Diode for microwave ovens, microwave power supplies, high-voltage rectifiers, and industrial HV equipment. -
![HVM Series Microwave Rectifier]()

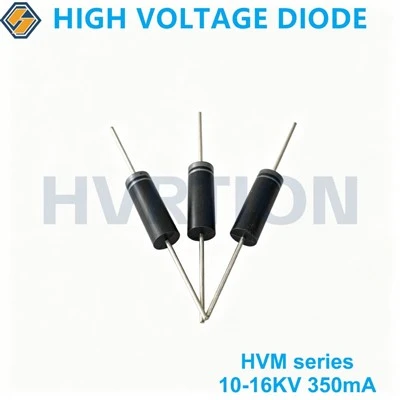

HVM Series Microwave RectifierHVM10 HVM12 HVM16 High Voltage Rectifier Diode 10kV 12kV 16kV 350mA 400mA Silicon High Voltage Diode for Power Supply & Electrostatic Equipment -
![CL01-12 Microwave Diode]()

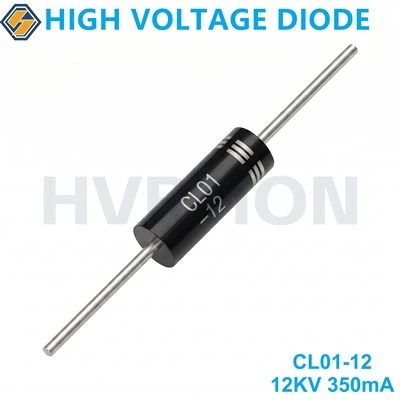

CL01-12 Microwave DiodeCL01-12 12kV 350mA Standard Recovery High Voltage Rectifier Diode
12kV 350mA High Voltage Diode for Industrial and High Voltage Rectification Applications
The CL01-12 is a 12kV... -
![Microwave High Voltage Diode]()

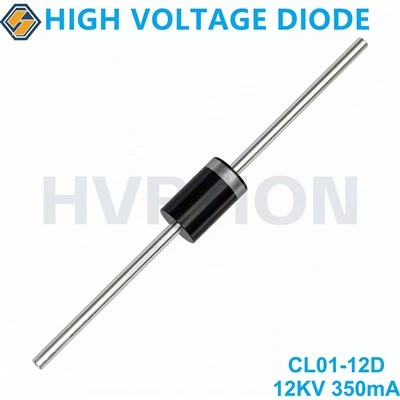

Microwave High Voltage DiodeCL01-12D High Voltage Rectifier Diode, 12kV 350mA High Voltage Silicon Rectifier Diode for Compact High Voltage Modules & Industrial Power Supplies
