High Voltage High Power Standard Recovery Diode
|
|
Feature: |
|
● Small size, low VF ● High reliability, high Tj ● High surge capability, fast Trr |
|
|
Application: |
|
|
X-ray machines, laser generators, high-voltage generators, high-voltage inverters, RF machine, CRT monitors, etc. |
HVR series 3-5KV 2-3A high voltage diode
|
Type |
Rated Values |
Temp. Condition |
Electrical Characteristics |
Dimension |
|||||
|
VRRM |
IF(AV) |
IFSM |
Tj |
Tstg |
VF |
IR1 |
Trr |
(Φbody*L, Φlead) |
|
|
[IF=IF(AV] |
[VR=VRRM] |
||||||||
|
KV |
A |
A |
℃ |
℃ |
V |
μA |
μS |
mm |
|
|
HVR03 |
3 |
2 |
300 |
150 |
-40~150 |
2 |
5 |
-- |
Φ8.8*8.8/Φ1.28 Φ5*9/Φ1.2 |
|
HVR04 |
4 |
3 |
200 |
150 |
-40~150 |
3 |
5 |
-- |
Φ8.8*8.8/Φ1.28 Φ5*9/Φ1.2 |
|
HVR05 |
5 |
3 |
200 |
150 |
-40~150 |
4 |
5 |
-- |
Φ8.8*8.8/Φ1.28 Φ5*9/Φ1.2 |
BR series 2-13KV 0.35-2A high voltage diode
|
Type |
Rated Values |
Temp. Condition |
Electrical Characteristics |
Dimension |
|||||
|
VRRM |
IF(AV) |
IFSM |
Tj |
Tstg |
VF |
IR1 |
Trr |
(Φbody*L, Φlead) |
|
|
[IF=IF(AV] |
[VR=VRRM] |
||||||||
|
KV |
A |
A |
℃ |
℃ |
V |
μA |
μS |
mm |
|
|
BR2 |
2 |
2 |
50 |
120 |
-40~120 |
2.4 |
3 |
-- |
Φ5*9/Φ1.2 |
|
BR4 |
4 |
1 |
50 |
120 |
-40~120 |
4.4 |
3 |
-- |
Φ5*9/Φ1.2 |
|
BR12 |
13 |
0.35 |
50 |
120 |
-40~120 |
12 |
3 |
-- |
Φ5*9/Φ1.2 |
HPTS series 1700-2200V 10A SIC High Voltage diode
|
Type |
Rated Values |
Temp. Condition |
Electrical Characteristics |
Dimension |
|||||
|
VRRM |
IF(AV) |
IFSM |
Tj |
Tstg |
VF |
IR1 |
Trr |
(Φbody*L, Φlead) |
|
|
[IF=IF(AV] |
[VR=VRRM] |
||||||||
|
KV |
A |
A |
℃ |
℃ |
V |
μA |
μS |
mm |
|
|
HPT1700S |
1700 |
10 |
100 |
120 |
-40~120 |
3 |
5 |
-- |
TO220-2L |
|
HPT2200S |
2200 |
10 |
100 |
120 |
-40~120 |
4 |
5 |
-- |
TO220-2L |
-
![BR Series HV Diode]()

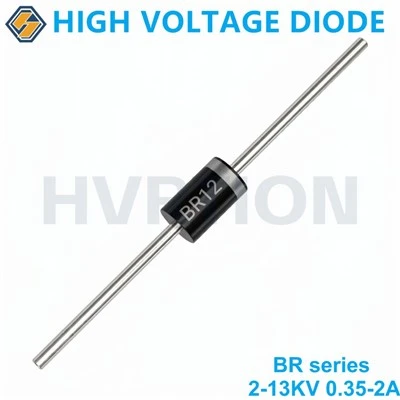

BR Series HV DiodeBR Series 2KV 4KV 13KV High Voltage Rectifier Diode | Silicon High Voltage Diode Manufacturer for Power Supply and Industrial Applications
BR Series high voltage silicon rectifier diodes... -
![HVR Series HV High Power Diode]()

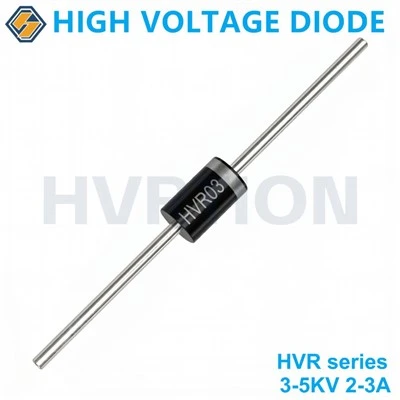

HVR Series HV High Power DiodeHVR Series High Voltage Rectifier Diode | 3KV 4KV 5KV Silicon High Voltage Diodes Manufacturer HVRTION
HVR series high voltage rectifier diodes provide 3KV to 5KV reverse voltage, 2A-3A... -
![HPTS Series High Power Diode]()
HPTS Series High Power DiodeHPTS Series 1700V 2200V 10A SiC High Voltage Diode, Silicon Carbide Schottky Diode for High Frequency Power Applications
HPTS series SiC high voltage diodes provide 1700V-2200V reverse... -
![High Voltage Diode 5KV]()

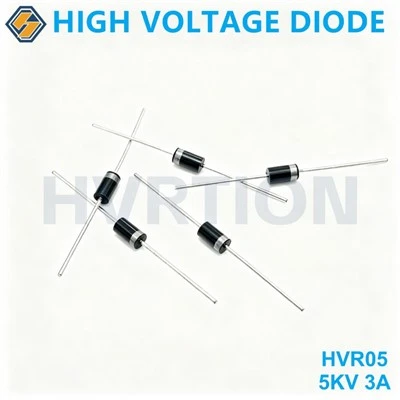

High Voltage Diode 5KVHVR05 5KV 3A High Voltage Diode | Silicon Rectifier Diode with 200A Surge Current Capability HVRTION
