Description
High Current (500mA), Fast Recovery, Multiple Package Options – Engineered for High Power High Voltage Systems

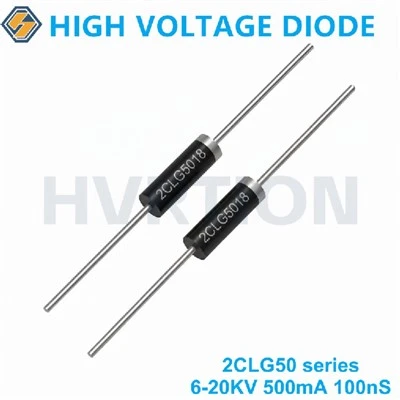

The CL-500mA Series from HVRTION is a high‑performance family of fast recovery high voltage diodes designed for applications requiring high forward current (500mA), fast switching (Trr down to 100ns), and excellent surge tolerance (up to 30A). Covering voltages from 8KV to 20KV, the CL-500mA series delivers reliable rectification for high power X‑ray generators, industrial lasers, capacitor charging systems, and high frequency power supplies. Four models offer flexibility in package size and electrical characteristics to match different design requirements.
Series Overview – Models & Key Parameters
|
Type |
Rated Values |
Temp. Condition |
Electrical Characteristic |
||||||||
|
VRRM |
IF(AV) |
IFSM |
Tj |
Tstg |
VFM |
IRRM1 |
IRRM2 Ta=100℃ |
Trr
|
Dimension |
||
|
VRM=VRRM |
|||||||||||
|
KV |
mA |
A |
℃ |
℃ |
V |
uA |
uS |
mm |
|||
|

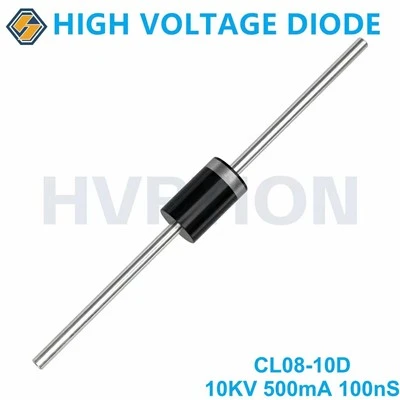

CL08-10D |
10 |
500 |
30 |
130 |
-40~130 |
21 |
5 |
50 |
0.1 |
Φ5*9/Φ1.2 |
|
|

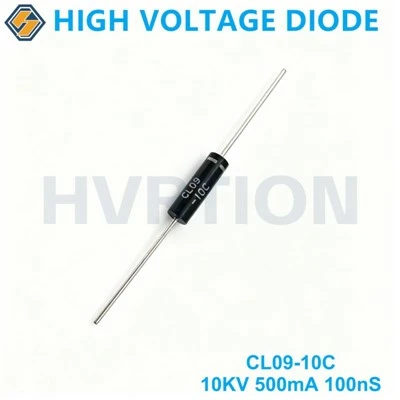

CL09-10C |
10 |
500 |
15 |
130 |
-40~130 |
20 |
5 |
50 |
0.1 |
Φ4.5*15/Φ1.0 |
|
|
CL05-15T |
15 |
500 |
30 |
130 |
-40~130 |
30 |
5 |
50 |
0.1 |
φ7.5*22/Φ1.2 |
|
|
CL05-16C |
16 |
500 |
30 |
130 |
-40~130 |
35 |
5 |
50 |
0.1 |
Φ4.2*15/Φ0.8 |
|
|

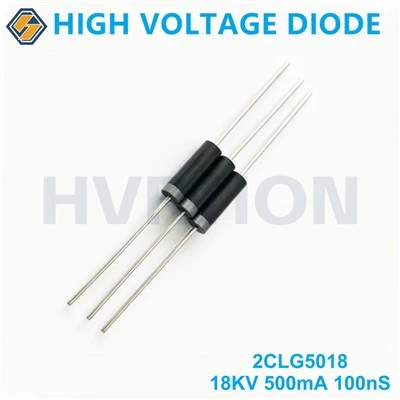

CL05-18C |
18 |
500 |
30 |
130 |
-40~130 |
36 |
5 |
50 |
0.1 |
Φ4.2*15/Φ0.8 |
|
|
RTH-20 |
20 |
500 |
30 |
130 |
-40~130 |
28 |
10 |
20.5 |
0.1 |
φ7.5*22/Φ1.2 |
|
|
CL09-08G |
8 |
450 |
20 |
130 |
-40~130 |
11 |
5 |
50 |
0.15 |
φ7.5*22/Φ1.2 |
|
|
CL09-15G |
15 |
600 |
20 |
150 |
-40~150 |
19.8 |
5 |
50 |
0.12 |
φ7.5*22/Φ1.2 |
|
|
CL50-10H |
10 |
500 |
20 |
150 |
-55~150 |
15 |
5 |
50 |
0.04 |
φ7.5*22/Φ1.2 |
|
|
CL50-15H |
15 |
500 |
20 |
150 |
-55~150 |
23 |
5 |
50 |
0.04 |
φ7.5*22/Φ1.2 |
|
Key Features
High Forward Current – 500mA
Industry‑leading 500mA current rating for high voltage diodes in this voltage range
Wide Voltage Range
One family for multiple high power applications
Fast Recovery – 40-100ns
Reduces switching losses and improves efficiency
Very Low Leakage Current – 5µA at 25°C
Minimizes standby power and heat generation
High Surge Current Capability – Up to 30A
Exceptional inrush handling for capacitor charging and pulsed loads
Low Forward Voltage Drop
Reduces conduction losses in high duty cycle rectifiers
Multiple Package Options – Design Flexibility
All packages RoHS compliant and compatible with automated assembly
RoHS & REACH Compliant
Environmentally friendly, lead‑free epoxy encapsulation
Applications – Where to Use the CL-500mA Series
The CL-500 series is designed for high voltage, high current (500mA) systems requiring fast recovery, low leakage, and robust surge handling.
X‑Ray & Medical Imaging (High Power)
High voltage rectification in high power X‑ray generators, CT scanners, and angiography systems
500mA current capability supports high mA X‑ray tubes
Low leakage ensures stable output and patient safety
Solid‑State Laser Drivers (High Power)
40-100ns fast recovery enables sharp pulse edges for high power laser diodes
30A surge withstands capacitor discharge events
Ideal for industrial laser cutting, welding, and medical lasers
Industrial High Voltage Power Supplies
Electrostatic precipitators for large power plants – 500mA supports big systems
Electrostatic powder coating equipment
High voltage testers (HIPOT) with fast charging capability
Capacitor Charging Power Supplies (CCPS)
30A surge capability is essential for charging large capacitor banks
20KV rating suitable for pulsed power systems, defibrillators, radar modulators
High Frequency High Voltage Converters
40-100nS enables high switching frequency
500mA allows diodes used in harsh condition of flyback, boost, and resonant topologies
Electron Beam & Ion Beam Power Supplies
Reliable rectification for e‑beam welders, sterilizers, and ion implanters
Defence & Radar Systems
High current, high voltage rectification for radar modulators and avionics power supplies
Secondary Applications
Mass spectrometers
Particle accelerators (auxiliary supplies)
High voltage DC‑DC converters for industrial controls
Oil exploration instrumentation (high voltage bias)
Quality & Reliability
100% electrical testing – VRRM, VF, IR, and Trr verified per device
Lead-free and RoHS compliant – no hazardous substances
Lead time
Engineering samples: 1-3 business days (stock dependent)
Production quantities: 2-4 weeks
Packing
- Bulk (200 pcs per polybag)
Why Choose the CL-500mA Series?
|
Advantage |
Benefit |
|
500mA current rating |
Highest in its voltage class – delivers up to 10W+ rectified power |
|
30A surge capability |
Excellent for capacitor charging and pulsed loads |
|
100ns ultra-fast recovery |
Enables high frequency operation up to 150kHz |
|
5µA ultra-low leakage |
Minimizes standby losses and heating |
|
20KV maximum voltage |
Suitable for most high power industrial and medical systems |
|
Multiple package sizes |
Choose compact for space, or large for 20KV creepage |
|
Low forward voltage |
High efficiency |
Request a Free Sample or Get a Quote
Ready to test the CL-500mA series in your design? Contact HVRTION's high voltage diode experts.
