High-Voltage Silicon Stacks for HIGH Frequency Machine 15-51KV 1-10A
|
|
Feature: |
|
● High voltage resistance, high reliability ● Surge protection, low forward voltage ● Customizable size |
|
|
Application: |
|
|
RF Welder,high frequency machine,high-frequency high-voltage switching power supplies, medical X-ray generators, industrial testing and insulation testing, electrostatic spraying and electrostatic dust removal,etc. |
|
Type |
Rated Values |
Temp. Condition |
Electrical Characteristics [Ta=25℃] |
Dimension |
|||||||
|
VRRM |
IF(AV) |
IFSM |
Tj |
Tstg |
VFM |
IR1 |
L±2.0 |
W±2.0 |
H±2.0 |
Thread |
|
|
KV |
A |
A |
℃ |
℃ |
V |
uA
|
mm |
mm |
mm |
||
|
2CL1A15KV |
15 |
1 |
50 |
150 |
-40~150 |
18 |
5 |
130 |
25 |
20 |
M5 |
|
2CL1A20KV |
20 |
1 |
50 |
150 |
-40~150 |
24 |
5 |
130 |
25 |
20 |
M5 |
|
2CL1A/25KV |
25 |
1 |
50 |
150 |
-40~150 |
28 |
5 |
130 |
25 |
20 |
M5 |
|
2DL2A20KV |
20 |
2 |
80 |
150 |
-40~150 |
24 |
5 |
130 |
25 |
20 |
M5 |
|
2DL2A25KV |
25 |
2 |
80 |
150 |
-40~150 |
28 |
5 |
130 |
25 |
20 |
M5 |
|
2DL3A30KV |
30 |
3 |
100 |
150 |
-40~150 |
36 |
5 |
150 |
35 |
25 |
M5 |
|
2DL3A40KV |
40 |
3 |
100 |
150 |
-40~150 |
48 |
5 |
285 |
60 |
30 |
M5 |
|
2DL5A40KV |
40 |
5 |
200 |
150 |
-40~150 |
48 |
10 |
285 |
60 |
30 |
M5 |
|
2DL10A50KV |
50 |
10 |
200 |
150 |
-40~150 |
60 |
50 |
285 |
60 |
30 |
M5 |
|
HV2036 |
36 |
2 |
80 |
150 |
-40~150 |
42 |
5 |
Fig.5 |
|||
|
IN5446 |
51 |
3 |
100 |
150 |
-40~150 |
60 |
5 |
Fig.5 |
|||
|
2DL2A30KV |
30 |
2 |
80 |
150 |
-40~150 |
36 |
5 |
Fig.6 |
|||
|
HVP-14 |
15.5 |
1A |
50 |
150 |
-40~150 |
16 |
5 |
Fig.7 |
|||
|
HVP-15 |
16.5 |
1A |
50 |
150 |
-40~150 |
17 |
5 |
Fig.7 |
|||
|
HVP-16 |
17.5 |
1A |
50 |
150 |
-40~150 |
19 |
5 |
Fig.7 |
|||
|
HVP-20 |
21.5 |
1A |
50 |
150 |
-40~150 |
24 |
5 |
Fig.7 |
|||
|
|
|
|
|
|
Fig. 4 |
Fig. 5 |
Fig.6 |
Fig.7 |
-
![High Voltage Rectifier Stack]()
High Voltage Rectifier StackHigh Voltage rectifier block, Silicon Stack for high-frequency machine | 15KV-40KV 1A-5A High Frequency Rectifier Stack
High Voltage Silicon Stack Rectifier for RF Welding Machine, High... -
![Bell-type High Voltage Rectifier]()

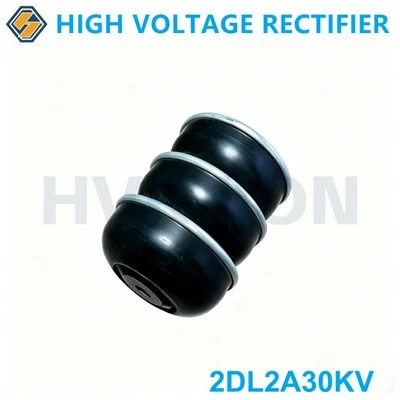

Bell-type High Voltage Rectifier2DL2A30KV High Voltage Silicon Stack | 30KV 2A Rectifier Module for High Frequency Equipment -
![HVP-16 High Voltage Diode]()

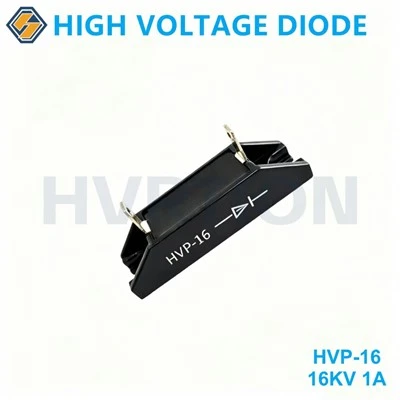

HVP-16 High Voltage DiodeHVP-16 High Voltage Silicon Stack | 16KV 1A High Frequency Rectifier for RF Welder
The HVP-16 High Voltage Silicon Stack Rectifier is a high-performance semiconductor rectifier designed for... -
![HV2026 Mounting Slot HV Diode]()

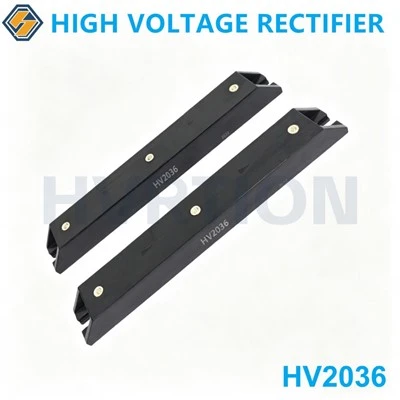

HV2026 Mounting Slot HV DiodeHV2036 36KV 2A High Voltage Silicon Stack with mounting slots | High Voltage Bridge Rectifier for RF Welding Machine, High Frequency Equipment, X-Ray Generator and Industrial Power Supply
