High Voltage Multiplier

No.	Type	Diode	Capacitance	Dielectric Materials	Dielectric Loss	Insulation resistance	Test Voltage	Picture
1	20KV251K+75A	16KV5mA	250PF	Y5T	<1.0%	>10⁵MΩ	30KV
2	20KV501K+0320	20KV30mA	500PF	Y6T	＜0.5%	>10⁵MΩ	30KV
3	20KV102K+0320	20KV30mA	1000PF	ceramic	<0.2%	>10⁵MΩ	30KV
4	20KV471K+T75A	16KV5mA	470PF	Y5T	<0.5%	>10⁵MΩ	30KV
5	20KV102K+0530	30KV50mA	1000PF	ceramic	<0.2%	>10⁵MΩ	30KV
6	20KV471K+0320(7stages)	20KV30mA	470PF	X7R	<0.5%	>10⁵MΩ	30KV
7	20KV471K+0320(8 stages)	20KV30mA	470PF	X7R	<0.5%	>10⁵MΩ	30KV
8	20KV471K+0320(10 stages)	20KV30mA	470PF	Y5T	<0.5%	>10⁵MΩ	30KV
9	20KV471K+T75A(10 stages)	16KV5mA	470PF	Y5T	<1.0%	>10⁵MΩ	30KV
10	20KV501K+0320	20KV30mA	500PF	Y5T	<0.5%	>10⁵MΩ	30KV
11	20KV681K+0320"	20KV30mA	680PF	Y5T	<0.5%	>10⁵MΩ	30KV
12	20KV102K+0320	20KV30mA	1000PF	X7R	<1.0%	>10⁵MΩ	30KV
13	15KV102K+HVRT250(12 stages)	25KV30mA	1000PF	Y5T	<0.5%	>10⁵MΩ	22.5KV
14	15KV102K+HVRT250(14 stages)	25KV30mA	1000PF	Y5T	<0.5%	>10⁵MΩ	22.5KV
15	20KV331K+75A	16KV5mA	330PF	Y5T	<0.5%	>10⁵MΩ	30KV
16	20KV251K+75A	16KV5mA	250PF	Y5T	<0.2%	>10⁵MΩ	30KV
17	20KV471K+75A Copper Terminal	16KV5mA	470PF	X7R	<1.0%	>10⁵MΩ	30KV
18	20KV271K+75A Copper Terminal	16KV5mA	270PF	Y5T	<0.2%	>10⁵MΩ	30KV
19	20KV511K+75A Copper Terminal	16KV5mA	510PF	Y5T	<0.5%	>10⁵MΩ	30KV
20	20KV221K+75A	16KV5mA	220PF	Y5T	<0.5%	>10⁵MΩ	30KV
21	20KV331K+75A	16KV5mA	220PF	Y5T	<0.5%	>10⁵MΩ	30KV
22	20KV221K+75A Double	16KV5mA	330PF	Y5T	<0.5%	>10⁵MΩ	30KV
23	20KV221K+75A Single	16KV5mA	220PF	Y5T	<0.5%	>10⁵MΩ	30KV
24	20KV331K+75A Double	16KV5mA	220PF	Y5T	<0.5%	>10⁵MΩ	30KV

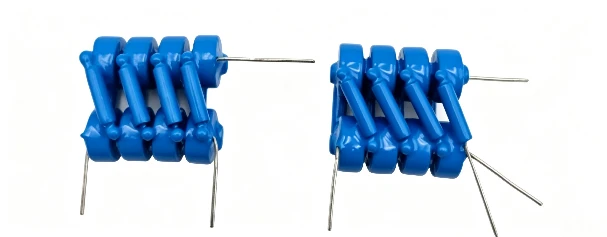

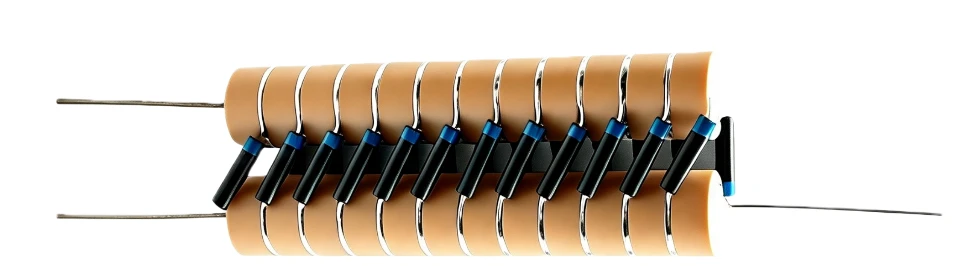

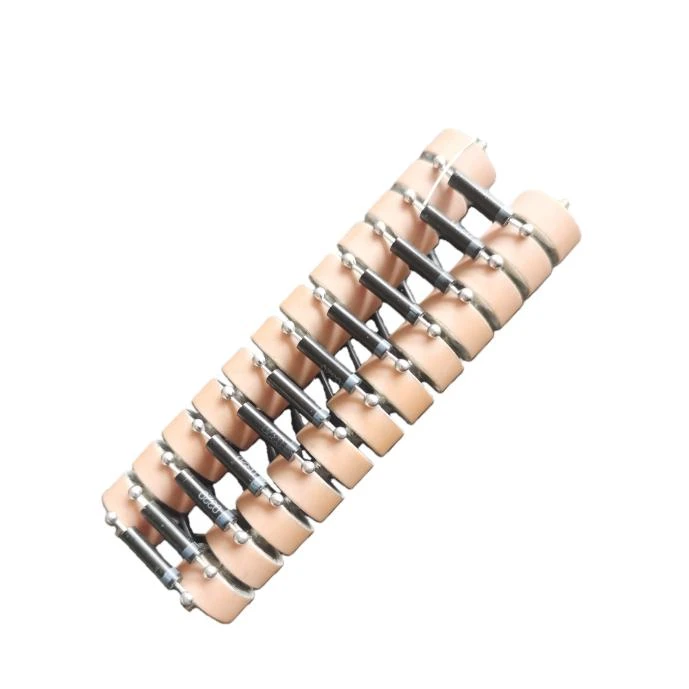

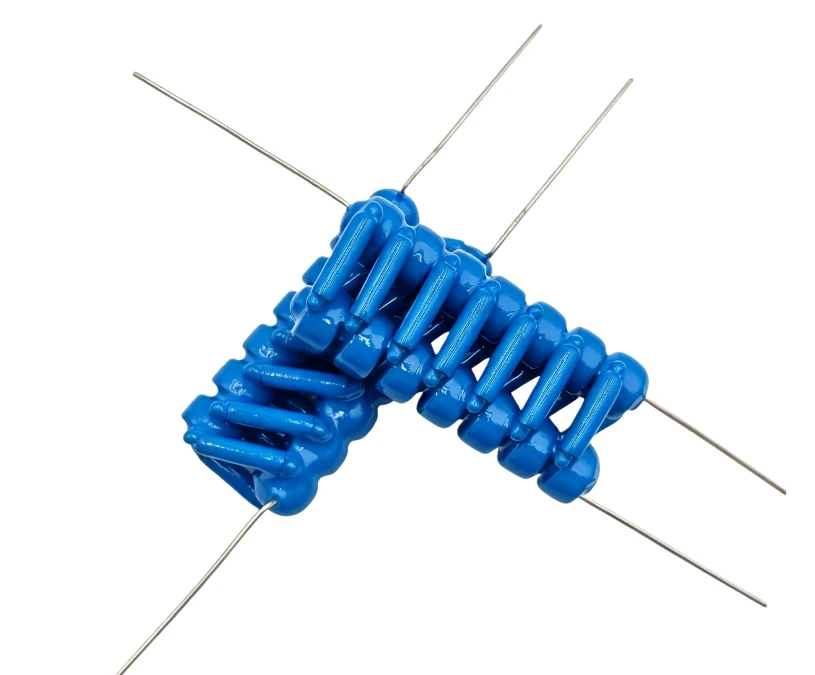

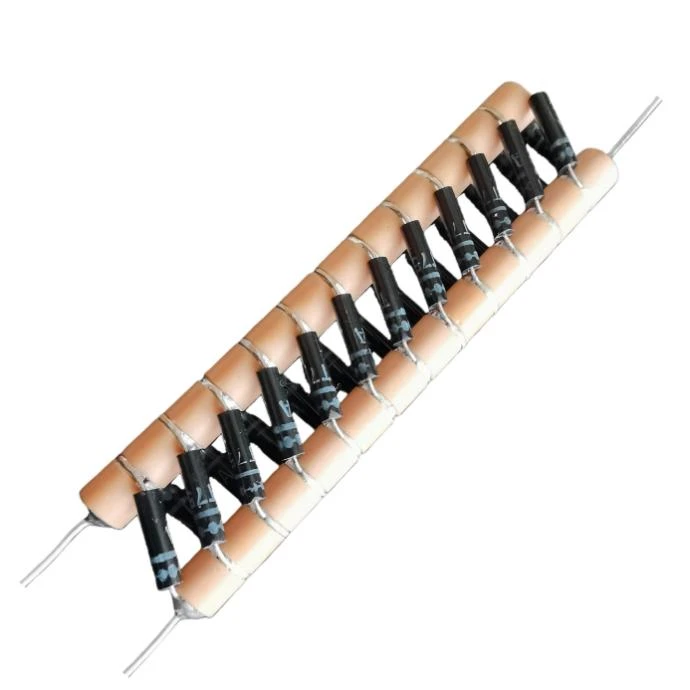

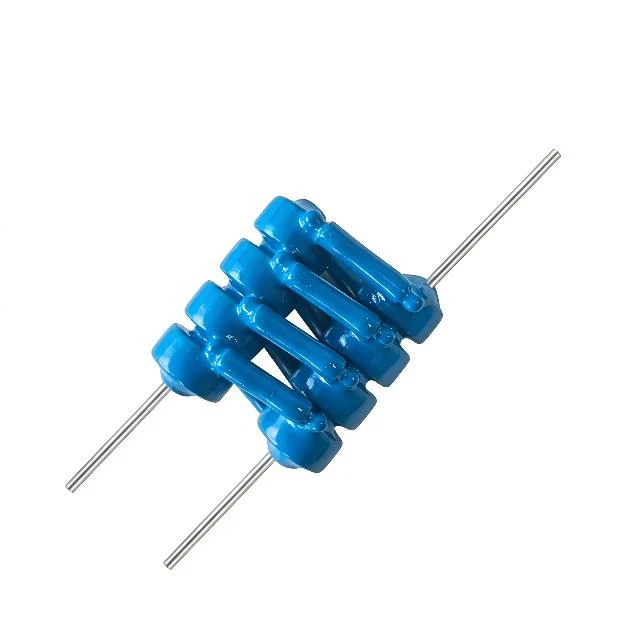

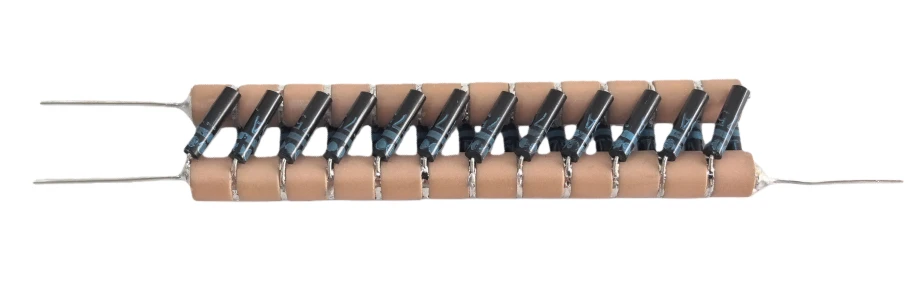

High Voltage Diode Capacitor Assembly
High Voltage Multiplier Module, 15KV–30KV High Voltage Diode Capacitor Multiplier Assembly for High Voltage Power Supply

view more

As one of the most professional cockcroft walton multiplier manufacturers and suppliers in China, we're featured by quality products and good price. Please rest assured to buy discount cockcroft walton multiplier for sale here and get quotation from our factory. We also accept customized orders.
