High Voltage High Power Fast Recovery High Voltage Diode——0.4-10A 1-20KV 75-150nS
|
|
Feature: |
|
● Small size, low VF ● High reliability, high Tj ● High surge capability, fast Trr |
|
|
Application: |
|
|
X-ray power supplies, high-voltage generators and test equipment, particle accelerators, electrostatic applications, crude oil dehydration, laser power supplies, voltage multiplier circuits, microwave transmission power supplies, etc. |
2CLG1 series 10-20KV 1A 150nS
|
Type |
Rated Values |
Temp. Condition |
Electrical Characteristic |
Dimension |
|||||
|
VRRM |
IF(AV) |
IFSM |
Tj |
Tstg |
VF |
IR1 |
Trr |
φbody*L, φlead |
|
|
[IF=IF(AV)] |
[VR=VRRM] |
||||||||
|
KV |
A |
A |
℃ |
℃ |
V |
μA |
μS |
mm |
|
|
2CLG1-10 |
10 |
1 |
30 |
120 |
-40~+120 |
30 |
5 |
0.15 |
Φ4.5*15/Φ1.0 |
|
2CLG1-20 |
20 |
1 |
30 |
120 |
-40~+120 |
60 |
5 |
0.15 |
Φ4.5*15/Φ1.0 |
BR-F series 2-10KV 0.4-1A 150nS
|
Type |
Rated Values |
Temp. Condition |
Electrical Characteristic |
Dimension |
|||||
|
VRRM |
IF(AV) |
IFSM |
Tj |
Tstg |
VF |
IR1 |
Trr |
φbody*L, φlead |
|
|
[IF=IF(AV)] |
[VR=VRRM] |
||||||||
|
KV |
A |
A |
℃ |
℃ |
V |
μA |
μS |
mm |
|
|
BR2F |
2 |
1 |
50 |
120 |
-40~+120 |
9 |
5 |
0.15 |
Φ5*9/Φ1.2 |
|
BR3F |
3 |
1 |
50 |
120 |
-40~+120 |
9 |
5 |
0.15 |
Φ5*9/Φ1.2 |
|
BR4F |
4 |
0.8 |
50 |
120 |
-40~+120 |
11 |
5 |
0.15 |
Φ5*9/Φ1.2 |
|
BR5F |
5 |
0.8 |
50 |
120 |
-40~+120 |
14 |
5 |
0.15 |
Φ5*9/Φ1.2 |
|
BR10F |
10 |
0.4 |
50 |
120 |
-40~+120 |
25 |
5 |
0.15 |
Φ5*9/Φ1.2 |
HPB series 1-10KV 1.5-5A 150nS
|
Type |
Rated Values |
Temp. Condition |
Electrical Characteristic |
Dimension |
|||||
|
VRRM |
IF(AV) |
IFSM |
Tj |
Tstg |
VF |
IR1 |
Trr |
φbody*L, φlead |
|
|
[IF=IF(AV)] |
[VR=VRRM] |
||||||||
|
KV |
A |
A |
℃ |
℃ |
V |
μA |
μS |
mm |
|
|
HPB01 |
1 |
5 |
80 |
120 |
-40~+120 |
1.2 |
2 |
0.15 |
Φ8*10/Φ1.28 Φ7.5*22/Φ1.2 |
|
HPB02 |
2 |
4.5 |
80 |
120 |
-40~+120 |
2.4 |
2 |
0.15 |
Φ8*10/Φ1.28 Φ7.5*22/Φ1.2 |
|
HPB03 |
3 |
4 |
60 |
120 |
-40~+120 |
3.6 |
2 |
0.15 |
Φ8*10/Φ1.28 Φ7.5*22/Φ1.2 |
|
HPB04 |
4 |
3.5 |
60 |
120 |
-40~+120 |
4.8 |
2 |
0.15 |
Φ8*10/Φ1.28 Φ7.5*22/Φ1.2 |
|
HPB05 |
5 |
3 |
60 |
120 |
-40~+120 |
6.0 |
2 |
0.15 |
Φ8*10/Φ1.28 Φ7.5*22/Φ1.2 |
|
HPB06 |
6 |
2.5 |
50 |
120 |
-40~+120 |
7.2 |
2 |
0.15 |
Φ8*10/Φ1.28 Φ7.5*22/Φ1.2 |
|
HPB08 |
8 |
2 |
50 |
120 |
-40~+120 |
9.6 |
2 |
0.15 |
Φ8*10/Φ1.28 Φ7.5*22/Φ1.2 |
|
HPB10 |
10 |
1.5 |
50 |
120 |
-40~+120 |
12 |
2 |
0.15 |
Φ8*10/Φ1.28 Φ7.5*22/Φ1.2 |
HVRW series 1-5KV 1-5A 150nS High Voltage Diode
|
Type |
Rated Values |
Temp. Condition |
Electrical Characteristic |
Dimension |
|||||
|
VRRM |
IF(AV) |
IFSM |
Tj |
Tstg |
VF |
IR1 |
Trr |
φbody*L, φlead |
|
|
[IF=IF(AV)] |
[VR=VRRM] |
||||||||
|
KV |
A |
A |
℃ |
℃ |
V |
μA |
μS |
mm |
|
|
HVR1W |
1 |
2.5 |
200 |
150 |
-55~+160 |
2 |
2 |
0.15 |
Φ8*10/Φ1.28 OR Φ7.5*22/Φ1.2 |
|
HVR2W |
2 |
1.5 |
200 |
150 |
-55~+160 |
3 |
3 |
0.15 |
Φ8*10/Φ1.28 OR Φ7.5*22/Φ1.2 |
|
HVR3W |
3 |
1.5 |
200 |
150 |
-55~+160 |
5 |
5 |
0.15 |
Φ8*10/Φ1.28 OR Φ7.5*22/Φ1.2 |
|
HVR4W |
4 |
1 |
200 |
150 |
-55~+160 |
5 |
5 |
0.15 |
Φ8*10/Φ1.28 OR Φ7.5*22/Φ1.2 |
|
HVRW3G |
3 |
5 |
100 |
150 |
-55~+160 |
4.8 |
4.8 |
0.08 |
Φ8*10/Φ1.28 OR Φ7.5*22/Φ1.2 |
|
HVRW5G |
5 |
3 |
60 |
150 |
-55~+160 |
13 |
13 |
0.08 |
Φ8*10/Φ1.28 OR Φ7.5*22/Φ1.2 |
HPT series 1700-2200V 10A Ultra-Fast Silicon Carbide High Voltage Diode
|
Type |
Rated Values |
Temp. Condition |
Electrical Characteristic |
Dimension |
|||||
|
VRRM |
IF(AV) |
IFSM |
Tj |
Tstg |
VF |
IR1 |
Trr |
φbody*L, φlead |
|
|
[IF=IF(AV)] |
[VR=VRRM] |
||||||||
|
V |
A |
A |
℃ |
℃ |
V |
μA |
μS |
mm |
|
|
HPT1700 |
1700 |
10 |
100 |
175 |
-55~+175 |
1.4 |
5 |
Zero |
TO220-2L |
|
HPT2200 |
2200 |
10 |
100 |
175 |
-55~+175 |
2.0 |
5 |
Zero |
TO220-2L |
-
![2CLG1 Series HV Diode]()
2CLG1 Series HV Diode2CLG1 Series 10KV – 20KV 1A 100nS High Voltage Fast Recovery Diodes. The Ultimate Power Rectifier for Demanding High Voltage Systems -
![BR-F Series HV Diode]()
BR-F Series HV DiodeBR-F Series 2KV-10KV 0.4A-1A 150ns High Voltage Fast Recovery Diodes 50A Surge，BR-F series, BR2F, BR3F, BR4F, BR5F, BR10F, 10KV diode, 1A high voltage diode, 50A surge, 150ns fast recovery diode,... -
![HPB Series HV Diode]()
HPB Series HV DiodeHPB Series 1KV-10KV 1.5A-5A 150ns High Voltage Fast Recovery Diode, 80A Surge – Low VF & Low Leakage for HV power supplies, pulsed lasers, medical equipment, and industrial systems. Two package... -
![HVRW Series HV Diode]()
HVRW Series HV DiodeHVRW Series 1kV–5kV 1A–5A Fast Recovery High Voltage Diodes
Axial Lead High Voltage Rectifier Diodes with 80ns–150ns Reverse Recovery Time -
![HPT Series HV Diode]()
HPT Series HV Diode1700V & 2200V SiC Schottky Diodes, High Voltage Silicon Carbide Schottky Diodes for High-Frequency and High-Efficiency Power Electronics -

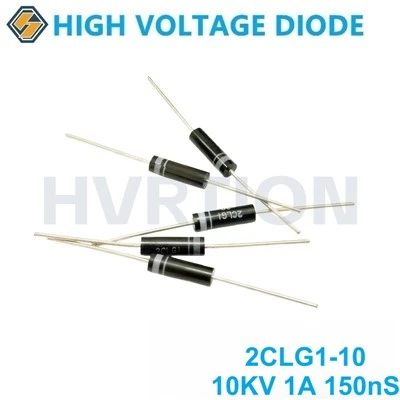

![High Voltage High Current Diode]()
High Voltage High Current DiodeHigh voltage diode 2CLG1-10, 10KV 1000mA, 150nS, fast recovery diode, high voltage high current diode with small dimension, HV diode for industrial electrostatic equipment, oilfield equipment,... -

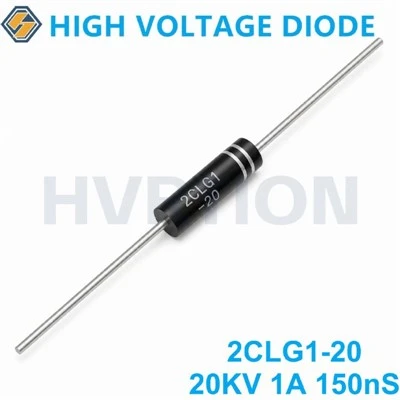

![High Voltage High Current Rated Diode]()
High Voltage High Current Rated Diode2CLG1-20 High Voltage Diode – 20kV Fast Recovery Rectifier for High Voltage Power Supplies for voltage multiplier circuits, electrostatic equipment, X-ray systems, laser power supplies, and... -
![BR2F High Voltage Diode]()
BR2F High Voltage DiodeHigh voltage diode BR2F, 2KV/1A 150nS, fast recovery diode, high voltage high current diode with miniature package Φ5*9/Φ1.2mm, minature package,The BR2F is a high voltage medium-current fast... -
![BR3F HV Diode]()
BR3F HV DiodeHigh voltage diode BR3F, 3KV/1A 150nS, fast recovery diode, high voltage high current diode with miniature package Φ5*9/Φ1.28mm, minature package,The BR3F is a high voltage medium-current fast... -
![BR4F High Voltage Diode]()
BR4F High Voltage DiodeHigh voltage diode BR3F, 4KV/0.8 150nS, fast recovery diode, high voltage high current diode with miniature package Φ5*9/Φ1.28mm, minature package,The BR2F is a high voltage medium-current fast... -
![BR5F High Voltage Diode]()
BR5F High Voltage DiodeHigh voltage diode BR5F, 5KV/0.8 150nS, fast recovery diode, high voltage high current diode with miniature package Φ5*9/Φ1.28mm, minature package,The BR2F is a high voltage medium-current fast... -
![BR10F HV Diode]()
BR10F HV DiodeHigh voltage diode BR10F, 10KV/0.4 150nS, fast recovery diode, high voltage high current diode with miniature package Φ5*9/Φ1.28mm, minature package,The BR10F is a high voltage medium-current fast...
As one of the most professional high voltage high power fast recovery diode manufacturers and suppliers in China, we're featured by quality products and good price. Please rest assured to buy discount high voltage high power fast recovery diode for sale here and get quotation from our factory. We also accept customized orders.
