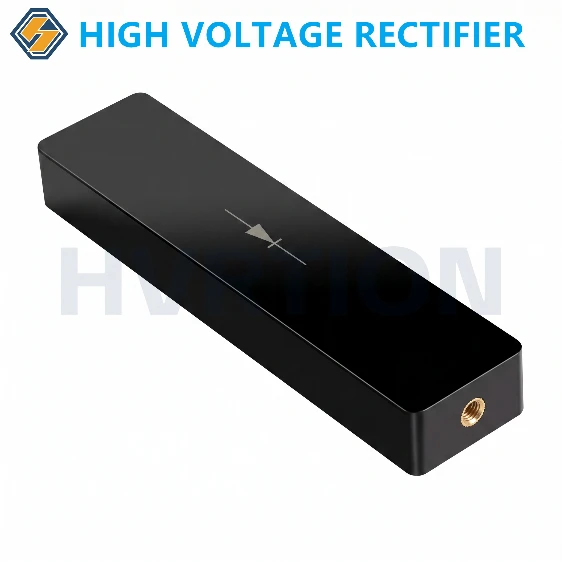

Big Current Fast HV Stacks

Feature:

● High current, low power dissipation

● Strong avalanche effect

● High-temperature performance, with an operating temperature of up to 160°C

Application:

Electrostatic dust removal, electrostatic spraying, air purification, ozone generators, dehydration in the petroleum and chemical industries, X-ray machines, laser medical power supplies,etc.

Type No.

Rated Values

Temp. Condition

Electrical Characteristics
[Ta=25℃, all are maximum values]

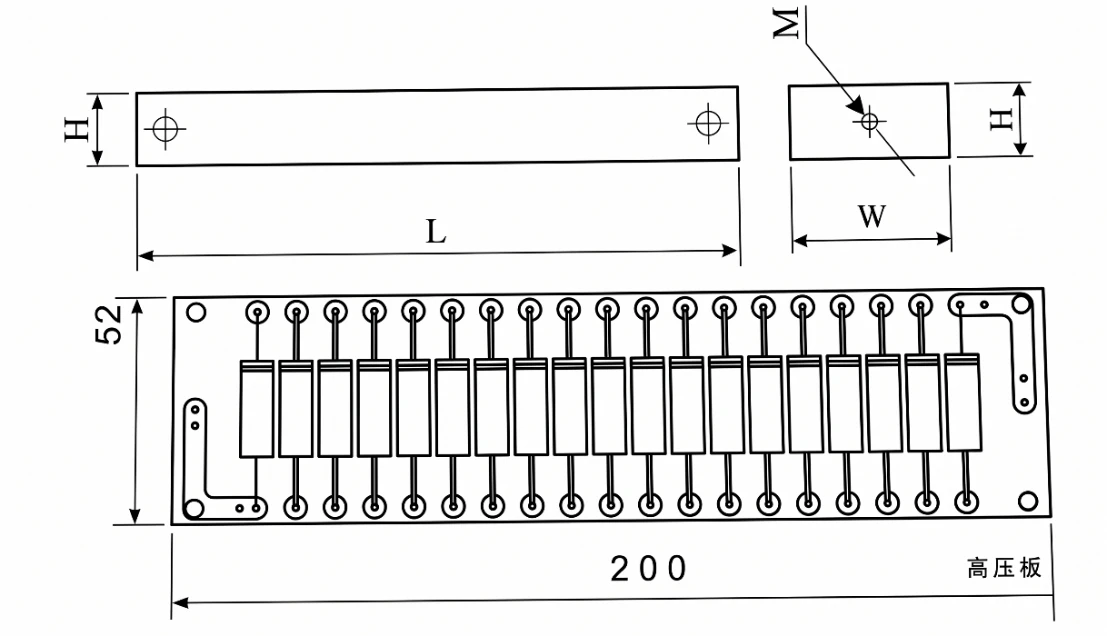

Dimension

VRRM

IF(AV)

IFSM

Tj

Tstg

VF

IR1

Trr(μS)

[VR=VRRM]

KV

A

A

℃

℃

V

μA

μS

2CLG5kv/5A

5

5

100

160

-40~175

6

5

0.15

80×25×16 M6

2CLG10kv/5A

10

5

100

160

-40~175

12

5

0.15

130×25×16 M6

2CLG30kv/3A

30

3

60

160

-40~175

32

5

0.15

100×62×26 M6

2CLG30kv/10A

30

10

200

160

-40~175

40

5

0.15

260×75×25 M6

2CLG50kv/5A

50

5

100

160

-40~175

60

5

0.15

200×62×26 M6

2CLG70kv/2A

70

2

50

160

-40~175

84

5

0.15

240×62×26 M6

2CLG100kv/2A

100

2

50

160

-40~175

120

5

0.15

280×90×26 M6

2CLG200kv/2A

200

2

50

160

-40~175

240

5

0.15

400×90×26 M6

2CLG200kv/2A

300

2

50

160

-40~175

360

5

0.15

400×90×26 M6
