Fast Recovery High Voltage Diode——200mA 6-30KV 100nS
|
|
Feature: |
|
● Small size, low VF ● High reliability, high Tj ● High surge capability, fast Trr |
|
|
Application: |
|
|
X-ray power supplies, laser power supplies, voltage multiplier circuits, microwave transmitter power supplies, etc. |
|
Type |
Rated Values |
Temp. Condition |
Electrical Characteristic |
Dimension |
|||||
|
VRRM |
IF(AV) |
IFSM |
Tj |
Tstg |
VF |
IR1 |
Trr |
φbody*L, φlead |
|
|
[IFM=200mA] |
[VR=VRRM] |
||||||||
|
KV |
mA |
A |
℃ |
℃ |
V |
μA |
μS |
mm |
|
|
2CLG2006 |
6 |
200 |
15 |
130 |
-40~+130 |
15 |
5 |
0.1 |
Φ4.2*15/Φ0.8 |
|
2CLG2008 |
8 |
200 |
15 |
130 |
-40~+130 |
20 |
5 |
0.1 |
Φ4.2*15/Φ0.8 |
|
2CLG2010 |
10 |
200 |
15 |
130 |
-40~+130 |
24 |
5 |
0.1 |
Φ4.2*15/Φ0.8 |
|
2CLG2012 |
12 |
200 |
15 |
130 |
-40~+130 |
28 |
5 |
0.1 |
Φ4.2*15/Φ0.8 |
|
2CLG0220R |
20 |
200 |
15 |
130 |
-40~+130 |
36 |
5 |
0.1 |
Φ7.5*22/Φ1.2 |
|
2CLG0230 |
30 |
200 |
15 |
130 |
-40~+130 |
46 |
5 |
0.1 |
Φ7.5*22/Φ1.2 |
|
CL02-20R |
20 |
200 |
15 |
130 |
-40~+130 |
50 |
5 |
0.1 |
Φ4.2*15/Φ0.8 |
|
HV2008 |
8 |
200 |
20 |
130 |
-40~+130 |
15 |
2 |
0.1 |
Φ4.2*15/Φ0.8 |
|
HV2010 |
10 |
200 |
20 |
130 |
-40~+130 |
18 |
2 |
0.1 |
Φ4.2*15/Φ0.8 |
|
HV2012 |
12 |
200 |
20 |
130 |
-40~+130 |
21.5 |
2 |
0.1 |
Φ4.2*15/Φ0.8 |
|
HV2015 |
15 |
200 |
20 |
130 |
-40~+130 |
26 |
2 |
0.1 |
Φ4.2*15/Φ0.8 |
-

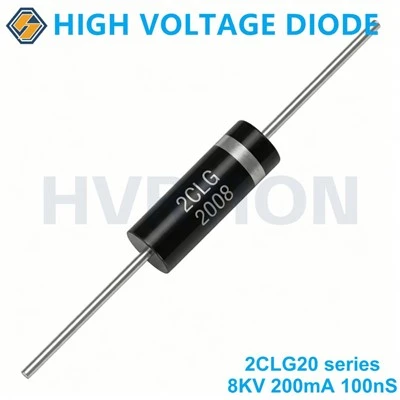

![2CLG20 Series HV Diode]()
2CLG20 Series HV Diode2CLG20 Series 6KV–30KV 200mA 100nS High Voltage Fast Recovery Diode, Available in compact axial-lead packages, for X-ray generators, laser power supplies, electrostatic precipitators, medical... -
![High Voltage Diode 200mA]()
High Voltage Diode 200mA2CL2012 High Voltage Fast Recovery Diode 12kV 200mA | X-Ray Power Supply Rectifier Diode for X-ray equipment, high-voltage power supplies, pulse power systems, and industrial rectification circuits.
