HVRTION Fast Recovery High Voltage Diode——20-50mA 8-30KV 80-100nS
|
|
Feature: |
|
● Small size, low VF ● High reliability, high Tj ● High surge capability, fast Trr |
|
|
Application: |
|
|
X-ray power supplies, laser power supplies, voltage multiplier circuits, microwave transmitter power supplies, etc. |
2CLG02 series 10-20KV 20-50mA 100nS High Voltage Diode
|
Type |
Rated Values |
Temp. Condition |
Electrical Characteristic |
Dimension |
|||||
|
VRRM |
IF(AV) |
IFSM |
Tj |
Tstg |
VFM |
IR1 |
Trr |
φbody*L, φlead |
|
|
[IFM=10mA] |
[VRM=VRRM] |
[IF=2mA IRM=4mA] |
|||||||
|
KV |
mA |
A |
℃ |
℃ |
V |
μA |
μS |
mm |
|
|
2CLG0210 |
10 |
20 |
2 |
120 |
-40~+120 |
24 |
2 |
0.1 |
Φ3*12/Φ0.6 |
|
2CLG0212 |
12 |
20 |
2 |
120 |
-40~+120 |
28 |
2 |
0.1 |
Φ3*12/Φ0.6 |
|
2CLG0214 |
14 |
20 |
2 |
120 |
-40~+120 |
32 |
2 |
0.1 |
Φ3*12/Φ0.6 |
|
2CLG0216 |
16 |
20 |
2 |
120 |
-40~+120 |
36 |
2 |
0.1 |
Φ3*12/Φ0.6 |
|
2CLG0218 |
18 |
20 |
2 |
120 |
-40~+120 |
40 |
2 |
0.1 |
Φ3*12/Φ0.6 |
|
2CLG0220 |
20 |
20 |
2 |
120 |
-40~+120 |
45 |
2 |
0.1 |
Φ3*12/Φ0.6 |
|
2CLG0320 |
20 |
30 |
2 |
120 |
-40~+120 |
45 |
2 |
0.1 |
Φ3*12/Φ0.6 |
|
2CLG0520 |
20 |
50 |
5 |
120 |
-40~+120 |
45 |
2 |
0.1 |
Φ3*12/Φ0.6 |
2CLG03 series 20-30KV 30mA High Voltage Diode
|
Type |
Rated Values |
Temp. Condition |
Electrical Characteristic |
Dimension |
|||||
|
VRRM |
IF(AV) |
IFSM |
Tj |
Tstg |
VFM |
IR1 |
Trr |
φbody*L, φlead |
|
|
[IFM=10mA] |
[VRM=VRRM] |
[IF=2mA IRM=4mA] |
|||||||
|
KV |
mA |
A |
℃ |
℃ |
V |
μA |
μS |
mm |
|
|
2CLG0320 |
20 |
30 |
3 |
120 |
-40~+120 |
41 |
2 |
0.1 |
Φ3*12/Φ0.6 |
|
2CLG0325 |
25 |
30 |
3 |
120 |
-40~+120 |
43 |
2 |
0.1 |
Φ3*12/Φ0.6 |
|
2CLG0330 |
30 |
30 |
3 |
120 |
-40~+120 |
45 |
2 |
0.1 |
Φ3*12/Φ0.6 |
RT03 series 8-30KV 30mA 100nS High Voltage Diode
|
Type |
Rated Values |
Temp. Condition |
Electrical Characteristic |
Dimension |
|||||
|
VRRM |
IF(AV) |
IFSM |
Tj |
Tstg |
VFM |
IR1 |
Trr |
φbody*L, φlead |
|
|
[IFM=10mA] |
[VRM=VRRM] |
[IF=2mA IRM=4mA] |
|||||||
|
KV |
mA |
A |
℃ |
℃ |
V |
μA |
μS |
mm |
|
|
RT0308 |
8 |
30 |
2 |
120 |
-40~+120 |
25 |
5 |
0.1 |
φ3*8/φ0.6 |
|
RT0310 |
10 |
30 |
2 |
120 |
-40~+120 |
14 |
5 |
0.1 |
Φ3*12/Φ0.6 |
|
RT0315 |
15 |
30 |
2 |
120 |
-40~+120 |
26 |
5 |
0.1 |
Φ3*12/Φ0.6 |
|
RT0318 |
18 |
30 |
2 |
120 |
-40~+120 |
40 |
5 |
0.1 |
Φ3*12/Φ0.6 |
|
RT0320 |
20 |
30 |
2 |
120 |
-40~+120 |
40 |
5 |
0.1 |
Φ3*12/Φ0.6 |
|
RT0325S |
25 |
30 |
2 |
120 |
-40~+120 |
58 |
5 |
0.1 |
Φ3*12/Φ0.6 |
|
RT0325 |
25 |
30 |
2 |
120 |
-40~+120 |
58 |
5 |
0.1 |
φ4.2*15/φ0.8 |
|
RT0330 |
30 |
30 |
5 |
120 |
-40~+120 |
59 |
5 |
0.1 |
Φ3*12/Φ0.6 |
2CL8 seies 8-30KV 30mA 100nS High Voltage Diode
|
Type |
Rated Values |
Temp. Condition |
Electrical Characteristic |
Dimension |
|||||
|
VRRM |
IF(AV) |
IFSM |
Tj |
Tstg |
VFM |
IR1 |
Trr |
φbody*L, φlead |
|
|
[IF=IF(AV)] |
[VR=VRRM] |
[IF=2mA IRM=4mA] |
|||||||
|
KV |
mA |
A |
℃ |
℃ |
V |
μA |
μS |
mm |
|
|
2CL81 |
8 |
30 |
3 |
120 |
-40~+120 |
20 |
2 |
0.1 |
Φ3*8/Φ0.6 |
|
2CL82 |
10 |
30 |
3 |
120 |
-40~+120 |
25 |
2 |
0.1 |
Φ3*8/Φ0.6 |
|
2CL83 |
12 |
30 |
3 |
120 |
-40~+120 |
28 |
2 |
0.1 |
Φ3*10/Φ0.6 |
|
2CL85 |
16 |
30 |
3 |
120 |
-40~+120 |
36 |
2 |
0.1 |
Φ3*12/Φ0.6 |
|
2CL87 |
20 |
30 |
3 |
120 |
-40~+120 |
40 |
2 |
0.1 |
Φ3*12/Φ0.6 |
|
2CL89 |
30 |
30 |
3 |
120 |
-40~+120 |
46 |
2 |
0.1 |
Φ4.5*15/Φ1.0 |
RT05 series 8-20KV 50mA 100nS High Voltage Diode
|
Type |
Rated Values |
Temp. Condition |
Electrical Characteristic |
Dimension |
|||||
|
Dimension |
|||||||||
|
VRRM |
IF(AV) |
IFSM |
Tj |
Tstg |
VF |
IR1 |
Trr |
φbody*L, φlead |
|
|
[IF=IF(AV)] |
[VR=VRRM] |
||||||||
|
KV |
mA |
A |
℃ |
℃ |
V |
μA |
μS |
mm |
|
|
RT0508S |
8 |
50 |
3 |
150 |
-40~+150 |
20 |
2 |
0.1 |
Φ3*8/Φ0.6 |
|
2CL510R |
10 |
50 |
5 |
120 |
-40~+120 |
30 |
5 |
0.1 |
Φ3*8/Φ0.6 |
|
2CL512R |
12 |
50 |
5 |
120 |
-40~+120 |
30 |
5 |
0.15 |
Φ3*8/Φ0.6 |
|
RT0515 |
15 |
50 |
3 |
150 |
-40~+150 |
32 |
2 |
0.1 |
Φ4.2*15/Φ0.8 |
|
2CL516 |
16 |
50 |
5 |
120 |
-40~+120 |
40 |
2 |
0.1 |
Φ3*12/Φ0.6 |
|
RT0518 |
18 |
50 |
3 |
150 |
-40~+150 |
40 |
2 |
0.1 |
Φ3*12/Φ0.6 |
|
2CLG0520 |
20 |
50 |
3 |
150 |
-40~+150 |
45 |
2 |
0.1 |
Φ3*12/Φ0.6 |
HVRT series 8-30KV 30mA High Voltage Diode
|
Type |
Rated Values |
Temp. Condition |
Electrical Characteristic |
Dimension |
|||||
|
VRRM |
IF(AV) |
IFSM |
Tj |
Tstg |
VFM |
IR1 |
Trr |
φbody*L, φlead |
|
|
[IF=IF(AV)] |
[VR=VRRM] |
[IF=2mA IRM=4mA] |
|||||||
|
KV |
mA |
A |
℃ |
℃ |
V |
μA |
μS |
mm |
|
|
HVRT080 |
8 |
30 |
1 |
150 |
-40~+150 |
15 |
2 |
0.08 |
Φ3*8/Φ0.6 |
|
HVRT100 |
10 |
30 |
1 |
150 |
-40~+150 |
17 |
2 |
0.08 |
Φ3*10/Φ0.6 |
|
HVRT120 |
12 |
30 |
1 |
150 |
-40~+150 |
25 |
2 |
0.08 |
Φ3*10/Φ0.6 |
|
HVRT150 |
15 |
30 |
1 |
150 |
-40~+150 |
33 |
2 |
0.08 |
Φ3*10/Φ0.6 |
|
HVRT200 |
20 |
30 |
1 |
150 |
-40~+150 |
42 |
2 |
0.08 |
Φ3*12/Φ0.6 |
|
HVRT250 |
25 |
30 |
1 |
150 |
-40~+150 |
54 |
2 |
0.08 |
Φ3*12/Φ0.6 |
|
HVRT300 |
30 |
30 |
1 |
150 |
-40~+150 |
60 |
2 |
0.08 |
Φ3*12/Φ0.6 |
DD series 6-20KV 30mA 80-100nS High Voltage Diode
|
Type |
Rated Values |
Temp. Condition |
Electrical Characteristic |
Dimension |
|||||
|
VRRM |
IF(AV) |
IFSM |
Tj |
Tstg |
VFM |
IR1 |
Trr |
φbody*L, φlead |
|
|
[IF=IF(AV)] |
[VR=VRRM] |
[IF=2mA IRM=4mA] |
|||||||
|
KV |
mA |
A |
℃ |
℃ |
V |
μA |
μS |
mm |
|
|
DD600 |
6 |
30 |
1 |
150 |
-40~+150 |
15 |
2 |
0.08 |
φ2.5*6.5/φ0.5 |
|
DD800 |
8 |
30 |
1 |
150 |
-40~+150 |
20 |
2 |
0.08 |
φ2.5*6.5/φ0.5 |
|
DD900 |
9 |
30 |
1 |
150 |
-40~+150 |
25 |
2 |
0.10 |
φ2.5*6.5/φ0.5 |
|
DD1000 |
10 |
30 |
1 |
150 |
-40~+150 |
20 |
2 |
0.10 |
Φ3*12/Φ0.6 |
|
DD1200 |
12 |
30 |
1 |
150 |
-40~+150 |
25 |
2 |
0.10 |
Φ3*12/Φ0.6 |
|
DD1400 |
14 |
30 |
1 |
150 |
-40~+150 |
30 |
2 |
0.10 |
Φ3*12/Φ0.6 |
|
DD1600 |
16 |
30 |
1 |
150 |
-40~+150 |
35 |
2 |
0.10 |
Φ3*12/Φ0.6 |
|
DD1800 |
18 |
30 |
1 |
150 |
-40~+150 |
40 |
2 |
0.10 |
Φ3*12/Φ0.6 |
|
DD2000 |
20 |
30 |
1 |
150 |
-40~+150 |
40 |
2 |
0.08 |
Φ3*12/Φ0.6 |
-

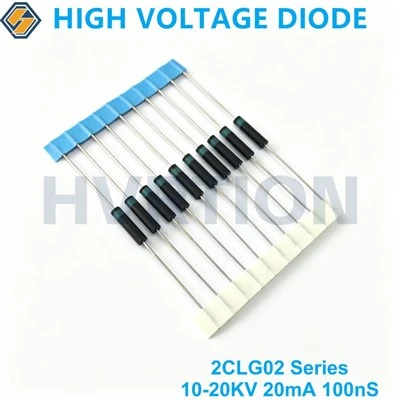

![2CLG02 Series HV Diode]()
2CLG02 Series HV Diode2CLG02 Series 10-30KV 20mA 100nS High Voltage Fast Recovery Rectifier Diode miniature package for High-voltage switching power supplies, X-ray generators and medical equipment. -
![2CLG03 Series HV Diode]()
2CLG03 Series HV Diode2CLG03 Series High Voltage Fast Recovery Rectifier Diode，20kV–30kV 30mA High Voltage Silicon Diode for X-Ray, Laser Power Supply, Industrial HV Systems & Pulse Applications
Product... -
![RT03 Series HV Diode]()
RT03 Series HV DiodeRT03 Series 8–30KV 30mA 100nS High Voltage Fast Recovery Diode for high voltage power supply, medical equipment, electrostatic spraying, etc. -
![2CL8 Series HV Diode]()
2CL8 Series HV Diode2CL8 Series 8–30KV 30mA 120nS High Voltage Fast Recovery Diode. The 2CL8 series (models 2CL81 to 2CL89) are high voltage fast recovery rectifier diodes designed for medium‑power, high‑frequency... -
![RT05 Series HV Diode]()
RT05 Series HV DiodeThe RT05 Series is a family of high-voltage fast-recovery rectifier diodes designed for high-voltage power supplies, high-frequency rectification, industrial electronic equipment, electrostatic... -

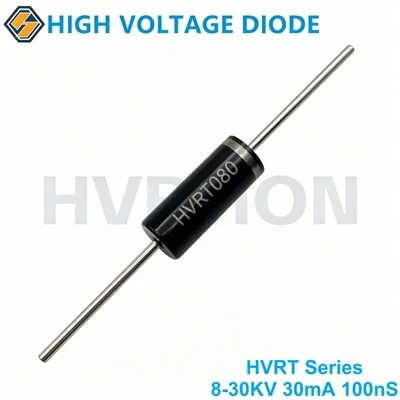

![HVRT Series HV Diode]()
HVRT Series HV DiodeHVRT Series 8–30KV / 30mA / 80nS High Voltage Fast Recovery Diode. The HVRT series comprises high voltage fast recovery rectifier diodes designed for demanding high‑frequency, high‑voltage... -
![DD Series HV Diode]()
DD Series HV DiodeDD Series 6-20KV 20-35mA 80-150nS High Voltage Fast Recovery Diode.
The DD Series high voltage diodes are designed for high-frequency, high-voltage rectification applications. Covering a... -
![Fast Recovery HV Rectifier Diode]()
Fast Recovery HV Rectifier DiodeHigh voltage diode 2CL81, 8KV/30mA 100nS, fast recovery diode, high voltage low current diode with miniature package Φ3*8/Φ0.6mm, minature package,ideal for applications requiring high... -
![High Frequency High Voltage Diode]()
High Frequency High Voltage DiodeHigh voltage diode 2CL82, 10KV/30mA 100nS, fast recovery diode, high voltage low current diode with miniature package Φ3*8/Φ0.6mm, minature package,ideal for applications requiring high... -

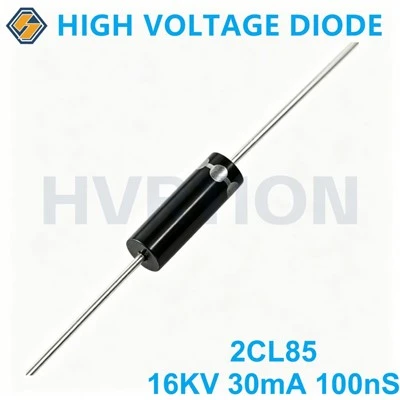

![High Voltage Fast Recovery Rectifier]()
High Voltage Fast Recovery RectifierHigh voltage diode 2CL85, 16KV/30mA 100nS, fast recovery diode, high voltage low current diode with miniature package Φ3*8/Φ0.6mm, minature package,ideal for applications requiring high... -
![Fast Recovery High Voltage Diodes]()
Fast Recovery High Voltage DiodesHigh voltage diode 2CL83, 12KV/30mA 100nS, fast recovery diode, high voltage low current diode with miniature package Φ3*8/Φ0.6mm, minature package,ideal for applications requiring high... -
![High Voltage Fast Recovery Diode]()
High Voltage Fast Recovery DiodeHigh voltage diode 2CL87, 20KV/30mA 100nS, fast recovery diode, high voltage low current diode with miniature package Φ3*12/Φ0.6mm, minature package,designed for Critical components in X-ray...
