High Voltage Capacitor
High Voltage Ceramic Disc Capacitor
|
No. |
Type |
Rated Capacity |
Rated Voltage |
Dielectric Loss |
Package |
Permissible Capacity Deviation |
Temp. Coefficent |
Temp. Range |
Dimension (mm) |
Width (mm) |
Mounting Type (plug-in) |
|
4 |
N20KV101K |
100PF |
20KV |
ceramic |
Epoxy Encapsulation |
±10% |
N4700 |
-25℃～+85℃ |
8.5*11.0 |
11 |
|
|
N20KV151K |
150PF |
20KV |
ceramic |
Epoxy Encapsulation |
±10% |
N4700 |
-25℃～+85℃ |
9.5*10.0 |
10 |
||
|
N20KV221K |
220PF |
20KV |
ceramic |
Epoxy Encapsulation |
±10% |
N4700 |
-25℃～+85℃ |
10.0*10.0 |
10 |
||
|
N20KV331K |
330PF |
20KV |
ceramic |
Epoxy Encapsulation |
±10% |
N4700 |
-25℃～+85℃ |
12.0*8.0 |
8 |
||
|
N20KV441K |
440PF |
20KV |
ceramic |
Epoxy Encapsulation |
±10% |
N4700 |
-25℃～+85℃ |
12.8*9.0 |
9 |
|
|
|
N30KV102K |
1000PF |
30KV |
ceramic |
Epoxy Encapsulation |
±10% |
N4700 |
-25℃～+85℃ |
22.5*11.5 |
11.5 |
||
|
N30KV501K |
550PF |
30KV |
ceramic |
Epoxy Encapsulation |
±10% |
N4700 |
25℃～+85℃ |
18*10 |
10 |
|
-

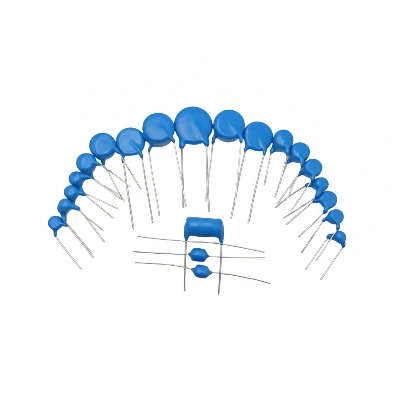

![High Voltage Radial Ceramic Capacitor]()
High Voltage Radial Ceramic CapacitorN4700 Series High Voltage Ceramic Disc Capacitors, 20kV–30kV N4700 High Voltage Ceramic Capacitors | High Voltage Disc Capacitor Manufacturer
HVRTION N4700 Series High Voltage Ceramic...
As one of the most professional n4700 series hv disc capacitor manufacturers and suppliers in China, we're featured by quality products and good price. Please rest assured to buy discount n4700 series hv disc capacitor for sale here and get quotation from our factory. We also accept customized orders.
