Description

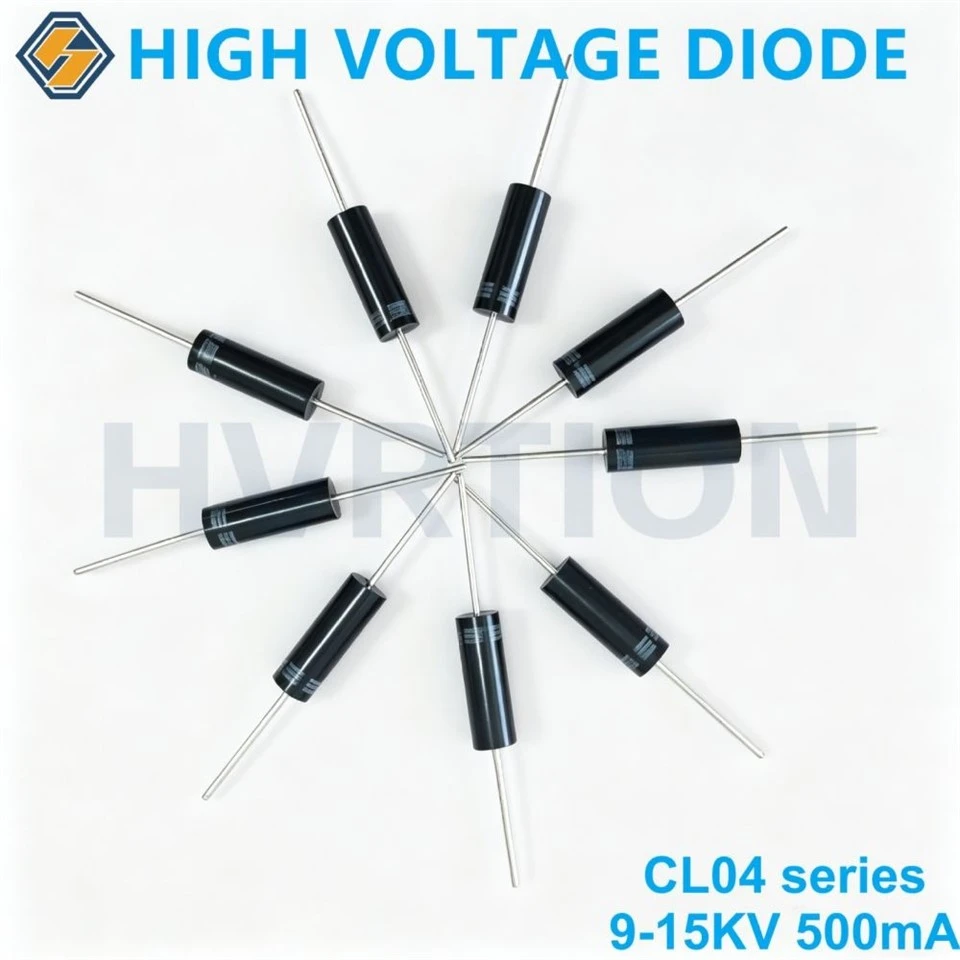

The CL04 Series high voltage rectifier diodes feature 9kV–15kV reverse voltage, 500mA forward current, low leakage current, and industrial-grade reliability. Ideal for laser power supplies, electrostatic equipment, medical devices, and high-voltage power systems.
Compared with conventional high-voltage diodes, the CL04 Series provides higher current handling capability while maintaining low reverse leakage current and stable forward voltage characteristics.
Designed for OEM manufacturers and high-voltage equipment integrators, the CL04 Series combines robust construction with consistent quality to meet the requirements of industrial and commercial applications.
Product Series
|
Type |
Rated Values |
Temp. Condition |
Electrical Characteristics |
Dimension |
||||||
|
VRRM |
IF(AV) |
IFSM |
IRSM |
Tj |
Tstg |
VF |
IR1 |
Trr |
φbody*L, φlead |
|
|
[IF=IF(AV] |
[VR=VRRM] |
|||||||||
|
KV |
mA |
A |
A |
℃ |
℃ |
V |
μA |
μS |
mm |
|
|
CL04-09 |
9 |
500 |
30 |
-- |
130 |
-40~+130 |
10 |
5 |
--- |
Φ7.5*22/Φ1.2 |
|

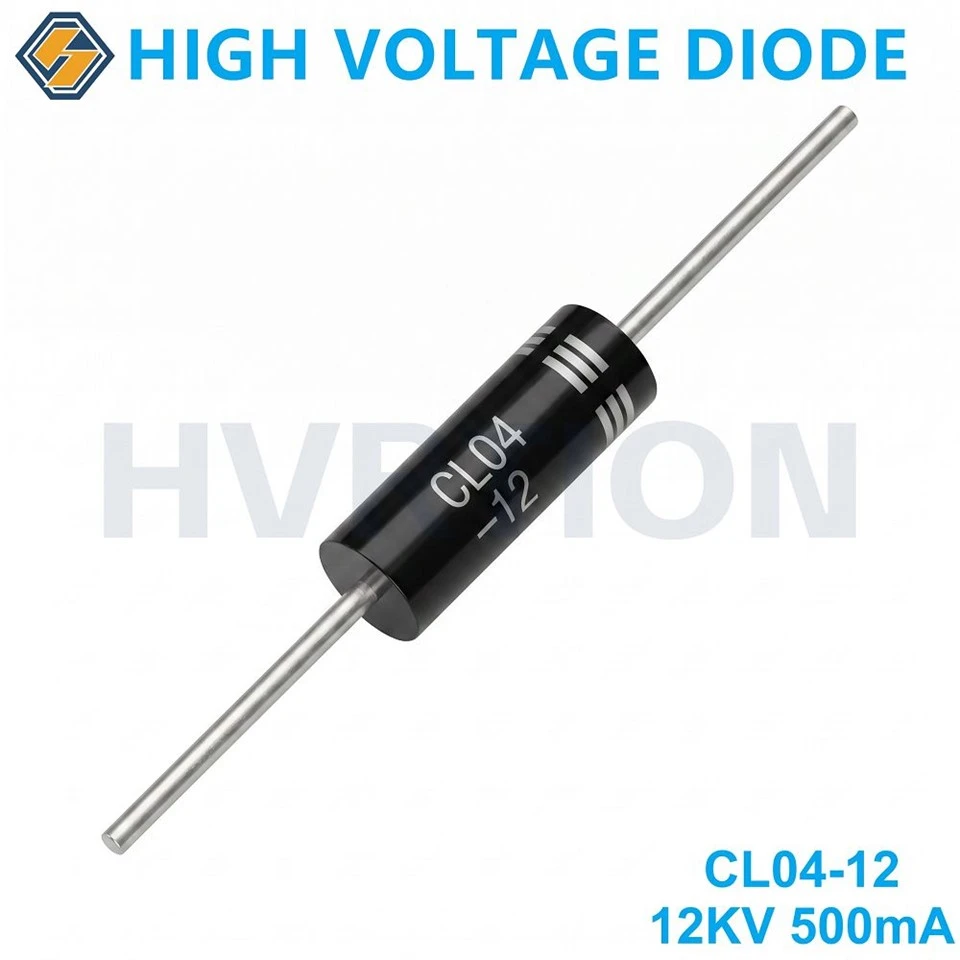

CL04-12 |
12 |
500 |
30 |
-- |
130 |
-40~+130 |
12 |
5 |
--- |
Φ7.5*22/Φ1.2 |
|
CL04-12A |
12 |
500 |
30 |
0.1 |
130 |
-40~+130 |
12 |
5 |
--- |
Φ7.5*22/Φ1.2 |
|
CL04-15 |
15 |
500 |
30 |
-- |
130 |
-40~+130 |
13 |
5 |
--- |
Φ7.5*22/Φ1.2 |
Key Features
High Reverse Voltage 9-15KV
Suitable for high-voltage rectification circuits requiring excellent insulation performance.
Higher Current Capacity
Compared with standard 500mA high-voltage diodes, the CL04 Series supports:
* 500mA average forward current
* 30A surge current capability
Ideal for higher-power high-voltage power supplies.
3.Low Reverse Leakage ≤5μA
Benefits include:
* Lower power consumption
* Reduced heat generation
* Improved system efficiency
* Enhanced long-term stability
Wide Operating Temperature
* Junction Temperature: 130°C
* Storage Temperature: -40°C to +130°C
Designed for demanding industrial environments.
Rugged Axial Package
Standard Package:
* Body Diameter: Φ7.5mm
* Body Length: 22mm
* Lead Diameter: Φ1.2mm
Easy installation in
* High-voltage modules
* PCB assemblies
* Power supply systems
* Industrial equipment
Typical Applications
The CL04 Series is widely used in:
High Voltage Power Supplies
* High Voltage DC Power Supplies
* Switching HV Power Supplies
* Voltage Multiplier Circuits
* Capacitor Charging Systems
01
Electrostatic Equipment
* Electrostatic Precipitators
* Electrostatic Spray Guns
* Powder Coating Equipment
* Static Elimination Systems
02
Medical Equipment
* X-Ray Generators
* CT High Voltage Modules
* Medical Imaging Equipment
03
Laser Systems
* CO₂ Laser Power Supplies
* Laser Excitation Systems
* Industrial Laser Equipment
04
Industrial Equipment
* High Voltage Test Equipment
* High Frequency Generators
* Industrial Automation
* Scientific Instruments
05
Why Choose CL04 Series?
* High current capacity (500mA)
* Excellent high-voltage reliability
* Low leakage current
* Stable silicon junction technology
* Industrial-grade quality
* Long operating life
* Competitive pricing
* OEM & ODM manufacturing support
OEM & ODM Services
We provide customized solutions including:
* Voltage ratings from 5kV to 50kV+
* Current customization
* Fast recovery versions
* Avalanche-resistant designs
* Special package dimensions
* Lead length customization
* High-voltage rectifier assemblies
* Customer branding and private label services
FAQ
Q: Can the CL04 Series be used in laser power supplies?
A: Yes. The 500mA current capability makes the CL04 Series particularly suitable for CO₂ laser power supplies, capacitor charging systems, and high-voltage excitation circuits.
Q: Is OEM manufacturing available?
A: Yes. We support customized voltage ratings, electrical parameters, package dimensions, and OEM/ODM production.
