PCB High Voltage Rectifier——100-200KV 0.3-5A 100nS Fast Recovery
|
|
Feature: |
|
● High current, low power dissipation ● High avalanche breakdown voltage ● Superior high-temperature performance ● Customizable dimensions |
|
|
Application: |
|
|
Electrostatic dust removal, electrostatic spraying, air purification, ozone generators, dehydration in the petroleum and chemical industries, X-ray machines, laser medical power supplies, etc. |
|
Type No. |
Rated Values |
Temp. Condition |
Electrical Characteristics |
|||||
|
VRRM |
IF(AV) |
IFSM |
Tj |
Tstg |
VF |
IR1 |
Trr |
|
|
[VR=VRRM] |
||||||||
|
KV |
A |
A |
℃ |
℃ |
V |
μA |
μS |
|
|
2CLG100KV/0.5A |
100 |
0.5 |
15 |
130 |
-40~150 |
170 |
5 |
0.1 |
|
2CLG150KV/0.5A |
150 |
0.5 |
15 |
130 |
-40~150 |
255 |
5 |
0.1 |
|
2CLG200KV/0.5A |
200 |
0.5 |
15 |
130 |
-40~150 |
340 |
5 |
0.1 |
|
2CLG100KV/3.0A |
100 |
3 |
125 |
150 |
-40~150 |
170 |
5 |
0.075 |
|
2CLG150KV/3.0A |
150 |
3 |
125 |
150 |
-40~150 |
255 |
5 |
0.075 |
|
2CLG200KV/3.0A |
200 |
3 |
125 |
150 |
-40~150 |
340 |
5 |
0.075 |
|
2CLG100KV/5.0A |
100 |
5 |
150 |
150 |
-40~150 |
170 |
5 |
0.075 |
|
2CLG150KV/5.0A |
150 |
5 |
150 |
150 |
-40~150 |
255 |
5 |
0.075 |
|
2CLG200KV/5.0A |
200 |
5 |
150 |
150 |
-40~150 |
340 |
5 |
0.075 |
-

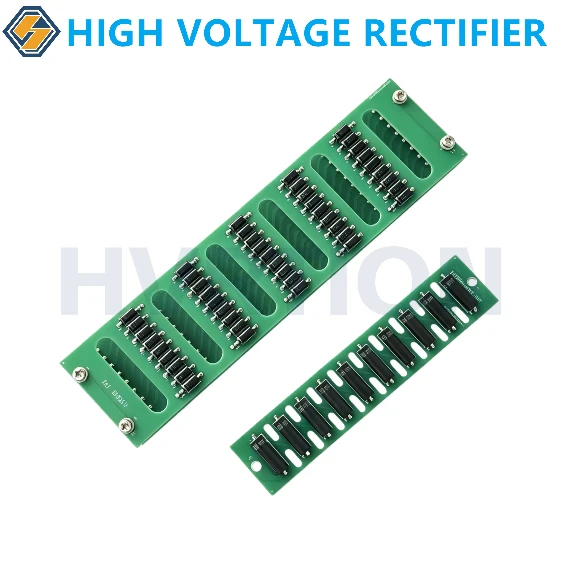

![Fast Recovery HV Diode Board]()
Fast Recovery HV Diode BoardPCB High Voltage Rectifier Series (100kV–200kV, 0.3A–5A) High Voltage PCB Rectifier Module OEM & Custom Solutions for Industrial, Medical & Electrostatic Power Supplies
As one of the most professional pcb high frequency high voltage rectifier manufacturers and suppliers in China, we're featured by quality products and good price. Please rest assured to buy discount pcb high frequency high voltage rectifier for sale here and get quotation from our factory. We also accept customized orders.
Fast Recovery HV Diode Board, pcb high frequency high voltage rectifier, pcb high voltage rectifier assembly
