Fast Recovery High Voltage Diode——5mA 3-20KV 80nS
|
|
Feature: |
|
● Small size, low VF ● High reliability, high Tj ● High surge capability, fast Trr |
|
|
Application: |
|
|
FBT, negative ion generators, ozone power supplies, copiers, cathode ray tubes for medical and computer use, laser power supplies, etc. |
|
Type |
Rated Values |
Temp. Condition |
Electrical Characteristic |
Dimension |
|||||
|
VRRM |
IF(AV) |
IFSM |
Tj |
Tstg |
VFM |
IR1 |
Trr |
Φbody*L, Φlead |
|
|
[IFM=10mA] |
[VR=VRRM] |
[IF=2mA IRM=4mA] |
|||||||
|
KV |
mA |
A |
℃ |
℃ |
V |
μA |
μS |
mm |
|
|
2CL703 |
3 |
5 |
0.5 |
120 |
-40~+120 |
12 |
2 |
0.08 |
Φ2.5*5/Φ0.5 |
|
2CL704 |
4 |
5 |
0.5 |
120 |
-40~+120 |
15 |
2 |
0.08 |
Φ2.5*5/Φ0.5 |
|
2CL70 |
6 |
5 |
0.5 |
120 |
-40~+120 |
20 |
2 |
0.08 |
Φ3*8/Φ0.6 |
|
2CL71 |
8 |
5 |
0.5 |
120 |
-40~+120 |
25 |
2 |
0.08 |
Φ3*8/Φ0.6 |
|
2CL72 |
10 |
5 |
0.5 |
120 |
-40~+120 |
30 |
2 |
0.08 |
Φ3*10/Φ0.6 |
|
2CL73 |
12 |
5 |
0.5 |
120 |
-40~+120 |
37.5 |
2 |
0.08 |
Φ3*10/Φ0.6 |
|
2CL74 |
14 |
5 |
0.5 |
120 |
-40~+120 |
42.5 |
2 |
0.08 |
Φ3*10/Φ0.6 |
|
2CL75 |
16 |
5 |
0.5 |
120 |
-40~+120 |
50 |
2 |
0.08 |
Φ3*12/Φ0.6 |
|
2CL76 |
18 |
5 |
0.5 |
120 |
-40~+120 |
56 |
2 |
0.08 |
Φ3*12/Φ0.6 |
|
2CL77 |
20 |
5 |
0.5 |
120 |
-40~+120 |
62.5 |
2 |
0.08 |
Φ3*12/Φ0.6 |
|
2CL70A |
6 |
5 |
0.5 |
120 |
-40~+120 |
20 |
2 |
0.08 |
Φ2.5*6.5/Φ0.5 |
|
2CL71A |
8 |
5 |
0.5 |
120 |
-40~+120 |
25 |
2 |
0.08 |
Φ2.5*6.5/Φ0.5 |
|
2CL72A |
10 |
5 |
0.5 |
120 |
-40~+120 |
30 |
2 |
0.08 |
Φ2.5*10/Φ0.5 |
|
2CL73A |
12 |
5 |
0.5 |
120 |
-40~+120 |
37.5 |
2 |
0.08 |
Φ2.5*10/Φ0.5 |
|
2CL74A |
14 |
5 |
0.5 |
120 |
-40~+120 |
42.50 |
2 |
0.1 |
Φ2.5*10/Φ0.5 |
|
2CL75A |
16 |
5 |
0.5 |
120 |
-40~+120 |
50 |
2 |
0.08 |
Φ2.5*10/Φ0.5 |
|
2CL70M |
6 |
5 |
0.5 |
120 |
-40~+120 |
20 |
2 |
0.08 |
Φ2*5/Φ0.5 |
|
2CL71M |
8 |
5 |
0.5 |
120 |
-40~+120 |
30 |
2 |
0.08 |
Φ2*5/Φ0.5 |
|
2CL72M |
10 |
5 |
0.5 |
120 |
-40~+120 |
36 |
2 |
0.08 |
Φ2*5/Φ0.5 |
|
2CL71T |
8 |
5 |
0.5 |
120 |
-40~+120 |
36 |
2 |
0.08 |
Φ3*8/Φ0.6 |
|
2CL72T |
10 |
5 |
0.5 |
120 |
-40~+120 |
42 |
2 |
0.08 |
Φ3*8/Φ0.6 |
|
2CL73T |
12 |
5 |
0.5 |
120 |
-40~+120 |
48 |
2 |
0.08 |
Φ3*8/Φ0.6 |
|
2CL71SH |
8 |
5 |
0.5 |
120 |
-40~+120 |
30 |
2 |
0.08 |
Φ3*8/Φ0.6 |
|
2CL73SH |
12 |
5 |
0.5 |
120 |
-40~+120 |
40 |
2 |
0.08 |
Φ3*10/Φ0.6 |
|
2CL71ASH |
8 |
5 |
0.5 |
120 |
-40~+120 |
30 |
2 |
0.08 |
Φ2.5*6.5/Φ0.5 |
|
2CL73ASH |
12 |
5 |
0.5 |
120 |
-40~+120 |
40 |
2 |
0.08 |
Φ2.5*10/Φ0.5 |
Fast Recovery High Voltage Diode——10mA 3-24KV 80nS
|
|
Feature: |
|
● Small size, low VF ● High reliability, high Tj ● High surge capability, fast Trr |
|
|
Application: |
|
|
FBT, negative ion generators, ozone power supplies, copiers, cathode ray tubes for medical and computer use, laser power supplies, etc. |
|
Type |
Rated Values |
Temp. Condition |
Electrical Characteristic |
Dimension |
|||||
|
VRRM |
IF(AV) |
IFSM |
Tj |
Tstg |
VFM |
IR1 |
Trr |
Φbody*L, Φlead |
|
|
[IFM=10mA] |
[VR=VRRM] |
[IF=2mA IRM=4mA] |
|||||||
|
KV |
mA |
A |
℃ |
℃ |
V |
μA |
μS |
mm |
|
|
RT703M |
3 |
10 |
0.5 |
120 |
-40~+120 |
15 |
2 |
0.08 |
Φ2.5*5/Φ0.5 |
|
RT704M |
4 |
10 |
0.5 |
120 |
-40~+120 |
20 |
2 |
0.08 |
Φ2.5*5/Φ0.5 |
|
RT70M |
6 |
10 |
0.5 |
120 |
-40~+120 |
20 |
2 |
0.08 |
Φ2.5*5/Φ0.5 |
|
RT71M |
8 |
10 |
0.5 |
120 |
-40~+120 |
25 |
2 |
0.08 |
Φ2.5*5/Φ0.5 |
|
RT70 |
6 |
10 |
0.5 |
120 |
-40~+120 |
24 |
2 |
0.08 |
Φ3*8/Φ0.6 |
|
RT71 |
8 |
10 |
0.5 |
120 |
-40~+120 |
30 |
2 |
0.08 |
Φ3*8/Φ0.6 |
|
RT72 |
10 |
10 |
0.5 |
120 |
-40~+120 |
32 |
2 |
0.08 |
Φ3*10/Φ0.6 |
|
RT73 |
12 |
10 |
0.5 |
120 |
-40~+120 |
35 |
2 |
0.08 |
Φ3*10/Φ0.6 |
|
RT74 |
14 |
10 |
0.5 |
120 |
-40~+120 |
40 |
2 |
0.08 |
Φ3*10/Φ0.6 |
|
RT75 |
16 |
10 |
0.5 |
120 |
-40~+120 |
45 |
2 |
0.08 |
Φ3*10/Φ0.6 |
|
RT76 |
18 |
10 |
0.5 |
120 |
-40~+120 |
50 |
2 |
0.08 |
Φ3*12/Φ0.6 |
|
RT77 |
20 |
10 |
0.5 |
120 |
-40~+120 |
60 |
2 |
0.08 |
Φ3*12/Φ0.6 |
|
RT70A |
6 |
10 |
0.5 |
120 |
-40~+120 |
20 |
2 |
0.08 |
Φ2.5*6.5/Φ0.5 |
|
RT71A |
8 |
10 |
0.5 |
120 |
-40~+120 |
25 |
2 |
0.08 |
Φ2.5*6.5/Φ0.5 |
|
RT72A |
10 |
10 |
0.5 |
120 |
-40~+120 |
32 |
2 |
0.08 |
Φ2.5*10/Φ0.5 |
|
RT73A |
12 |
10 |
0.5 |
120 |
-40~+120 |
35 |
2 |
0.08 |
Φ2.5*10/Φ0.5 |
|
RT74A |
14 |
10 |
0.5 |
120 |
-40~+120 |
40 |
2 |
0.08 |
Φ2.5*10/Φ0.5 |
|
RT75A |
16 |
10 |
0.5 |
120 |
-40~+120 |
45 |
2 |
0.08 |
Φ2.5*10/Φ0.5 |
|
RT200A |
20 |
10 |
0.5 |
120 |
-40~+120 |
45 |
2 |
0.15 |
Φ3*12/Φ0.6 |
|
RT240A |
24 |
10 |
0.5 |
120 |
-40~+120 |
45 |
2 |
0.15 |
Φ3*12/Φ0.6 |
-
![2CL7 Series HV Diode]()
2CL7 Series HV Diode2CL7 series 6-25KV 5mA 80nS High voltage diode, HV rectifier low current diode with miniature package, used for laser cutting, high-voltage electrostatic spraying, industrial electrostatic equipment. -

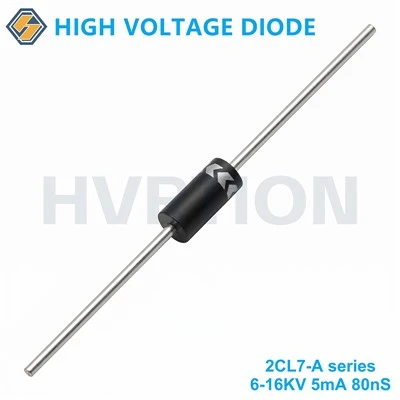

![2CL7-A Series HV Diode]()
2CL7-A Series HV Diode2CL7-A series 6-16KV 5mA 80nS miniature High voltage diode, HV rectifier low current diode with diameter 2.5mm package, used for laser cutting, high-voltage electrostatic spraying, industrial... -
![2CL7-M Series HV Diode]()

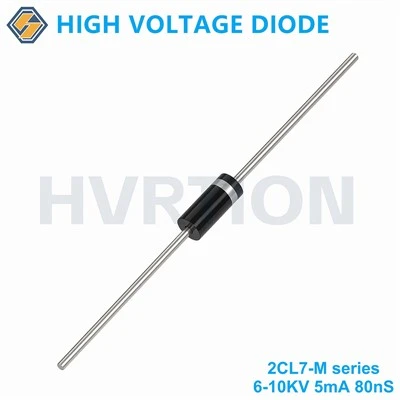

2CL7-M Series HV Diode2CL7-M series 6-10KV 5mA 80nS subminiature High Voltage Rectifier – φ2.5mm×5mm, 0.5mm Lead Diameter – Designed for Ultra-Compact Ionizers & Portable HV Devices -
![2CL7-SH Series HV Diode]()

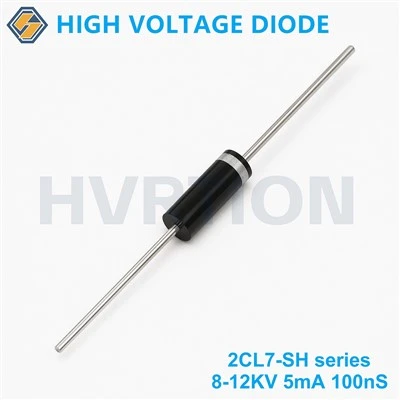

2CL7-SH Series HV Diode2CL7-SH series 8-10KV 5mA 100nS miniature High Voltage fast recovery diode – Designed for CRT flyback -
![RT7 Series HV Diode]()

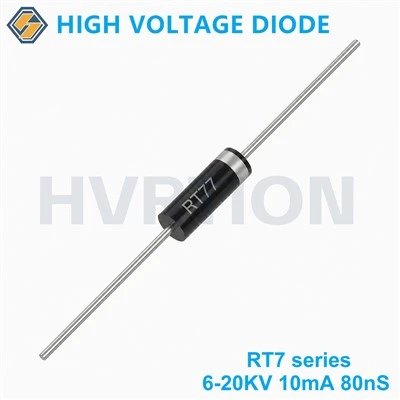

RT7 Series HV DiodeRT7 Series 6KV-20KV 10mA 80nS High Voltage Fast Recovery Diode miniature for higher-power HV modules, CRT flyback applications, and industrial high voltage power supplies. -
![RT7-A Series HV Diode]()

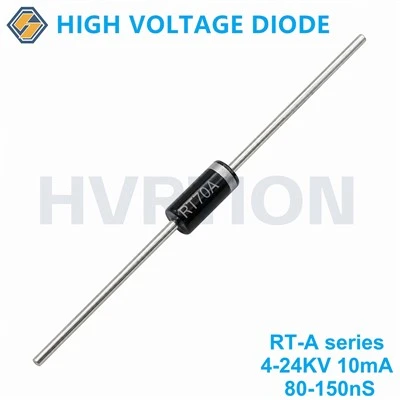

RT7-A Series HV DiodeRT7-A Series 10mA 6KV-24KV 80nS High Voltage Fast Recovery Diode subminiature for compact ionizers, portable HV modules, and CRT flyback applications. -
![RT7-M Series HV Diode]()

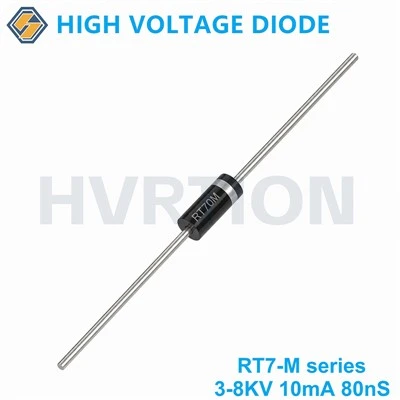

RT7-M Series HV DiodeRT7-M Series Ultra-Miniature High Voltage Fast Recovery Diode – 3KV to 8KV / 10mA / 80ns – φ2.5mm × 5mm Body with φ0.5mm Leads for portable ionizers, miniature HV modules, and space-constrained... -
![5mA High Voltage Diode]()

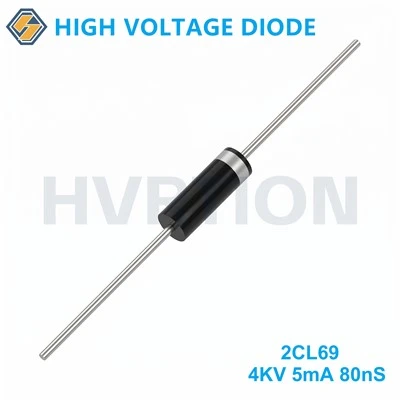

5mA High Voltage DiodeHigh voltage diode 2CL69, 4KV/5mA 80nS, fast recovery diode, high voltage low current diode with miniature package 3*8 mm, used for laser cutting, high-voltage electrostatic spraying, industrial... -
![2CL70 High Voltage Diode]()
2CL70 High Voltage DiodeHigh voltage diode 2CL70, 6KV/5mA 80nS, fast recovery diode, high voltage low current diode with miniature package 3*8 mm, used for laser cutting, high-voltage electrostatic spraying, industrial... -
![2CL71 High Voltage Diode]()
2CL71 High Voltage DiodeHigh voltage diode 2CL71, 8KV/5mA 80nS, fast recovery diode, high voltage low current diode with miniature package 3*8 mm, minature package. -
![2CL72 High Voltage Rectifier]()

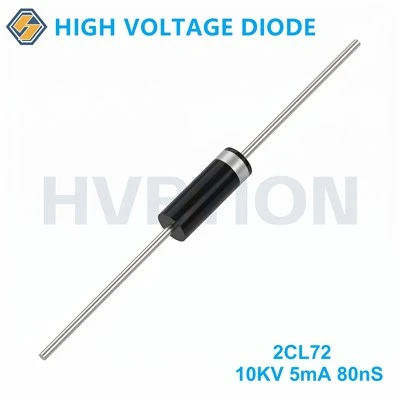

2CL72 High Voltage RectifierHigh voltage diode 2CL72, 10KV/5mA 80nS, fast recovery diode, high voltage low current diode with miniature package 3*10 mm, minature package -
![2CL73 Diode High Voltage]()

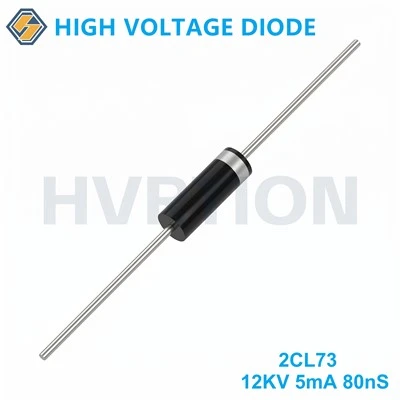

2CL73 Diode High VoltageHigh voltage diode 2CL73, 12KV/5mA 80nS, fast recovery diode, high voltage low current diode with miniature package 3*10mm, minature package,designed for high-frequency, high-voltage applications...
