High Voltage Ceramic Disc Capacitor
|
No. |
Type |
Rated Capacity |
Rated Voltage |
Dielectric Loss |
Package |
Permissible Capacity Deviation |
Temp. Coefficent |
Temp. Range |
Dimension (mm) |
Width (mm) |
Mounting Type (plug-in) |
|
1 |
NP03KV101K |
100PF |
3KV |
NP0 |
Epoxy Encapsulation |
±10% |
C0G,NP0 |
-25℃～+85℃ |
21.0*5.0 |
5 |
|
|
NP02KV201K |
200PF |
2KV |
NP0 |
Epoxy Encapsulation |
±10% |
C0G,NP0 |
-25℃～+85℃ |
21.0*4.5 |
4.5 |
||
|
2 |
SL6KV470J |
470PF |
6KV |
SL |
Epoxy Encapsulation |
±10% |
SL |
25℃～+85℃ |
10*5 |
5 |
|
|
SL20KV10K |
10PF |
20KV |
ceramic |
Epoxy Encapsulation |
±10% |
SL |
-25℃～+85℃ |
7.5*8.5 |
8.5 |
||
|
SL20KV20K |
20PF |
20KV |
ceramic |
Epoxy Encapsulation |
±10% |
SL |
-25℃～+85℃ |
10.0*9.0 |
9 |
||
|
SL35KV30K |
30PF |
35KV |
ceramic |
Epoxy Encapsulation |
±10% |
SL |
-25℃～+85℃ |
14.0*12.0 |
12 |
||
|
SL20KV20K |
20PF |
20KV |
ceramic |
Epoxy Encapsulation |
±10% |
SL |
-25℃～+85℃ |
9.6*7.5 |
7.5 |
||
|
3 |
Y5T15KV222K |
2200PF |
15KV |
Y5T |
Epoxy Encapsulation |
±10% |
Y5T |
-25℃～+85℃ |
22*8 |
8 |
|
|
Y5T15KV471K |
470PF |
15KV |
Y5T |
Epoxy Encapsulation |
±10% |
Y5T |
-25℃～+85℃ |
10*8 |
8 |
||
|
Y5T15KV501K |
500PF |
15KV |
Y5T |
Epoxy Encapsulation |
±10% |
Y5T |
-25℃～+85℃ |
10*7.5 |
7.5 |
||
|
Y5T15KV681K |
680PF |
15KV |
Y5T |
Epoxy Encapsulation |
±10% |
Y5T |
-25℃～+85℃ |
12.8*7.5 |
7.5 |
||
|
Y5T20KV102K |
1100PF |
20KV |
Y5T |
Epoxy Encapsulation |
±10% |
Y5T |
-25℃～+85℃ |
18*8= |
8 |
||
|
T3KV103M |
10000PF |
3KV |
Y5T |
Epoxy Encapsulation |
±20% |
Y5T |
-25℃～+85℃ |
27*5.5 |
5.5 |
||
|
4 |
N20KV101K |
100PF |
20KV |
ceramic |
Epoxy Encapsulation |
±10% |
N4700 |
-25℃～+85℃ |
8.5*11.0 |
11 |
|
|
N20KV151K |
150PF |
20KV |
ceramic |
Epoxy Encapsulation |
±10% |
N4700 |
-25℃～+85℃ |
9.5*10.0 |
10 |
||
|
N20KV221K |
220PF |
20KV |
ceramic |
Epoxy Encapsulation |
±10% |
N4700 |
-25℃～+85℃ |
10.0*10.0 |
10 |
||
|
N20KV331K |
330PF |
20KV |
ceramic |
Epoxy Encapsulation |
±10% |
N4700 |
-25℃～+85℃ |
12.0*8.0 |
8 |
||
|
N20KV441K |
440PF |
20KV |
ceramic |
Epoxy Encapsulation |
±10% |
N4700 |
-25℃～+85℃ |
12.8*9.0 |
9 |
|
|
|
N30KV102K |
1000PF |
30KV |
ceramic |
Epoxy Encapsulation |
±10% |
N4700 |
-25℃～+85℃ |
22.5*11.5 |
11.5 |
||
|
N30KV501K |
550PF |
30KV |
ceramic |
Epoxy Encapsulation |
±10% |
N4700 |
25℃～+85℃ |
18*10 |
10 |
|
|
|
5 |
Y5U3KV472M |
4700PF |
3KV |
Y5U |
Epoxy Encapsulation |
±20% |
Y5U |
-25℃～+85℃ |
12.0*5.0 |
5 |
|
|
Y5U6KV222M |
2200PF |
6KV |
Y5U |
Epoxy Encapsulation |
±20% |
Y5U |
-25℃～+85℃ |
9.5*4.5 |
4.5 |
||
|
Y5U30KV102M |
1000PF |
30KV |
Y5U |
Epoxy Encapsulation |
±20% |
Y5U |
-25℃～+85℃ |
12.0*12.0 |
12 |
||
|
Y5U30KV332M |
3300PF |
30KV |
Y5U |
Epoxy Encapsulation |
±20% |
Y5U |
-25℃～+85℃ |
29*14.5 |
14.5 |
||
|
6 |
X7R15KV102K |
1000PF |
15KV |
X7R |
Epoxy Encapsulation |
±10% |
X7R |
-30℃～+85℃ |
12.0*5.0 |
5 |
|
|
X7R15KV202K |
2000PF |
15KV |
X7R |
Epoxy Encapsulation |
±10% |
X7R |
-30℃～+85℃ |
23*8.5 |
8.5 |
||
|
X7R30KV102K |
1000PF |
30KV |
X7R |
Epoxy Encapsulation |
±10% |
X7R |
-30℃～+85℃ |
9.5*4.5 |
4.5 |
||
|
X7R30KV302K |
3000PF |
30KV |
X7R |
Epoxy Encapsulation |
±10% |
X7R |
-30℃～+85℃ |
34*14 |
14 |
||
|
X7R15KV501K |
500PF |
15KV |
X7R |
Epoxy Encapsulation |
±10% |
X7R |
-30℃～+85℃ |
12.0*12.0 |
12 |
|
|
|
X7R6KV242M |
2400PF |
6KV |
X7R |
Epoxy Encapsulation |
±10% |
X7R |
-30℃～+85℃ |
18*5 |
5 |
||
|
7 |
X5R15KV1500M |
1500PF |
15KV |
X5R |
Epoxy Encapsulation |
±10% |
X5R |
30℃～+85℃ |
22*9 |
9 |
|
|
8 |
BXN10KV102K |
1000PF |
10KV |
BXN |
Epoxy Encapsulation |
±10% |
BXN |
30℃～+85℃ |
22*6.5 |
6.5 |
|
|
BXN12KV221K |
220PF |
12KV |
BXN |
Epoxy Encapsulation |
±10% |
BXN |
30℃～+85℃ |
13.5*8.0 |
8.0 |
||
|
BXN15KV821K |
820PF |
15KV |
BXN |
Epoxy Encapsulation |
±10% |
BXN |
30℃～+85℃ |
28*10 |
10 |
||
|
9 |
Y5P20KV222K |
2200PF |
20KV |
Y5P |
Epoxy Encapsulation |
±10% |
Y5P |
30℃～+85℃ |
28*11.5 |
11.5 |
-

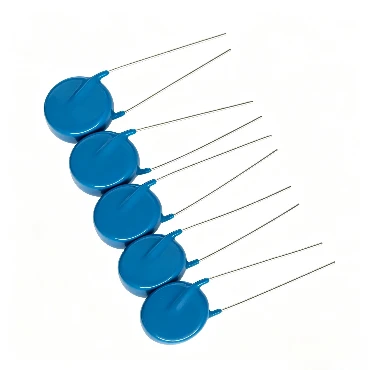

![High Voltage Leaded Capacitor]()
High Voltage Leaded CapacitorX7R High Voltage Ceramic Disc Capacitor | 6kV-30kV Stable High Voltage Capacitor Manufacturer
HVRTION X7R high voltage ceramic disc capacitors offer high stability, low loss and reliable... -

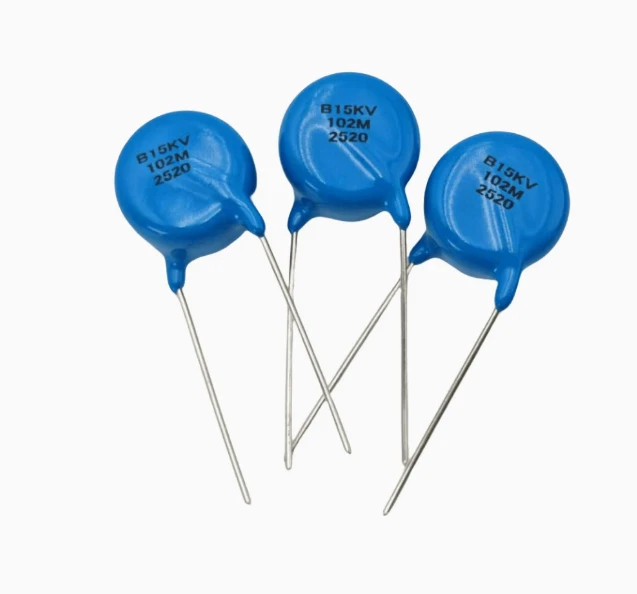

![High Voltage Ceramic Capacitor]()
High Voltage Ceramic CapacitorNP0 High Voltage Ceramic Disc Capacitors, Ultra-Stable C0G Ceramic Capacitors | 2kV–3kV Precision High Voltage Capacitors | HVRTION & OEM Supplier
HVRTION manufactures NP0 (C0G) high voltage... -

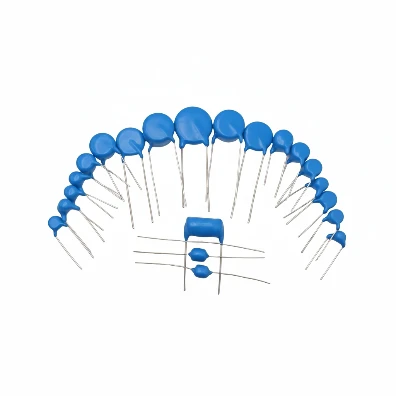

![High Voltage Disc Capacitor]()
High Voltage Disc CapacitorSL High Voltage Ceramic Disc Capacitors, High Voltage Low-Loss Ceramic Capacitors | 6kV–35kV | Manufacturer & OEM Supplier
HVRTION manufactures SL high voltage ceramic disc capacitors... -

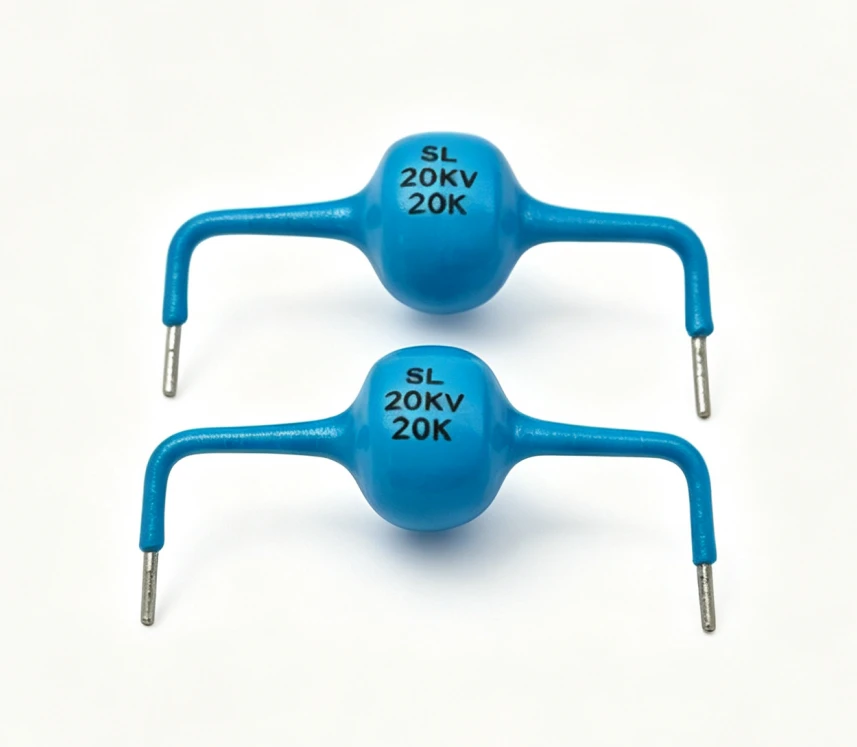

![High Voltage Radial Lead Capacitor]()
High Voltage Radial Lead CapacitorY5T Series High Voltage Ceramic Disc Capacitors, 15kV–20kV High Voltage Ceramic Capacitors | High Capacitance Ceramic Disc Capacitor Manufacturer
HVRTION Y5T Series High Voltage... -
![High Voltage Radial Ceramic Capacitor]()
High Voltage Radial Ceramic CapacitorN4700 Series High Voltage Ceramic Disc Capacitors, 20kV–30kV N4700 High Voltage Ceramic Capacitors | High Voltage Disc Capacitor Manufacturer
HVRTION N4700 Series High Voltage Ceramic... -
![HV Radial Disc Capacitor]()
HV Radial Disc CapacitorY5U High Voltage Ceramic Disc Capacitor | 3kV-30kV High Capacitance Ceramic Capacitor Manufacturer
HVRTION Y5U series high voltage ceramic disc capacitors provide high capacitance,... -
![HV Through-hole Ceramic Capacitor]()
HV Through-hole Ceramic CapacitorX5R High Voltage Ceramic Disc Capacitor | 15kV 1500pF High Voltage Ceramic Capacitor Supplier
HVRTION X5R series high voltage ceramic disc capacitor provides compact design, high... -
![Epoxy Coated High Voltage Capcitor]()
Epoxy Coated High Voltage CapcitorBxN High Voltage Ceramic Capacitor | 10kV 15kV High Voltage Disc Capacitor for for X-ray/CT medical equipment, laser systems, high voltage power supplies, and voltage multiplier... -
![High Voltage Disc Ceramic Capacitor]()
High Voltage Disc Ceramic CapacitorUltra-high Voltage Ceramic Capacitor Y5P20KV222K
The Y5P Series High Voltage Ceramic Capacitors are EIA Class II dielectric disc capacitors designed for demanding high-voltage...
As one of the most professional high voltage ceramic disc capacitor manufacturers and suppliers in China, we're featured by quality products and good price. Please rest assured to buy discount high voltage ceramic disc capacitor for sale here and get quotation from our factory. We also accept customized orders.
