Fast Recovery High Voltage Diode——350mA-450mA 6-30KV 100nS
|
|
Feature: |
|
● Small size, low VF ● High reliability, high Tj ● High surge capability, fast Trr |
|
|
Application: |
|
|
X-ray power supplies, laser power supplies, voltage multiplier circuits, microwave transmitter power supplies, etc. |
CL-350mA series 8-15KV 350mA 100nS
|
Type |
Rated Values |
Temp. Condition |
Electrical Characteristic |
Dimension |
|||||
|
VRRM |
IF(AV) |
IFSM |
Tj |
Tstg |
VF |
IR1 |
Trr |
φbody*L, φlead |
|
|
[IFM=350mA] |
[VR=VRRM] |
||||||||
|
KV |
mA |
A |
℃ |
℃ |
V |
μA |
μS |
mm |
|
|
CL08-08T |
8 |
350 |
15 |
130 |
-40~+130 |
16 |
5 |
0.1 |
Φ7.5*22/Φ1.2 |
|
CL08-08 |
8 |
350 |
15 |
130 |
-40~+130 |
12 |
5 |
0.1 |
Φ7.5*22/Φ1.2 |
|
CL08-09 |
9 |
350 |
15 |
130 |
-40~+130 |
13 |
5 |
0.1 |
Φ7.5*22/Φ1.2 |
|
CL08-10T |
10 |
350 |
15 |
130 |
-40~+130 |
21 |
5 |
0.1 |
Φ7.5*22/Φ1.2 |
|
CL08-12T |
12 |
350 |
15 |
130 |
-40~+130 |
22 |
5 |
0.1 |
Φ7.5*22/Φ1.2 |
|
CL08-08C |
8 |
350 |
15 |
130 |
-40~+130 |
13 |
5 |
0.1 |
Φ4.5*15/Φ1.0 |
|
CL08-10C |
10 |
350 |
15 |
130 |
-40~+130 |
21 |
5 |
0.1 |
Φ4.5*15/Φ1.0 |
|
CL05-15S |
15 |
350 |
40 |
160 |
-40~+160 |
50 |
5 |
0.15 |
Φ4.5*15/Φ1.2 |
2CLG35 series 7.5-18KV 350mA 100nS
|
Type |
Rated Values |
Temp. Condition |
Electrical Characteristic |
Dimension |
|||||
|
VRRM |
IF(AV) |
IFSM |
Tj |
Tstg |
VF |
IR1 |
Trr |
φbody*L, φlead |
|
|
[IFM=350mA] |
[VR=VRRM] |
||||||||
|
KV |
mA |
A |
℃ |
℃ |
V |
μA |
μS |
mm |
|
|
2CLG3508 |
7.5 |
350 |
15 |
130 |
-40~+130 |
13.5 |
5 |
0.1 |
Φ7.5*22/Φ1.2 |
|
2CLG3508T |
8 |
350 |
15 |
130 |
-40~+130 |
14 |
5 |
0.1 |
Φ7.5*22/Φ1.2 |
|
2CLG3506 |
6 |
350 |
15 |
130 |
-40~+130 |
15 |
5 |
0.1 |
Φ4.2*15/Φ0.8 |
|
2CLG3512 |
12 |
350 |
15 |
130 |
-40~+130 |
28 |
5 |
0.1 |
Φ4.2*15/Φ0.8 |
|
2CLG3518 |
18 |
350 |
15 |
130 |
-40~+130 |
40 |
5 |
0.1 |
Φ4.2*15/Φ0.8 |
|
RTH-08 |
8 |
350 |
30 |
130 |
-40~+130 |
12 |
10 |
0.15 |
Φ7.5*22/Φ1.2 |
THF series 8-30KV 350mA 80nS
|
Type |
Rated Values |
Temp. Condition |
Electrical Characteristic |
Dimension |
|||||
|
VRRM |
IF(AV) |
IFSM |
Tj |
Tstg |
VF |
IR1 |
Trr |
φbody*L, φlead |
|
|
[IFM=200mA] |
[VR=VRRM] |
||||||||
|
KV |
mA |
A |
℃ |
℃ |
V |
μA |
μS |
mm |
|
|
TH08F |
8 |
350 |
30 |
130 |
-40~+130 |
18 |
2 |
0.08 |
φ7.5*22/Φ1.2 |
|
TH10F |
10 |
350 |
30 |
130 |
-40~+130 |
20 |
2 |
0.08 |
φ7.5*22/Φ1.2 |
|
TH12F |
12 |
350 |
30 |
130 |
-40~+130 |
24 |
2 |
0.08 |
φ7.5*22/Φ1.2 |
|
TH15F |
15 |
350 |
30 |
130 |
-40~+130 |
28 |
2 |
0.08 |
φ7.5*22/Φ1.2 |
|
TH20F |
20 |
350 |
30 |
130 |
-40~+130 |
30 |
2 |
0.08 |
φ7.5*22/Φ1.2 |
|
TH25F |
25 |
350 |
30 |
130 |
-40~+130 |
40 |
2 |
0.08 |
φ7.5*22/Φ1.2 |
|
TH30F |
30 |
350 |
30 |
130 |
-40~+130 |
48 |
2 |
0.08 |
φ7.5*22/Φ1.2 |
HV37 series 8-30KV 150-450mA 80nS
|
Type |
Rated Values |
Temp. Condition |
Electrical Characteristic |
Dimension |
|||||
|
VRRM |
IF(AV) (mA) |
IFSM |
Tj |
Tstg |
VF |
IR1 |
Trr |
φbody*L, φlead |
|
|
[IFM=350mA] |
[VR=VRRM] |
||||||||
|
KV |
mA |
A |
℃ |
℃ |
V |
μA |
μS |
mm |
|
|
HV37-08 |
8 |
450 |
30 |
150 |
-55~160 |
18 |
2 |
0.08 |
Φ4.2*15/Φ0.8 |
|
HV37-10 |
10 |
400 |
30 |
150 |
-55~160 |
20 |
2 |
0.08 |
Φ4.2*15/Φ0.8 |
|
HV37-12 |
12 |
350 |
30 |
150 |
-55~160 |
24 |
2 |
0.08 |
Φ4.2*15/Φ0.8 |
|
HV37-15 |
15 |
300 |
30 |
150 |
-55~160 |
28 |
2 |
0.08 |
Φ4.2*15/Φ0.8 |
|
HV37-20 |
20 |
200 |
30 |
150 |
-55~160 |
33 |
2 |
0.08 |
Φ4.2*15/Φ0.8 |
|
HV37-30 |
30 |
150 |
30 |
150 |
-55~160 |
40 |
2 |
0.08 |
Φ4.2*15/Φ0.8 |
-
![CL 350mA Fast Recovery HV Diode]()
CL 350mA Fast Recovery HV DiodeCL-350mA series 8-15KV 350mA 0.1μs High Voltage Fast Recovery Rectifier Diode for HV Power Supplies -
![2CLG35 Series HV Diodes]()
2CLG35 Series HV DiodesHigh Voltage Fast Recovery Diode 2CLG35 Series 6kV–18kV 350mA | 0.1μs Fast HV Rectifier Diodes for X-Ray & Power Supply -

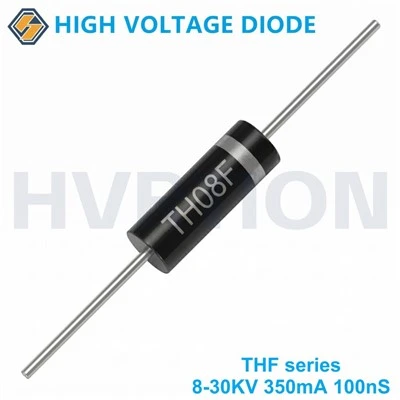

![THF Series HV Diode]()
THF Series HV DiodeTH Series 8KV-30KV 350mA 80ns High Voltage Fast Recovery Diodes 30A Surge HVRTION fast recovery diode, high voltage rectifier for medical imaging, industrial processing, pulsed power, and high... -
![HV37 Series Fast Recovery Diode]()
HV37 Series Fast Recovery DiodeHV37 Series 8KV-30KV 150-450mA 80ns High Voltage Fast Recovery Diodes 30A Surge -55°C to +160°C HVRTION for medical, industrial, pulsed power, aerospace, and high reliability systems. -
![HV37-08 Diode]()
HV37-08 DiodeHV37-08 8KV 450mA Fast Recovery High Voltage Diodes HV37 Series 8-30KV medium current 100nS Fast Recovery High Voltage Diodes for HV Rectifier Solutions -
![High Speed HV Diode]()
-
![Fast Recovery HV Rectifier]()

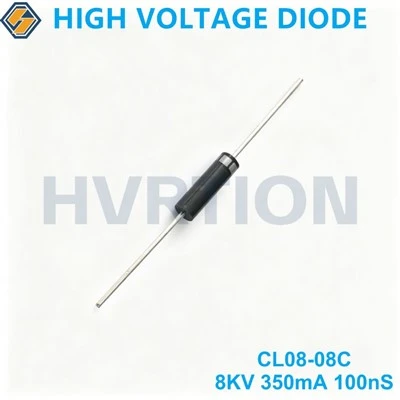

Fast Recovery HV RectifierCL08-08C Fast Recovery High Voltage Diode 8kV 350mA | High Voltage Rectifier Diode
