Description
HVRTION manufactures custom High Voltage Bridge Rectifiers including Half Wave, Full Wave, Three Phase, and Fast Recovery High Voltage Rectifier Bridges. Voltage up to 300kV+, high current capability, low leakage, epoxy encapsulated, OEM & ODM customization for X-ray, electrostatic, laser, charging, and industrial high voltage power supplies.

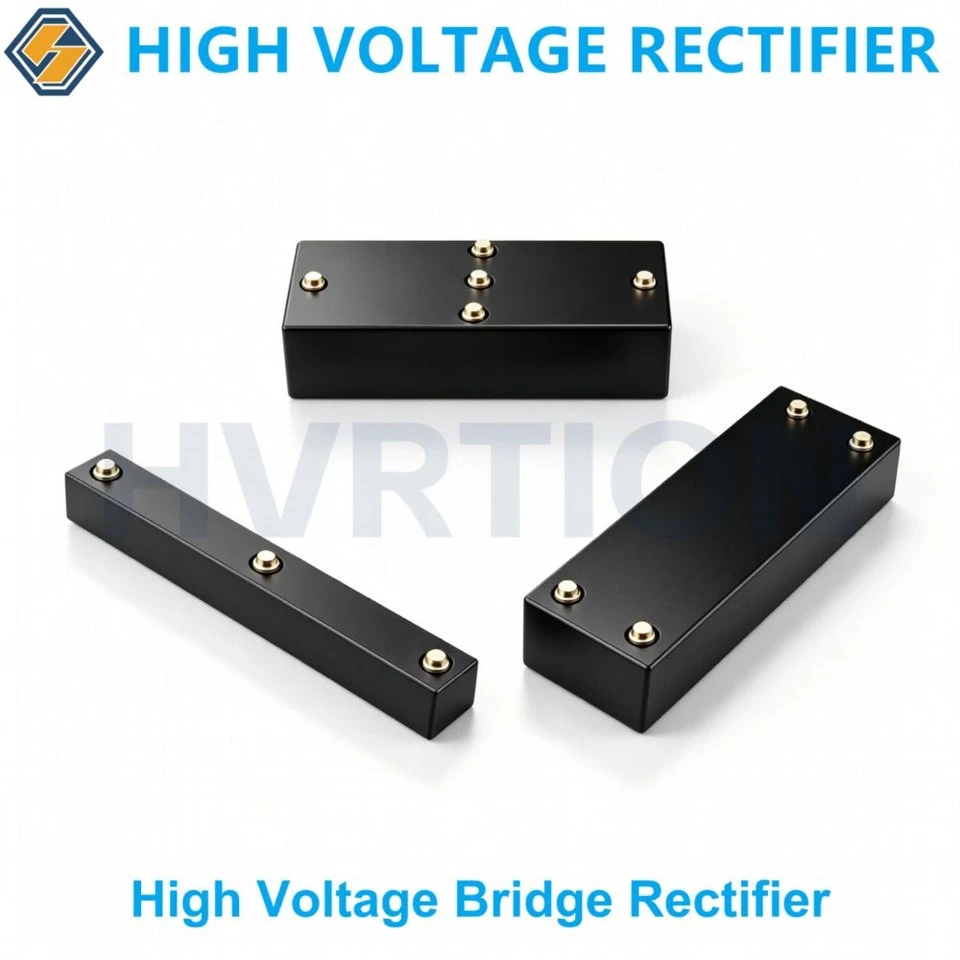

High Voltage Bridge Rectifier Manufacturer
HVRTION specializes in the design and manufacture of High Voltage Bridge Rectifiers for industrial high-voltage power conversion systems. Our bridge rectifiers are built using high-performance high voltage silicon stacks and fast recovery rectifier technology, providing excellent electrical insulation, superior surge capability, and long-term reliability.
Unlike standard bridge rectifiers available on the market, HVRTION focuses on customized high-voltage rectifier bridge solutions, allowing customers to specify voltage, current, recovery speed, package size, cooling method, and terminal configuration according to their equipment requirements.
Whether you require a standard bridge or a completely customized rectifier assembly, our engineering team can develop the optimal solution for your application.
Product Series
HVRTION offers a complete range of High Voltage Bridge Rectifiers.
1.Half Wave High Voltage Rectifier Bridge
Designed for simple high-voltage rectification circuits where compact structure and cost efficiency are priorities.
Suitable for:
* High Voltage DC Power Supplies
* Capacitor Charging
* Electrostatic Equipment
* Laboratory Instruments
2.Full Wave High Voltage Rectifier Bridge
Provides higher rectification efficiency and smoother DC output with reduced ripple.
Ideal for:
* Laser Power Supplies
* X-ray Generators
* Medical Equipment
* Industrial HV Power Supplies
3.Three Phase High Voltage Rectifier Bridge
Designed for industrial three-phase power systems requiring high output power and continuous operation.
Applications include:
* Electrostatic Precipitators
* High Power DC Supplies
* Industrial Rectifiers
* Water Treatment Systems
* High Voltage Test Equipment
4.Fast Recovery Half Wave High Voltage Rectifier Bridge
Built using ultra-fast recovery silicon stacks to reduce switching losses.
Recommended for:
* High Frequency Power Supplies
* Pulse Power Systems
* High Speed Charging Circuits
5.Fast Recovery Full Wave High Voltage Rectifier Bridge
Optimized for high-frequency switching power supplies requiring low recovery losses.
Applications include:
* Medical Laser Systems
* RF Power Supplies
* Plasma Equipment
* High Frequency HV Generators
6.Fast Recovery Three Phase High Voltage Rectifier Bridge
Designed for demanding industrial applications requiring maximum efficiency under continuous operation.
Typical applications include:
* High Power Electrostatic Systems
* Industrial HV Converters
* High Voltage Charging Equipment
* Particle Accelerators
Product Features
✔ High Voltage up to 300kV+
✔ Current Ratings from 100mA to 20A+
✔ Fast Recovery Technology Available
✔ Ultra Low Reverse Leakage Current
✔ High Surge Current Capability
✔ Excellent Avalanche Performance
✔ Low Power Dissipation
✔ Excellent Thermal Conductivity
✔ High Insulation Strength
✔ Epoxy Resin Encapsulation
✔ Compact Mechanical Structure
✔ Long Service Life
✔ Stable Performance Under Harsh Environments
Why Choose HVRTION?
Professional High Voltage Solution Provider
With years of experience in high-voltage semiconductor technology, HVRTION supplies bridge rectifiers for customers worldwide.
Every product undergoes:
* 100% Electrical Testing
* High Voltage Insulation Testing
* Aging Test
* Temperature Test
* Reliability Verification
Our products are widely exported to Europe, North America, South Korea, Japan, India, Southeast Asia, and the Middle East.
OEM & ODM Customization Services
- We Don't Just Sell Standard Products - We Build Rectifiers Around Your Design
- One of HVRTION's biggest advantages is custom engineering.
- Customers can customize nearly every electrical and mechanical parameter.
Mechanical Customization
* Housing Dimensions
* Epoxy Encapsulation
* Mounting Holes
* Terminal Positions
* Screw Terminal Size
* High Humidity Protection
Cooling Solutions
Available with:
* Natural Air Cooling
* Forced Air Cooling
* Aluminum Heat Sink
* Oil Immersion Design
Special Functional Customization
We can develop custom bridge rectifiers for:
* Pulse High Voltage Systems
* Fast Charging Systems
* High Frequency Switching Supplies
* High Temperature Operation
* Continuous Duty Applications
* Outdoor Equipment
* Explosion-proof Equipment
Typical Applications
HVRTION High Voltage Bridge Rectifiers are widely used in:
* Electrostatic Precipitators (ESP)
* Electrostatic Spray Equipment
* X-ray Machines
* Medical Imaging Equipment
* CT Systems
* Laser Power Supplies
* CO₂ Laser Machines
* Ozone Generators
* Air Purification Equipment
* Capacitor Charging Systems
* High Voltage DC Generators
* Electrostatic Discharge Equipment
* Industrial HV Power Supplies
* Scientific Research Equipment
* Particle Accelerators
* Plasma Systems
* High Voltage Test Equipment
* Oil & Gas Dehydration Equipment
* Environmental Protection Equipment
Manufacturing Advantages
HVRTION provides complete manufacturing capabilities:
* In-house High Voltage Diode Production
* Silicon Stack Assembly
* Bridge Rectifier Design
* Vacuum Epoxy Potting
* High Voltage Testing Laboratory
* Strict Quality Control
* Small Batch & Mass Production
Why Global Customers Choose HVRTION
✔ Factory Direct Supply
✔ Fast Prototype Development
✔ Custom Engineering Support
✔ Stable Quality
✔ Competitive Pricing
✔ Fast Delivery
✔ Low MOQ
✔ OEM Branding
✔ ODM Development
✔ Professional Technical Support
Frequently Asked Questions
Q: Can you manufacture according to our drawings?
A: Yes. We can manufacture based on your drawings, samples, electrical specifications, or application requirements.
Q: Can the voltage and current be customized?
A: Absolutely. We support customized voltage, current, package dimensions, cooling methods, and terminal configurations.
Q: Can you provide complete rectifier assemblies?
A: Yes. Besides bridge rectifiers, we can also integrate:
* High Voltage Diodes
* Silicon Stacks
* High Voltage Capacitors
* Voltage Multiplier Modules
* Complete High Voltage Rectifier Assemblies
What industries do you mainly serve?
Our products are widely used in medical equipment, industrial automation, electrostatic systems, environmental protection, laser equipment, scientific research, and high-voltage power supply manufacturing.
