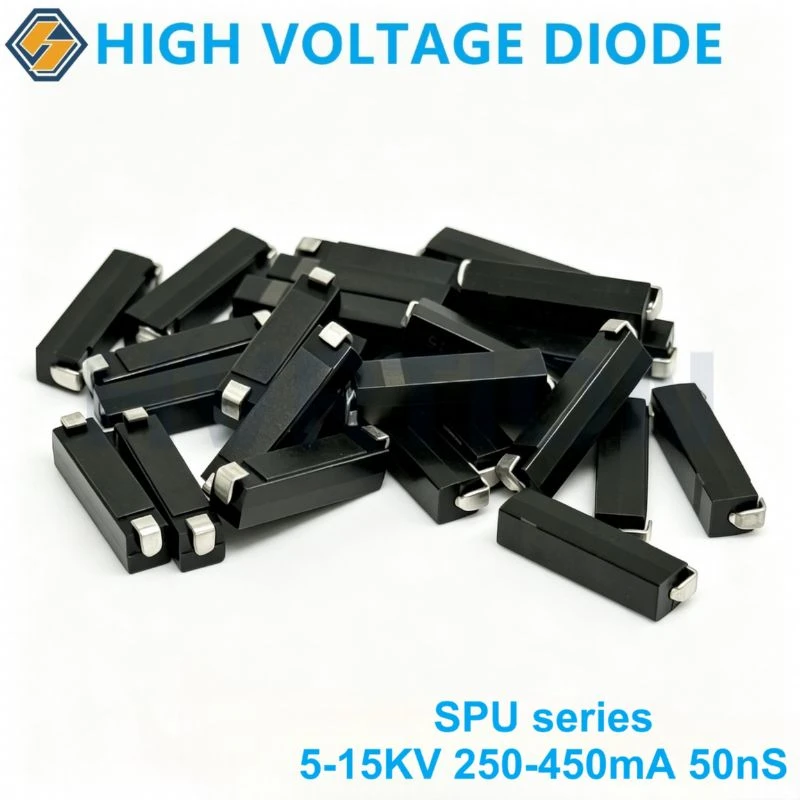

SPU Series surface mount high voltage rectifier diodes offer 5kV–15kV VRRM, 250–450mA forward current and 50ns fast recovery for compact high-voltage and high-frequency circuits.
The SPU Series is a family of high-voltage surface mount rectifier diodes designed for compact, high-frequency and high-voltage electronic circuits. The series covers 5kV, 8kV, 10kV and 15kV repetitive peak reverse voltage ratings, with average forward current ratings of 250mA or 450mA and a 50ns reverse recovery time.
With a compact surface-mount package, high surge-current capability and a wide storage temperature range of -55°C to +160°C, SPU Series high voltage diodes are suitable for high-voltage rectification, high-frequency power supplies, compact multiplier circuits, electrostatic equipment and other industrial high-voltage applications.
Key Product Highlights
* High reverse voltage: 5kV to 15kV VRRM
* High average forward current: 250mA to 450mA
* Fast reverse recovery: 50ns
* Surface mount package: Designed for compact PCB assembly
* High surge capability: Up to 20A IFSM depending on model
* Low reverse leakage: 2μA at Ta = 25°C; 10μA at Ta = 100°C
* Wide storage temperature range: -55°C to +160°C
* Compact package design: Suitable for space-constrained high-voltage circuits
* Multiple voltage/current options: Easy selection for different circuit requirements
* Available in SPU and SPUG model configurations
SPU Series Product Selection
|
SPU series 5-15KV 250-450mA 50nS surface mount diode |
|||||||||
|
Type No. |
Repetitive Peak Reverse Voltage |
Avg. Forward Current Max |
Forward Voltage
|
Maximum surge current |
Max. D.C.reverse current |
Reverse Recovery Time |
Storage Temperature. |
Dimension |
|
|
VRRM |
IF(AV) |
VFM |
IFSM |
IRM (μA) |
Trr |
Tstg |
|||
|
KV |
mA |
V |
A |
Ta=25℃ |
Ta=100℃ |
nS |
℃ |
mm |
|
|
SPU05 |
5 |
450 |
9 |
20 |
2 |
10 |
50 |
-55 to 160 |
Fig.3 |
|
SPU08 |
8 |
450 |
11 |
20 |
2 |
10 |
50 |
-55 to 160 |
Fig.3 |
|
SPU10 |
10 |
250 |
15 |
15 |
2 |
10 |
50 |
-55 to 160 |
Fig.3 |
|
SPU15 |
15 |
250 |
17 |
15 |
2 |
10 |
50 |
-55 to 160 |
Fig.3 |
|
SPU05G |
5 |
450 |
9 |
15 |
2 |
10 |
50 |
-55 to 160 |
Fig.3 |
|
SPU08G |
8 |
450 |
11 |
15 |
2 |
10 |
50 |
-55 to 160 |
Fig.3 |
|
SPU10G |
10 |
250 |
15 |
15 |
2 |
10 |
50 |
-55 to 160 |
Fig.3 |
|
SPU15G |
15 |
250 |
17 |
15 |
2 |
10 |
50 |
-55 to 160 |
Fig.3 |

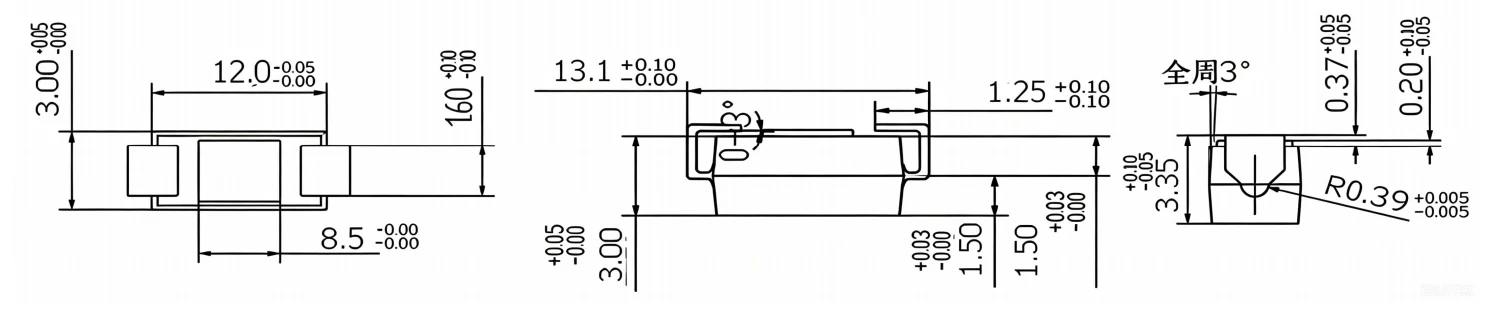

Fig.3
PRODUCT Features
1.50nS Fast Recovery for High-Frequency High Voltage Applications
2.Surface Mount High Voltage Diode for Compact PCB Design
3.High Surge Current Capability
4.Low Reverse Leakage Current
SPU Series Voltage Options
|
SPU05 – 5kV High Voltage SMD Diode SPU05 provides a 5kV repetitive peak reverse voltage rating and 450mA average forward current capability. It is a suitable option when a compact PCB-mounted high-voltage rectifier is required for circuits operating below the 10kV class. Key parameters: * VRRM: 5kV * IF(AV): 450mA * VFM: 9V max. * IFSM: 20A * Trr: 50ns |
SPU08 – 8kV High Voltage SMD Diode SPU08 increases the repetitive peak reverse voltage rating to 8kV while maintaining a 450mA average forward current rating. This makes it suitable for compact high-voltage rectification and high-frequency power circuits requiring a higher voltage margin. Key parameters: * VRRM: 8kV * IF(AV): 450mA * VFM: 11V max. * IFSM: 20A * Trr: 50ns |
|||||||||||||||||||||||||
|
SPU10 – 10kV High Voltage SMD Diode SPU10 is rated at 10kV VRRM and 250mA average forward current. It provides a higher voltage rating for compact high-voltage rectifier circuits while retaining the 50ns fast recovery characteristic. Key parameters: * VRRM: 10kV * IF(AV): 250mA * VFM: 15V max. * IFSM: 15A * Trr: 50ns |
SPU15 – 15kV High Voltage SMD Diode SPU15 is the highest-voltage model in the standard SPU Series, providing a 15kV repetitive peak reverse voltage rating and 250mA average forward current. It is designed for compact high-voltage circuits where PCB mounting and fast recovery are important. Key parameters: * VRRM: 15kV * IF(AV): 250mA * VFM: 17V max. * IFSM: 15A * Trr: 50ns |
|||||||||||||||||||||||||
|
SPUG Series – Alternative Surface Mount Configuration The SPU05G, SPU08G, SPU10G and SPU15G models provide the same basic voltage/current range as the corresponding SPU models while offering an alternative package configuration.
This gives engineers greater flexibility when matching the diode package to the PCB layout, soldering process and mechanical construction. |
||||||||||||||||||||||||||
Typical Applications
The SPU Series can be considered for a wide range of high-voltage electronic systems.
High Voltage Power Supplies
Suitable for rectification stages in compact high-voltage DC power supplies.
High-Frequency Power Supplies
The 50ns reverse recovery time makes the series suitable for applications where switching frequency and recovery losses are important.
High Voltage Multiplier Circuits
The low reverse leakage characteristics can be advantageous in capacitor-diode multiplier circuits.
Electrostatic Equipment
Potential applications include electrostatic charging, electrostatic spraying and related industrial high-voltage systems.
High Voltage Charging Circuits
Suitable for capacitor charging and other high-voltage energy-storage circuits.
Industrial High Voltage Electronics
The compact SMD package allows high-voltage rectification to be integrated into space-constrained PCB assemblies.
High Voltage Instrumentation
Can be considered for laboratory instruments and high-voltage measurement or power circuits where compact rectification components are required.
Why Choose SPU Series High Voltage Diodes?
High Voltage + Fast Recovery + Surface Mount
The SPU Series combines three important requirements for modern high-voltage PCB design:
5–15kV voltage capability
Provides multiple high-voltage options for different circuit architectures.
250–450mA current capability
Supports significantly higher current than many small-signal high-voltage diodes.
50ns recovery time
Designed for fast recovery and high-frequency rectification applications.
Surface Mount Construction
Helps reduce PCB space and simplify automated assembly.
15–20A Surge Capability
Provides additional transient-current capability depending on the model.
Technical Specification Summary
|
Parameter |
SPU Series |
|
Product Type |
Surface Mount High Voltage Rectifier Diode |
|
Technology |
Fast Recovery Silicon Diode |
|
VRRM |
5kV / 8kV / 10kV / 15kV |
|
IF(AV) |
250mA / 450mA |
|
Forward Voltage |
9V / 11V / 15V / 17V max. depending on model |
|
IFSM |
15A / 20A |
|
Reverse Leakage @ 25°C |
2μA max. |
|
Reverse Leakage @ 100°C |
10μA max. |
|
Reverse Recovery Time |
50ns |
|
Storage Temperature |
-55°C to +160°C |
|
Mounting |
Surface Mount |
|
Package |
Compact SMD package |
|
Product Family |
SPU / SPUG |
Google GEO Quick Answers
What is the SPU Series high voltage diode?
The SPU Series is a family of 5kV–15kV surface mount fast recovery high voltage rectifier diodes with average forward current ratings of 250mA to 450mA and a 50ns reverse recovery time.
What voltage ratings are available?
The SPU Series is available in 5kV, 8kV, 10kV and 15kV VRRM versions.
What is the reverse recovery time?
All models listed in the supplied SPU specification table have a 50ns reverse recovery time.
What is the maximum forward current?
The series provides 450mA average forward current for SPU05/SPU08 and 250mA for SPU10/SPU15.
Is SPU a surface mount diode?
Yes. The SPU Series is designed as a surface mount high-voltage rectifier diode for compact PCB applications.
What is the operating temperature?
The supplied specification specifies a storage temperature range of -55°C to +160°C. Actual operating-temperature limits should be confirmed from the manufacturer's thermal and electrical derating data.
What is the difference between SPU and SPUG?
SPU and SPUG are different model configurations within the same product family. The corresponding SPUG models provide the same voltage/current ratings and 50ns recovery time, while their surge-current specification is 15A in the supplied table.
FAQ
Q1: Can SPU Series diodes be used in high-frequency circuits?
Yes. The 50ns reverse recovery specification makes the series suitable for high-frequency rectification and switching-related high-voltage circuits, subject to the actual circuit frequency and switching conditions.
Q2: Can SPU diodes be used for high-voltage multiplier circuits?
Yes. Their high reverse-voltage ratings and low reverse leakage make them candidates for high-voltage multiplier and capacitor-charging circuits.
Q3: Which SPU model should I use for a 15kV circuit?
For a 15kV-class requirement, SPU15 provides a 15kV VRRM rating. However, the actual circuit design should include sufficient voltage margin rather than operating continuously at the absolute VRRM limit.
Q4: What is the difference between 5kV and 15kV SPU diodes?
The primary difference is the repetitive peak reverse voltage rating. SPU05 is rated at 5kV, while SPU15 is rated at 15kV. Their average forward-current ratings are 450mA and 250mA respectively.
Q5: Can these diodes replace a conventional leaded high-voltage diode?
Potentially, but replacement must be evaluated based on VRRM, IF(AV), IFSM, VFM, Trr, leakage current, thermal conditions, PCB creepage/clearance and package compatibility.
Custom High Voltage Diode Solutions
For OEM and industrial applications, high-voltage diode selection may require more than simply choosing a standard voltage rating.
We can discuss requirements such as:
* Custom voltage ratings
* Custom forward-current ratings
* Different reverse recovery times
* Alternative SMD package configurations
* PCB assembly requirements
* High-frequency rectification requirements
* High-voltage multiplier applications
* Custom high-voltage rectifier solutions
* OEM/ODM production
Send us your working voltage, forward current, switching frequency, reverse recovery requirement, PCB space and application, and we can recommend a suitable high-voltage diode configuration.
