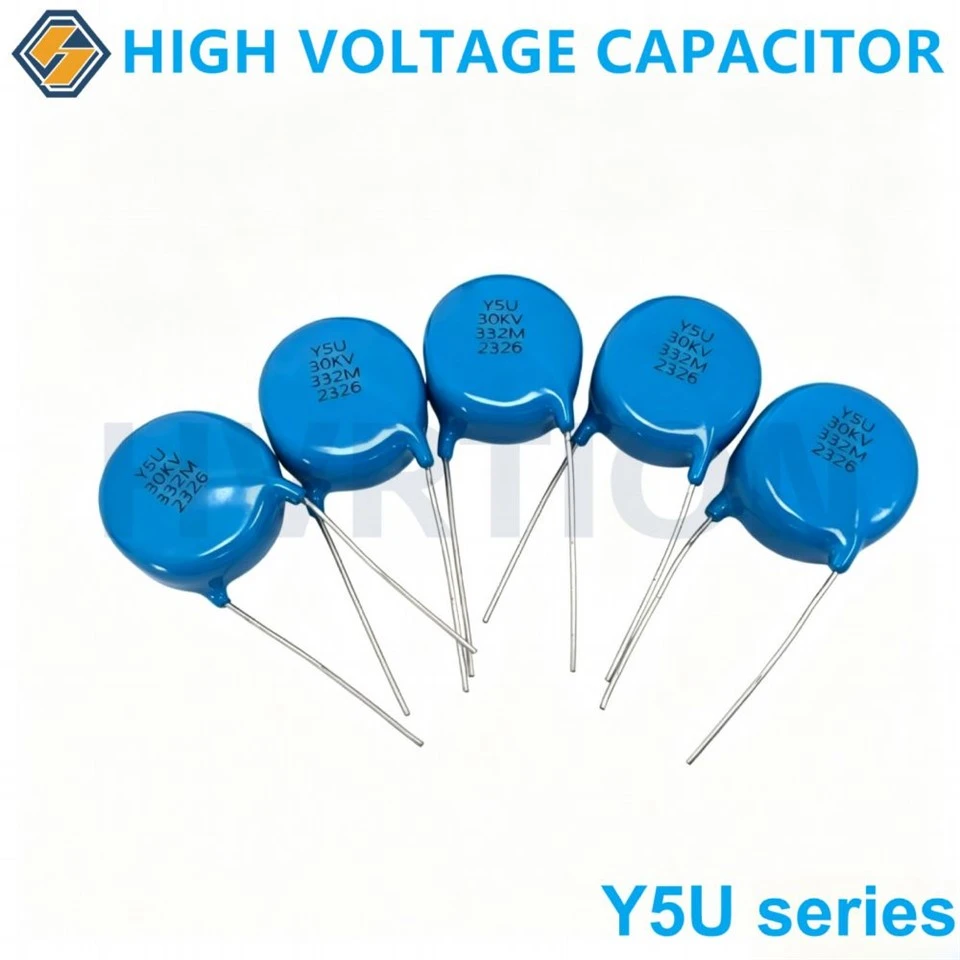

Product Overview
HVRTION Y5U Series High Voltage Ceramic Disc Capacitors are designed for applications requiring high capacitance, compact size and reliable high voltage insulation performance.
Using Y5U dielectric ceramic material, these capacitors provide excellent capacitance density and stable electrical performance, making them suitable for high voltage power conversion systems, industrial equipment and energy storage applications.
The Y5U series covers voltage ratings from 3kV to 30kV, with capacitance values from hundreds to thousands of picofarads, meeting various high voltage circuit requirements.
Key Features
* High voltage rating: 3kV–30kV
* High capacitance ceramic dielectric
* Low leakage current
* Excellent insulation resistance
* Epoxy encapsulated structure
* Compact radial lead design
* Reliable long-term operation
* Customized capacitance and voltage available
Main Specifications
|
Parameter |
Specification |
|
Dielectric Material |
Y5U Ceramic |
|
Rated Voltage |
3kV / 6kV / 30kV |
|
Capacitance Range |
1000pF–4700pF |
|
Capacitance Tolerance |
±20% |
|
Operating Temperature |
-25℃ to +85℃ |
|
Package |
Epoxy Encapsulation |
Representative Models
|
No. |
Type |
Rated Capacity |
Rated Voltage |
Dielectric Loss |
Package |
Permissible Capacity Deviation |
Temp. Coefficent |
Temp. Range |
Dimension (mm) |
Width (mm) |
Mounting Type (plug-in) |
|
5 |
Y5U3KV472M |
4700PF |
3KV |
Y5U |
Epoxy Encapsulation |
±20% |
Y5U |
-25℃～+85℃ |
12.0*5.0 |
5 |
|
|
Y5U6KV222M |
2200PF |
6KV |
Y5U |
Epoxy Encapsulation |
±20% |
Y5U |
-25℃～+85℃ |
9.5*4.5 |
4.5 |
||
|
Y5U30KV102M |
1000PF |
30KV |
Y5U |
Epoxy Encapsulation |
±20% |
Y5U |
-25℃～+85℃ |
12.0*12.0 |
12 |
||
|
Y5U30KV332M |
3300PF |
30KV |
Y5U |
Epoxy Encapsulation |
±20% |
Y5U |
-25℃～+85℃ |
29*14.5 |
14.5 |
|
Type |
Dmax(mm) |
Tmax(mm) |
Lmax(mm) |
F±2(mm) |
d(mm) |
|
Y5U3KV472M |
12.0 |
5.0 |
25.0 |
10.0 |
0.8 |
|
Y5U6KV222M |
9.5 |
4.5 |
25.0 |
10.0 |
0.8 |
|
Y5U30KV102M |
12.5 |
11.5 |
25.0 |
10.0 |
0.8 |
|
Y5U30KV332M |
29 |
14.5 |
40 |
20 |
0.8 |
Temperature Characteristics Curve
Applications
* High voltage power supplies
* Laser power equipment
* X-ray equipment
* Medical electronics
* Electrostatic precipitators
* Industrial control systems
* High voltage transformers
* Pulse power systems
Custom High Voltage Capacitor Manufacturer
HVRTION provides OEM and ODM services for high voltage ceramic capacitors, including:
* Custom voltage ratings
* Custom capacitance values
* Custom lead spacing
* Special insulation requirements
Contact us for your high voltage capacitor solution.
