Product Overvie

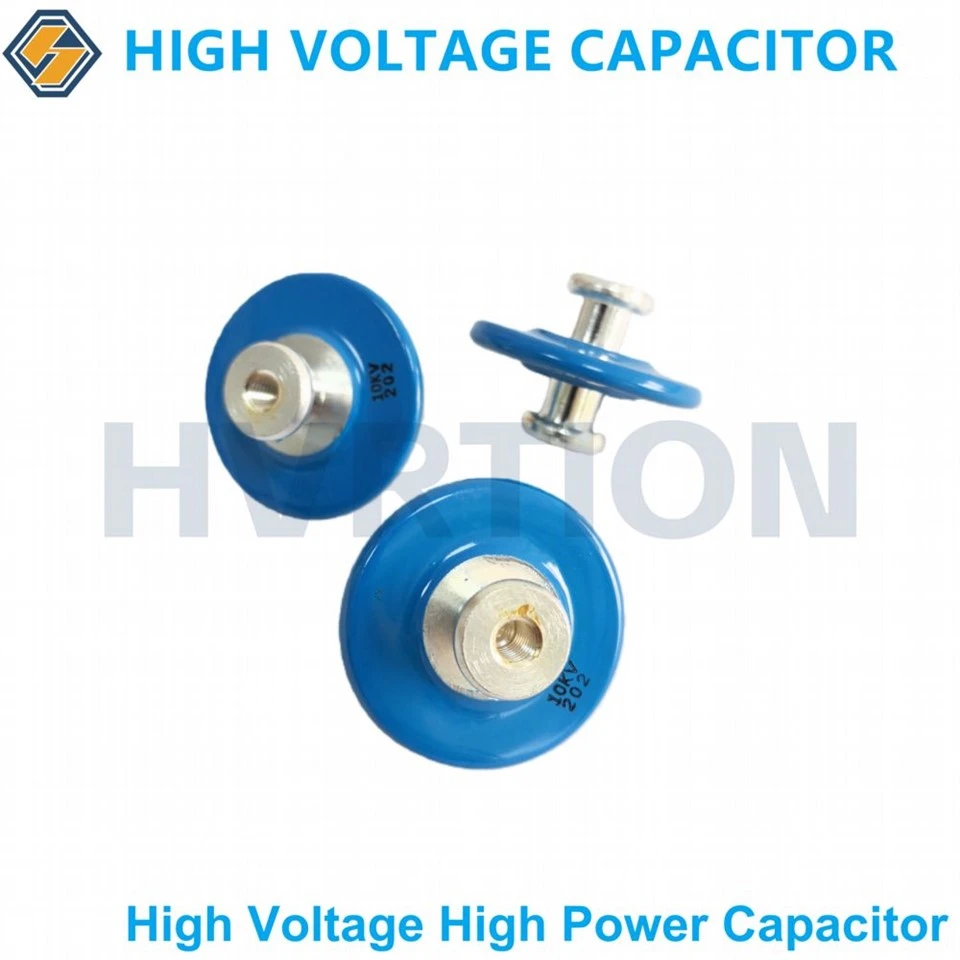

Our High Voltage Ceramic Capacitors for High Frequency Machines are specially designed for high-frequency power equipment, RF applications, and industrial heating systems requiring stable capacitance, low dielectric loss, and excellent high-voltage performance.
Using advanced ceramic dielectric materials including Y5P and SL series, these radial leaded high voltage capacitors provide reliable operation under high-frequency conditions with excellent temperature stability and insulation performance.
They are widely used in high frequency welding machines, high frequency heating machines, induction heating equipment, RF generators, high voltage power supplies, and industrial electronic systems.
Key Features
1.High Voltage Capability
* Rated voltage options:
* 3KVDC
* 6KVDC
* 10KVDC
Designed for high voltage circuits requiring reliable insulation and long service life.
2.High Frequency Performance
* Low dielectric loss
* High Q value
* Excellent frequency characteristics
* Stable capacitance under high-frequency operation
Suitable for resonant circuits and high-frequency power conversion applications.
3.Advanced Ceramic Dielectric
Available dielectric materials:
Y5P Series
* High capacitance density
* Good temperature stability
* Suitable for general high-frequency applications
SL Series
* Low loss ceramic material
* High Q performance
* Suitable for RF and high-frequency resonant circuits
Product Specifications
|
Item |
Specification |
|
Product Type |
High Voltage Ceramic Disc Capacitor |
|
Structure |
Radial Leaded Ceramic Capacitor |
|
Dielectric Material |
Y5P / SL Ceramic |
|
Rated Voltage |
3KV, 6KV, 10KV |
|
Capacitance Range |
100pF ~ 2200pF |
|
Capacitance Tolerance |
±10% |
|
Temperature Range |
-25℃ ~ +85℃ |
|
Shape |
Disc Type |
|
Lead Type |
Radial Wire Lead |
|
Application |
High Frequency / RF Frequency |
Product Series Specification Table
|
Model |
Capacitance |
Voltage |
Dielectric |
Tolerance |
|
3KV/102 |
1000pF |
3KV |
Y5P |
±10% |
|
3KV/202 |
2000pF |
3KV |
Y5P |
±10% |
|
6KV/222 |
2200pF |
6KV |
Y5P |
±10% |
|
10KV/202 |
2000pF |
10KV |
Y5P |
±10% |
|
SL3KV/152K |
1500pF |
3KV |
SL |
±10% |
Mechanical Dimensions
Typical radial disc capacitor structure:
|
Model |
D Diameter |
H Height |
Lead Spacing |
|
3KV Series |
8mm |
20mm |
5mm |
|
6KV/222 |
8mm |
27mm |
5mm |
|
10KV Series |
10mm |
40mm |
5mm |
|
SL3KV/152K |
6.5mm |
40mm |
3.5mm |
Applications
High Frequency Machines
* High Frequency Welding Machine
* High Frequency Heating Machine
* High Frequency Plastic Welding Equipment
* PVC Welding Machine
* Blister Packing Machine
RF and Industrial Equipment
* RF Power Amplifier
* RF Generator
* Industrial Oscillator Circuit
* Resonant Circuit
* Matching Network
High Voltage Electronics
* High Voltage Power Supply
* Pulse Power Equipment
* Laser Power Supply
* X-Ray Equipment
* Electrostatic Equipment
Why Choose Our High Voltage Ceramic Capacitors?
Stable High Voltage Operation
High quality ceramic dielectric materials provide:
* Excellent insulation resistance
* Stable electrical characteristics
* Long operating lifetime
Customized Solutions Available
We support:
✔ Custom capacitance values
✔ Custom voltage ratings
✔ Custom lead length
✔ Custom dimensions
✔ OEM / ODM production
Suitable for different designs of high-frequency machines and industrial power systems.
