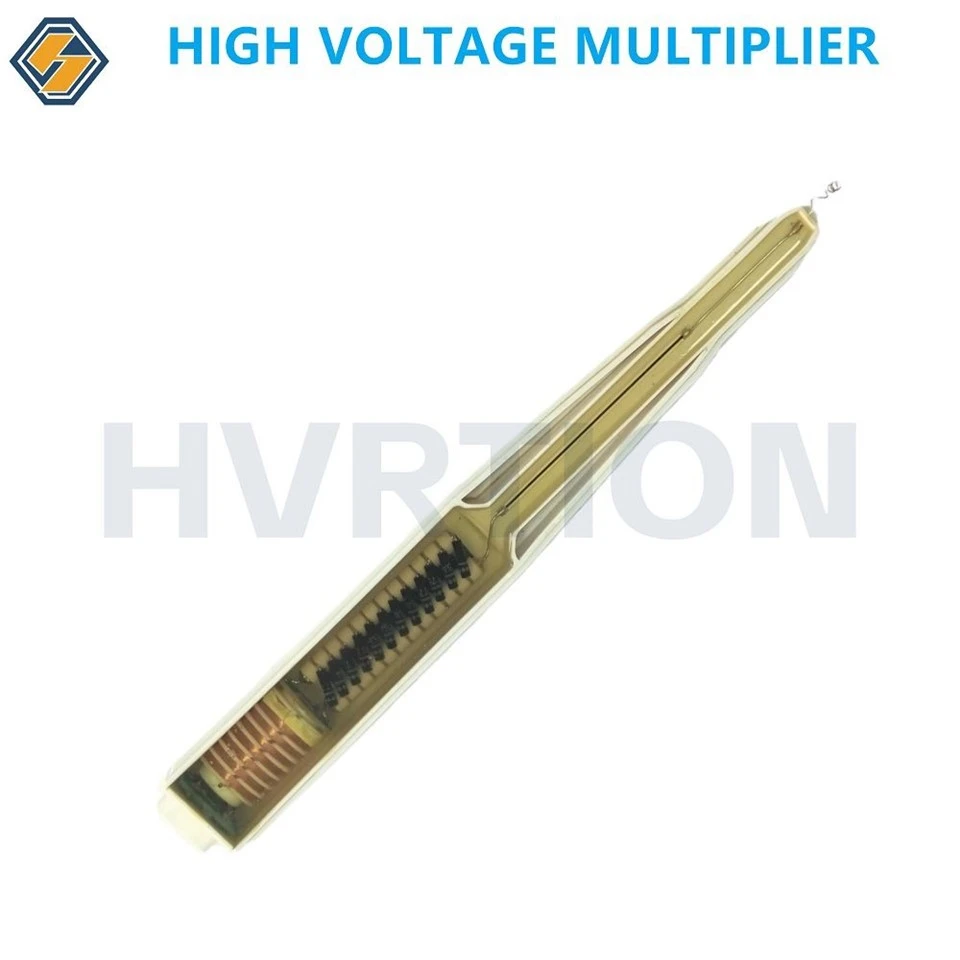

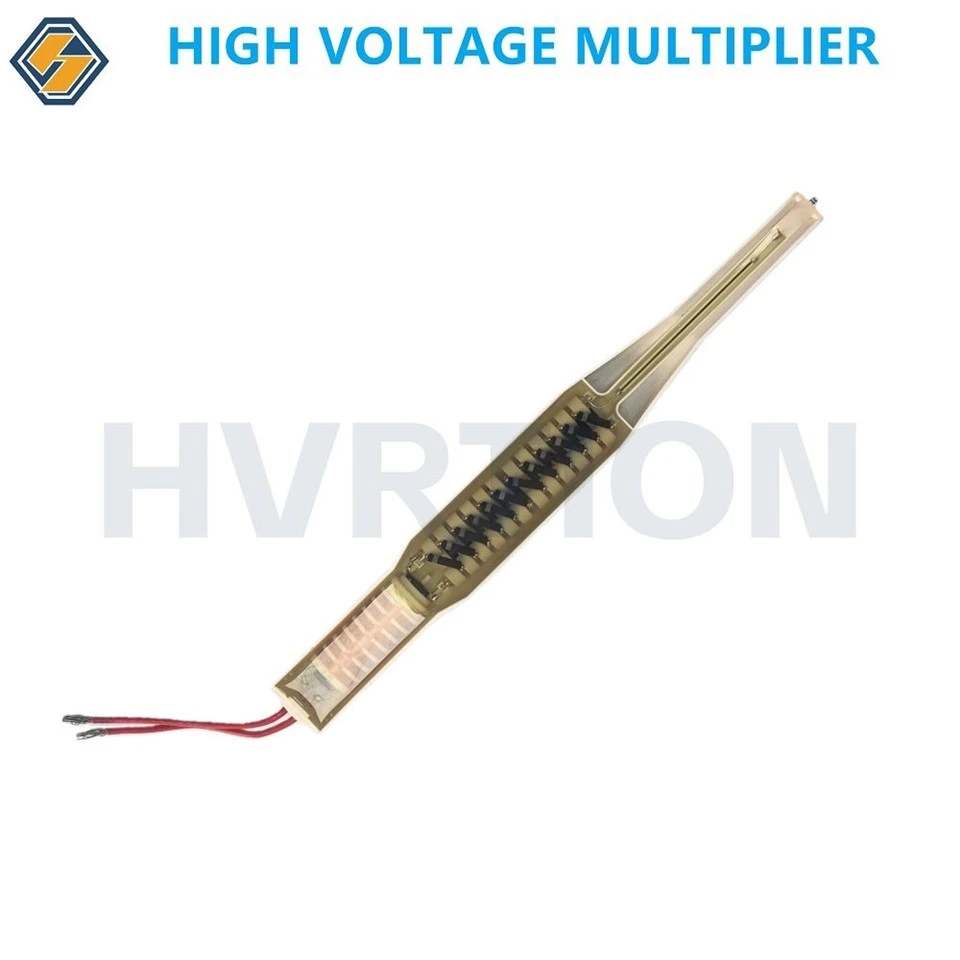

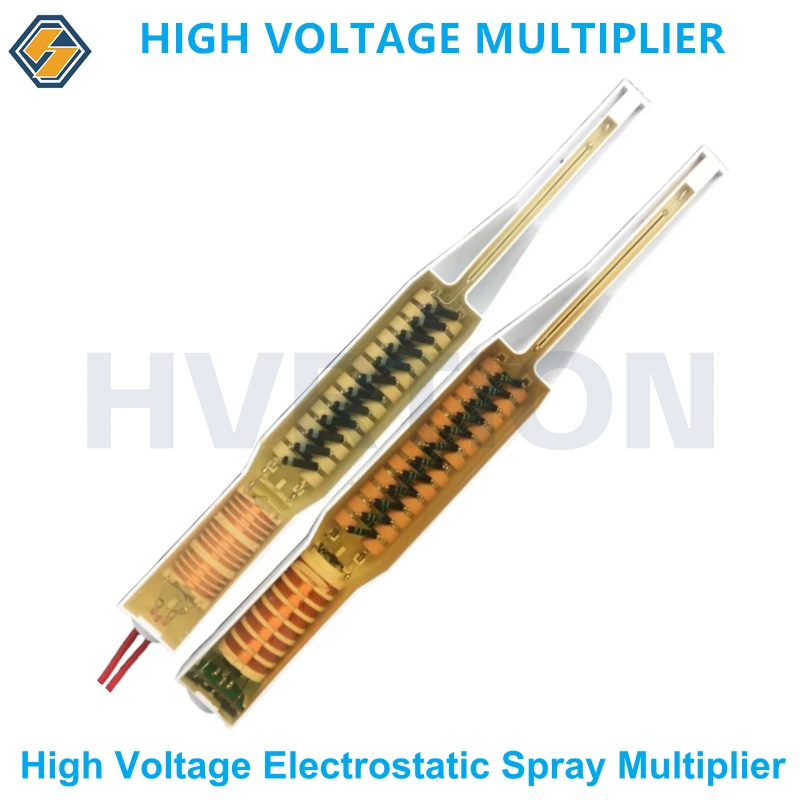

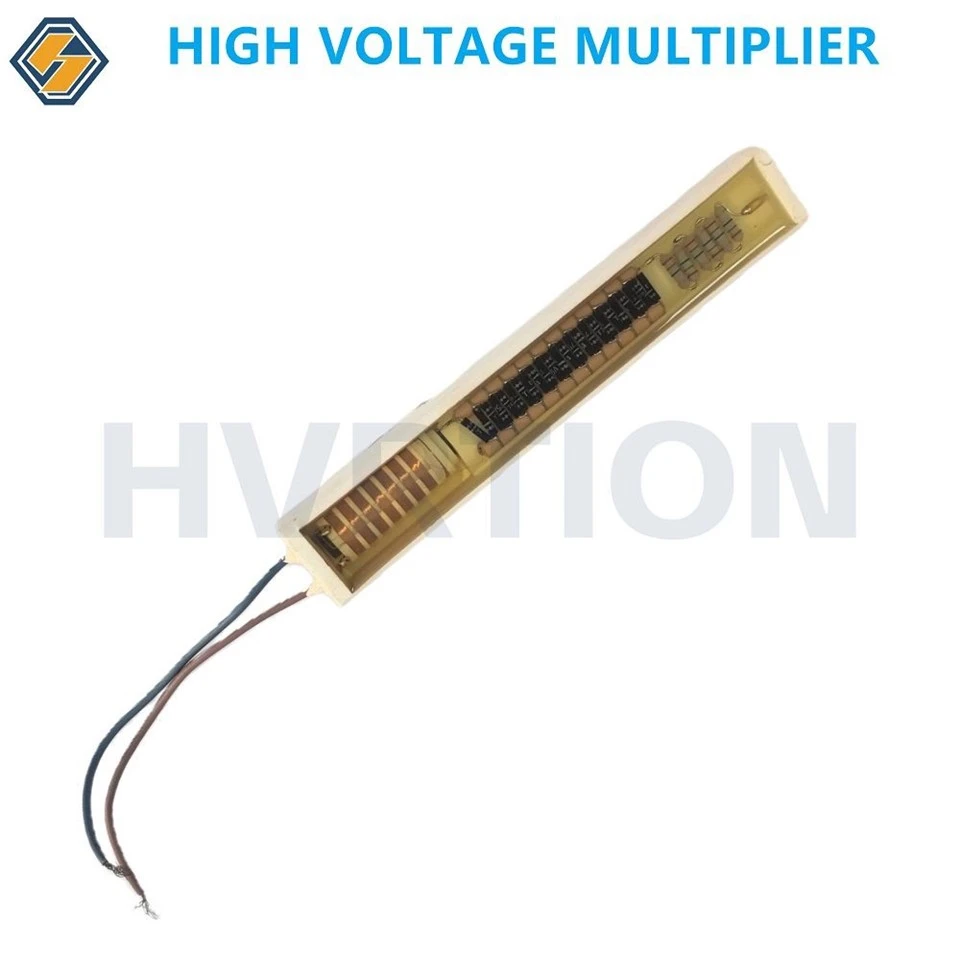

Product Overview
The Electrostatic Spray Gun High Voltage Module Series is designed for modern electrostatic powder coating and liquid spraying systems. The module is the core high-voltage generation unit inside the spray gun, responsible for converting low input voltage into stable high DC voltage for efficient electrostatic charging of powder or coating particles.
These modules adopt a multistage voltage multiplication structure (cascade HV circuit) with high insulation materials, ensuring stable output, strong discharge performance, and long service life in industrial environments.
They are widely used in:
* Electrostatic powder coating guns
* Automatic spray coating systems
* Manual electrostatic spray guns
* Industrial finishing equipment
* Automotive parts coating lines
Product Structure & Working Principle
This series typically includes:
* High-voltage cascade multiplier circuit
* Precision high-voltage resistors
* Fast recovery diodes
* Insulated epoxy sealing structure
* Output electrode needle / discharge tip connection
Working principle:
Low-voltage input →rectification → multi-stage voltage multiplication → DC high voltage output → electrostatic field generation at spray nozzle.
This ensures strong and uniform electrostatic adsorption for powder particles, improving coating efficiency and reducing material waste.
Key Features & Advantages
* Stable high-voltage output (low ripple, high efficiency)
* Compact embedded structure for spray gun integration
* Excellent insulation performance (epoxy potting protection)
* Strong resistance to humidity, dust, and vibration
* High reliability under continuous industrial operation
* Fast electrostatic response for uniform coating effect
* Long service life with low maintenance cost
Technical Parameters (Customizable Range)
The following parameters can be customized according to customer requirements:
Electrical Parameters
* Output Voltage Range: 20kV – 120kV (typical customization available)
* Input Voltage: DC 12V / 24V / AC low voltage system
* Output Type: Negative / Positive high voltage optional
* Output Current: Micro-current level (safe electrostatic operation)
* Ripple: Low ripple DC output (optimized for coating stability)
Structural Parameters
* Module Length: customizable (typically 80mm – 300mm)
* Insulation Material: epoxy resin / silicone encapsulation
* Housing Material: engineering plastic / flame-retardant ABS
* Electrode Type: needle / ring / customized discharge head
Environmental Parameters
* Operating Temperature: -20°C ~ +80°C
* Humidity Resistance: high humidity industrial environments supported
* Vibration Resistance: suitable for handheld spray gun operation

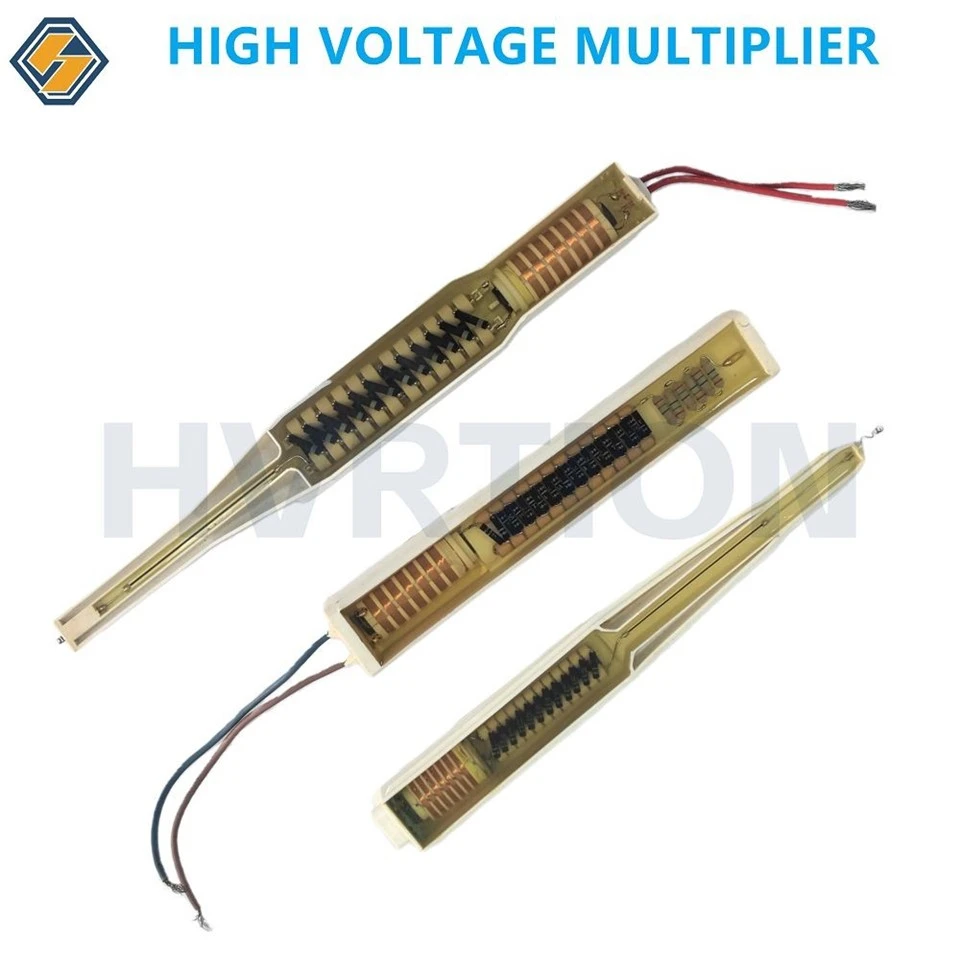

Product Series Classification
We provide multiple configurations depending on application needs:
1. Standard Electrostatic Spray Gun HV Modules
* General powder coating applications
* Stable output, cost-effective solution
2. High-Voltage Enhanced Series
* Higher adsorption efficiency
* Suitable for complex surface coating
3. Compact Mini HV Modules
* Lightweight handheld spray guns
* Reduced size, optimized integration
4. Industrial Automatic Line Modules
* Designed for robotic coating systems
* High stability for continuous operation
Application Fields
* Powder coating production lines
* Automotive parts surface finishing
* Home appliance coating
* Metal furniture coating
* Aluminum profile electrostatic spraying
* Industrial protective coating systems
Products Description
We provide full customization support for global customers:
* Output voltage adjustment (20kV–120kV+)
* Polarity design (positive / negative HV)
* Circuit optimization for specific spray guns
* Anti-corona discharge design
Mechanical Customization
* Shape and size design for gun integration
* Connector and electrode customization
* Housing material selection
* Sealing structure improvement (IP-level protection)
Branding & Production
* OEM private labeling
* Custom packaging design
* Small batch to mass production support
* Technical matching with spray gun manufacturers
Why Choose Our HV Spray Gun Modules
* Professional high-voltage circuit design experience
* Stable mass production capability
* Strict quality control for insulation and safety
* Strong compatibility with global spray gun systems
* Fast customization and engineering support
Conclusion
The Electrostatic Spray Gun High Voltage Module Series is a critical component for high-efficiency powder coating systems. With stable high-voltage output, customizable design, and durable industrial-grade construction, it ensures superior coating performance and long-term reliability.
For OEM cooperation, technical consultation, or sample testing, customized solutions are fully available.
