RI80A |

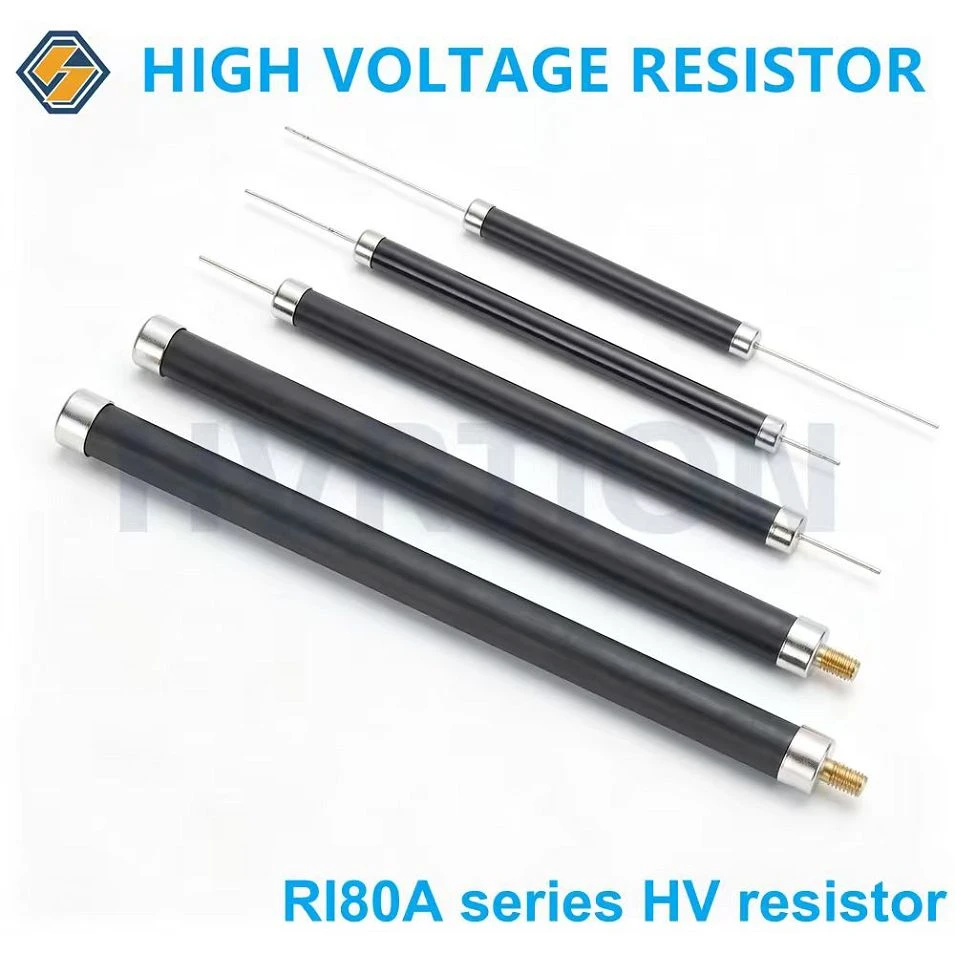

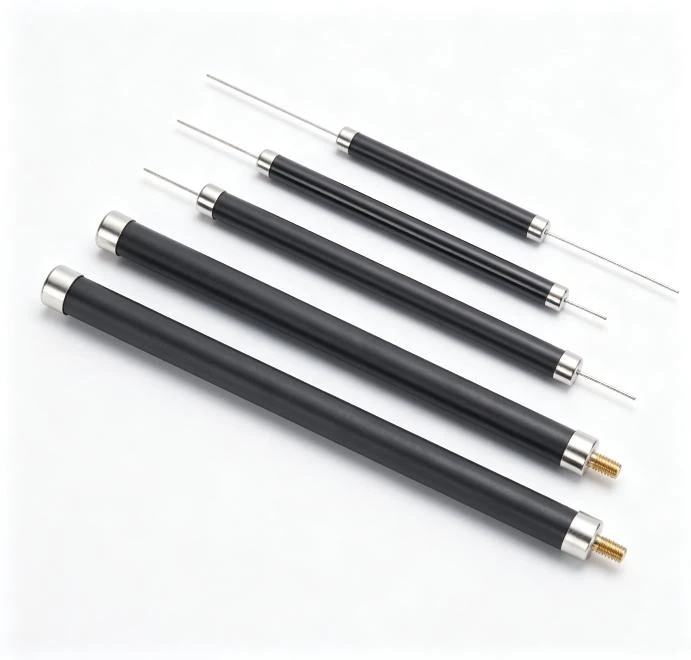

RI80A Series Non-Inductive High Voltage Glass Glaze Film Resistors |
Product Overview
The RI80A Series Non-Inductive High Voltage Glass Glaze Film Resistors are specially engineered for high-voltage, AC, pulse, discharge, and high-frequency circuits. Based on the proven RI80 platform, the RI80A series utilizes a full-surface glass glaze resistive film technology with a non-inductive design, delivering exceptional stability, high pulse load capability, and extremely low inductance.
Unlike conventional high-voltage resistors, the RI80A series is designed to eliminate arc tracking under high-voltage conditions while maintaining an inductance value below 10mH. This makes it particularly suitable for high-frequency generators, RF equipment, pulse power systems, electrostatic devices, and high-voltage power supplies where inductance must be minimized.
The resistor element is fully coated with a fired glass glaze film, providing excellent insulation, moisture resistance, thermal stability, and long-term reliability in demanding industrial environments.
Key Features
●Non-Inductive Design
* Inductance less than 10mH
* Excellent high-frequency performance
* Reduced switching losses
* Suitable for pulse and RF applications
●High Voltage Capability
* Operating voltage from 10KV to 80KV
* Excellent insulation characteristics
* No surface arc tracking under high-voltage operation
* Reliable long-term HV performance
●Wide Resistance Range
* Resistance values from 100Ω to 200MΩ
* Custom resistance values available
* Suitable for voltage divider and discharge applications
●Excellent Pulse Load Performance
* High overload capability
* Fast energy absorption
* Suitable for pulse discharge systems
* Stable resistance under repetitive pulse operation
●Outstanding Environmental Stability
* Glass glaze protective coating
* Moisture-resistant construction
* Corrosion-resistant surface
* Long service life

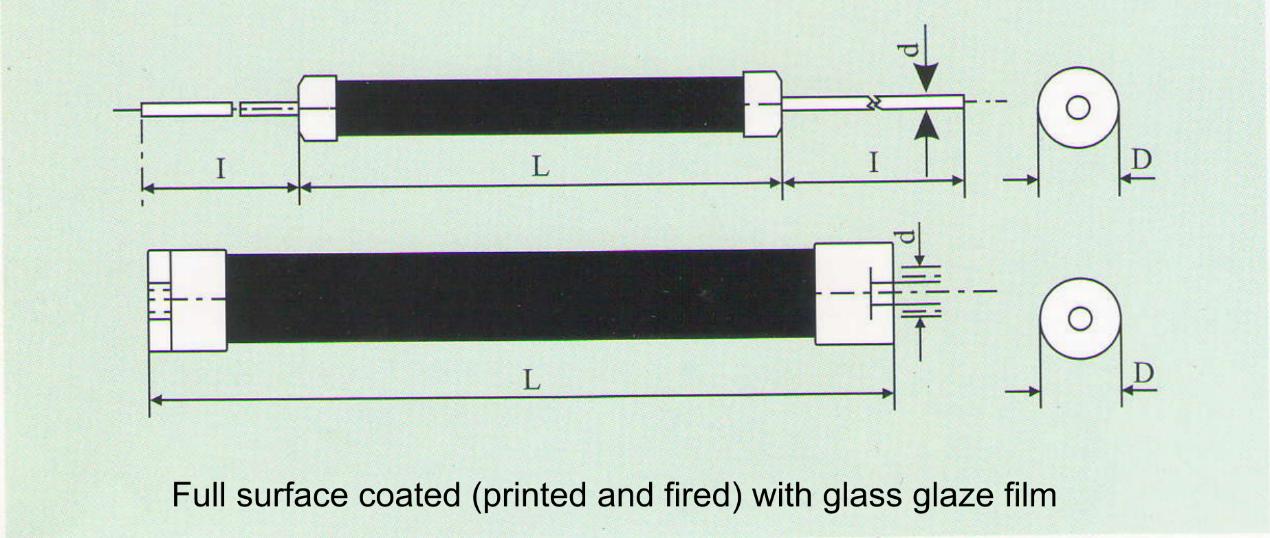

Main Specifications
|
Type |
Rated Power |
Construction type |
Dimension |
Resistance |
Temperature Coefficient |
Operating Temperature |
Resistance Tolerance |
Operating Voltage |
|||
|
(W) |
|
L |
D |
l |
d |
(Ω) |
10⁻⁶/℃ |
|
(KV) |
||
|
RI80A-1 |
1 |
a |
30±1 |
9 |
30±1 |
1 |
10 |
||||
|
RI80A-2 |
2 |
a |
50±1 |
9 |
30±1 |
1 |
15 |
||||
|
RI80A-3 |
3 |
a |
65±1 |
9 |
30±1 |
1 |
20 |
||||
|
RI80A-5 |
5 |
a |
100±1 |
9 |
30±1 |
1 |
≤200 |
F(±1%) |
25 |
||
|
RI80A-8 |
8 |
a,b,c |
100±1 |
11 |
30±1 |
1 |
100 |
30 |
|||
|
RI80A-10 |
10 |
a,b,c |
147±1 |
11 |
30±1 |
M4 |
35 |
||||
|
RI80A-20 |
20 |
b,c |
116±2 |
17 |
M6 |
~ |
-55℃ |
30 |
|||
|
RI80A-30 |
30 |
b,c |
116±2 |
19 |
M6 |
G(±2%) |
30 |
||||
|
RI80A-50 |
50 |
b,c |
116±2 |
21 |
M6 |
IKKM |
~ |
30 |
|||
|
R180A-80 |
80 |
b,c |
130±2 |
28 |
M6 |
30 |
|||||
|
RI80A-100 |
100 |
b,c |
160±2 |
28 |
M6 |
+70℃ |
J(±5%) |
35 |
|||
|
RI80A-150 |
150 |
b,c |
210±2 |
28 |
M6 |
10K |
≤400 |
60 |
|||
|
RI80A-200 |
200 |
b,c |
260±2 |
28 |
M6 |
~ |
60 |
||||
|
RI80A-300 |
300 |
b,c |
310±2 |
33 |
M6 |
200M |
K(±10%) |
80 |
|||
