Product Overview

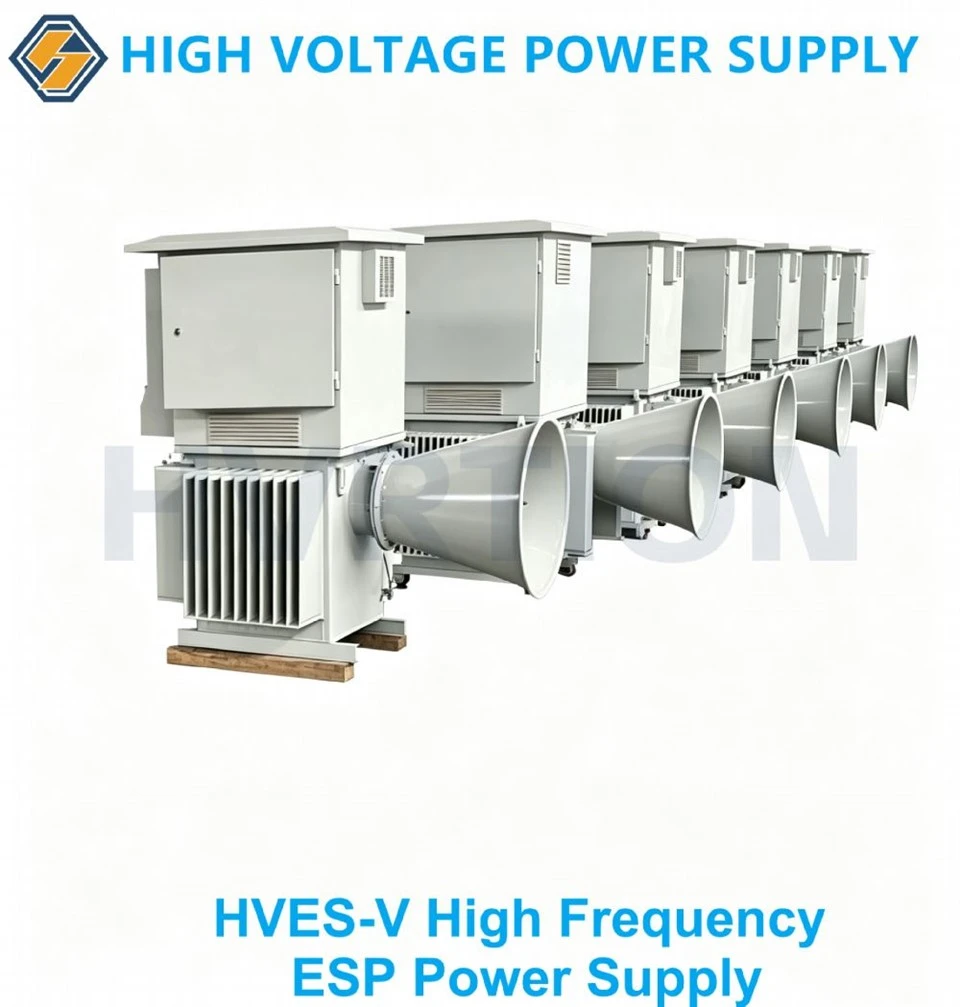

The HVES-V High Frequency Power Supply is the fourth-generation intelligent power source designed specifically for Electrostatic Precipitators (ESP). Combining SCR amplitude modulation and IGBT frequency modulation technology, the HVRTION-V achieves superior dust collection efficiency, energy savings, and operational stability under complex industrial conditions.
Compared with conventional transformer-rectifier (T/R) sets and traditional high-frequency power supplies, the HVRTION-V offers higher average corona power, lower spark energy, faster spark recovery, and greater adaptability to varying dust characteristics.
Key Features
Dual Modulation Technology
The HVES-V adopts:
* SCR Amplitude Modulation
* IGBT Frequency Modulation
This innovative "Dual-Control" architecture ensures optimal voltage and current output across different operating conditions.
High Energy Efficiency
* Power Conversion Efficiency ≥ 93%
* Power Factor > 0.95
* Up to 30% lower input power consumption
* Significant energy savings compared to conventional ESP power supplies
Excellent Spark Control
Advanced DSP technology detects spark events within microseconds.
Benefits include:
* Spark shutdown time <10μs
* Faster field recovery
* Higher average operating voltage
* Improved particle charging efficiency
Flexible Operating Modes
* Pure DC Operation
* Frequency Modulation Mode
* Amplitude Modulation Mode
* Intermittent Pulse Power Supply
* Constant Current Control
* Constant Voltage Control
Intelligent Touch Screen Interface
Features:
* 7-inch TFT LCD Display
* Real-time operating data
* Parameter setting
* Alarm monitoring
* Chinese/English display
Industrial Communication
Supports:
* MODBUS RTU
* RS485
* TCP/IP Ethernet
Ideal for DCS and centralized control systems.
Technical Specifications
|
Parameter |
Value |
|
Rated DC output current |
0.2 A to 3.0 A |
|
output current adjustment range |
0% to 100%; |
|
Rated DC output voltage |
72 kV to 80 kV |
|
output voltage adjustment range |
0% to 100%; |
|
Input voltage |
Three-phase 380 V, 50 Hz |
|
Output current frequency |
10 kHz–40 kHz |
|
Operating modes |
Pure DC power supply, intermittent pulse power supply |
|
Operating modes |
A (AM/AV) mode + B (FM/AV) mode + C (intermittent pulse) mode |
|
Power conversion efficiency |
≥93% |
|
ESE-V Power Supply Boost Method |
Direct boost; |
|
Transformer Insulation Class |
Class A |
|
Cooling Method |
Forced oil cooling or air cooling; |
|
Communication Interface |
RS-485 or TCP/IP |
|
Enclosure Protection Rating |
IP54 |
|
Transformer Oil Temperature Rise |
≤25°C |
|
Protection functions |
Open circuit, short circuit, overload, undervoltage, overheat, IGBT temperature, transformer oil temperature, etc. |
|
Remote control |
Touchscreen operator terminal or MODBUS RTU communication with a host computer. |
|
Enclosure Protection Rating |
IP54 |
|
Transformer Oil Temperature Rise |
≤25°C |
|
Protection functions |
Open circuit, short circuit, overload, undervoltage, overheat, IGBT temperature, transformer oil temperature, etc. |
|
Remote control |
Touchscreen operator terminal or MODBUS RTU communication with a host computer. |
|
No. |
Type |
AC input voltage |
AC input current |
DC output voltage |
DC output current |
AC input power |
DC output power |
|
(V) |
(A) |
(KV) |
(A) |
(kVA) |
(kW) |
||
|
1 |
0.2A/80kV |
380 |
27 |
80 |
0.2 |
18 |
16 |
|
2 |
0.4A/80kV |
380 |
54 |
80 |
0.4 |
35 |
32 |
|
3 |
0.6A/80kV |
380 |
81 |
80 |
0.6 |
53 |
48 |
|
4 |
0.8A/80kV |
380 |
108 |
80 |
0.8 |
70 |
64 |
|
5 |
1.0A/80kV |
380 |
135 |
80 |
1.0 |
88 |
80 |
|
6 |
1.2A/80kV |
380 |
162 |
80 |
1.2 |
106 |
96 |
|
7 |
1.4A/80kV |
380 |
189 |
80 |
1.4 |
123 |
112 |
|
8 |
1.6A/80kV |
380 |
216 |
80 |
1.6 |
141 |
128 |
|
9 |
1.8A/80kV |
380 |
243 |
80 |
1.8 |
158 |
144 |
|
10 |
2.0A/80kV |
380 |
270 |
80 |
2.0 |
176 |
160 |
|
11 |
2.2A/80kV |
380 |
297 |
80 |
2.2 |
190 |
176 |
|
12 |
2.4A/80kV |
380 |
342 |
80 |
2.4 |
212 |
192 |
|
13 |
2.6A/80kV |
380 |
351 |
80 |
2.6 |
229 |
208 |
|
14 |
2.8A/80kV |
380 |
378 |
80 |
2.8 |
246 |
224 |
Applications
* Sinter Plant ESP Systems
* Thermal Power Plants
* Cement Factories
* Steel Mills
* Metallurgical Plants
* Paper Mills
* Salt Processing Plants
* Wet Electrostatic Precipitators (WESP)
Advantage of HVES-V High Frequency Power Supply
|
Items |
Specifications |
|
Input Voltage |
Three phase 380V |
|
DC bus voltage |
DC 0–530V or settable bus voltage |
|
Operating mode |
Multiple operating modes (adaptable to any working conditions) |
|
IGBT temperature rise |
<30 ℃ |
|
Electric field sparking |
Very few (high operating value, good effect, stable) |
|
Spark recovery speed |
Fast |
|
Spark control characteristics |
Good |
|
Electric field light-load voltage regulation characteristics |
Good |
|
Electric field adaptability |
strong |
|
Flashover control |
Adjust bus voltage and switching frequency |
|
Transformer output peak voltage |
Variable |
|
Power output |
Continuous current, pure DC maximum |
|
High frequency transformer efficiency |
Essentially unchanged |
|
Open circuit operation |
Can operate with open circuit |
|
Cooling method |
Combination of oil cooling and air cooling |
|
Forced oil cooling pump |
Danish Grundfos pump, international brand |
|
Cooling effect |
Good, oil temperature rise <25°C |
|
Core |
Ultra microcrystalline, integral without air gap |
|
High voltage rectifier components |
Imported ON Semiconductor components |
|
High voltage rectifier reliability |
High |
|
Equipped with touch display |
Yes |
Customization Terms
1. Scope of Customization
The HVES-V high frequency power supply and HVES-(V+M) pulse power supply can be fully customized according to different industrial electrostatic precipitator (ESP) applications, including steel, power plant, cement, metallurgy, and waste gas treatment systems.
Customization covers:
* Output voltage and current configuration
* Power capacity and module structure
* Control system integration (PLC / DCS / SCADA)
* Communication protocols
* Cooling method
* Installation structure
2. Electrical Parameter Customization
Available customization ranges include:
* Output Voltage: 0–80kV (standard), up to higher voltage on request
* Output Current: 0.2A – 3.0A (HVES-V series)
* Pulse Peak Voltage: up to 90kV (HVES-(V+M) series)
* Pulse Peak Current: up to 300A
* Frequency Range: 10kHz – 40kHz
* Pulse Width: 60–75μs adjustable
All parameters can be optimized based on dust characteristics, ESP size, and process conditions.
3. Functional Customization
The system supports optional functional upgrades:
* Dual-mode operation (Amplitude + Frequency modulation)
* Intermittent pulse energization mode
* Constant voltage / constant current control
* Anti-back corona optimization mode
* Intelligent spark control algorithm tuning
* Energy-saving operation mode optimization
4. Control System Customization
Customers can select or customize:
* Touch screen HMI interface (7-inch / 10-inch optional)
* PLC control system (Siemens / Schneider / domestic brands optional)
* Remote monitoring system
* Industrial Ethernet communication
* DCS integration system
* MODBUS RTU / MODBUS TCP protocol support
* Custom software UI language (English / Chinese / multilingual)
