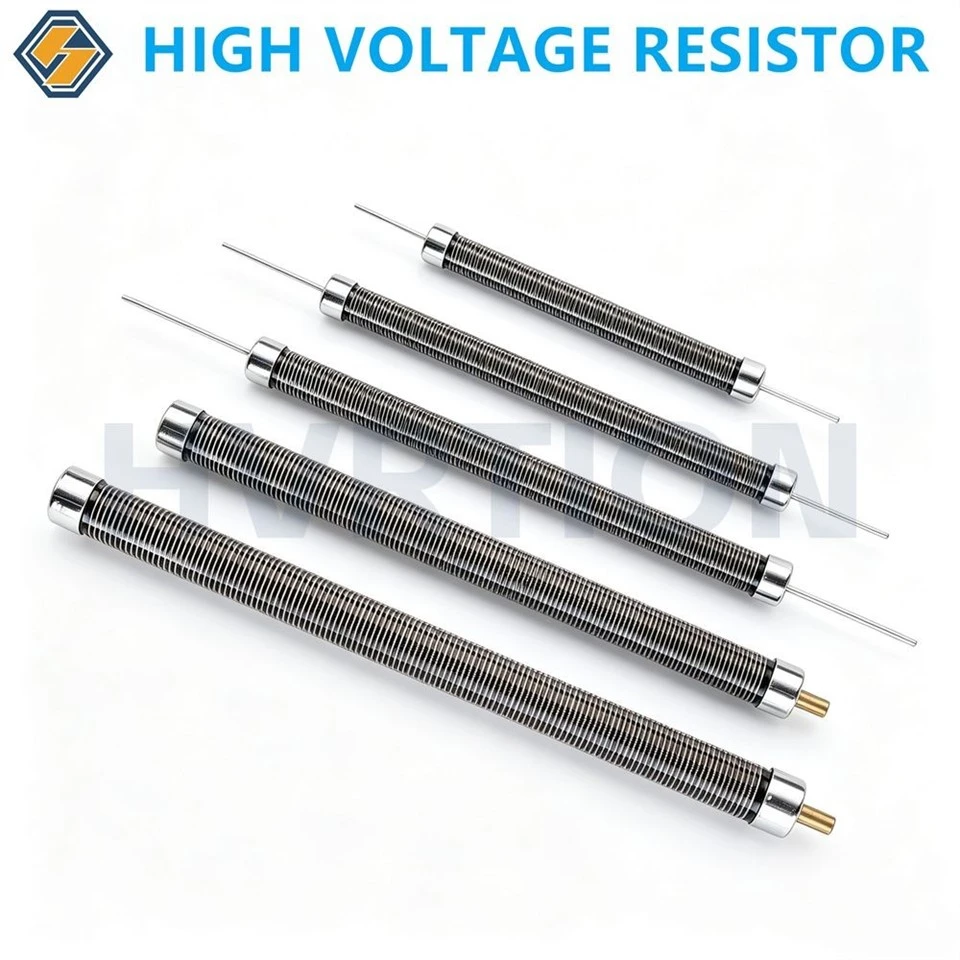

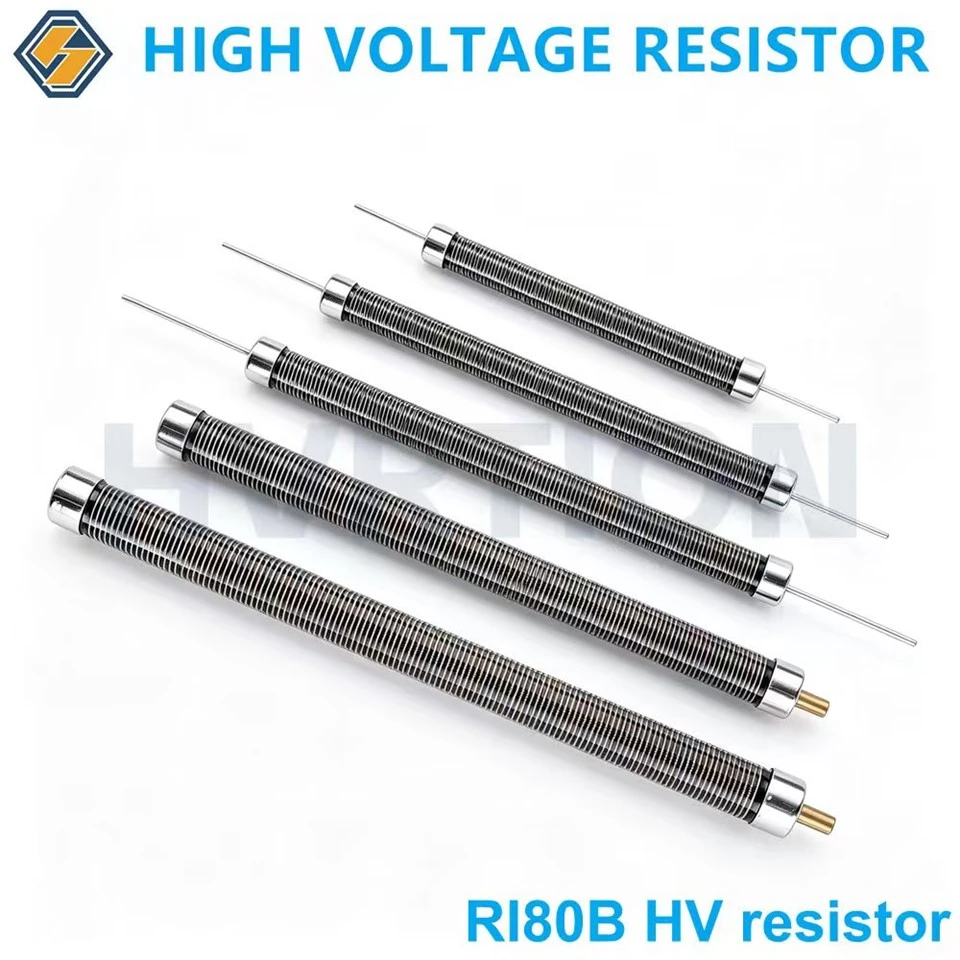

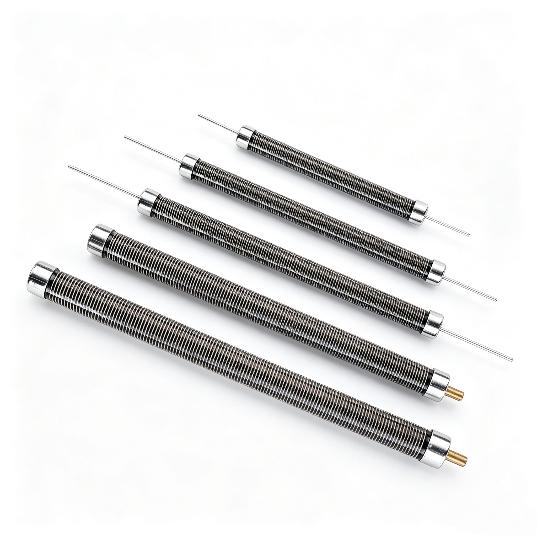

RI80B Series High Voltage Film Linear Glass Glaze Resistors |
Product Overview
The RI80B Series High Voltage Film Linear Glass Glaze Resistors are designed for high-voltage DC circuits and precision high-voltage measurement systems. Manufactured using a high-quality ceramic substrate with a glass glaze resistive film, these resistors offer excellent voltage withstand capability, outstanding stability, and long-term reliability.
The resistance value is accurately adjusted by a precision helical trimming process, providing excellent linearity and consistent electrical performance. The RI80B series shares similar electrical characteristics with the RI80 series while featuring a different mechanical structure. Various resistance values, dimensions, voltage ratings, and power ratings are available to meet customer-specific requirements.
Features
* High voltage insulation performance
* Glass glaze film technology for superior reliability
* Excellent linear resistance characteristics
* High power dissipation capability
* Wide resistance value range
* Low temperature coefficient (TCR ≤ 200–300 ppm/°C)
* Low resistance drift over long-term operation
* Excellent overload and surge capability
* Precision helical trimming for accurate resistance values
* RoHS compliant materials
* Custom designs available
Technical Characteristics
|
Item |
Specification |
|
Resistor Type |
High Voltage Film Linear Glass Glaze Resistor |
|
Resistance Range |
Customized according to customer requirements |
|
Rated Power |
Various power ratings available |
|
Maximum Working Voltage |
Customized according to model |
|
Resistance Tolerance |
±1%, ±2%, ±5%, ±10% (Optional) |
|
Temperature Coefficient |
≤200–300 ppm/°C |
|
Operating Temperature |
-55°C to +155°C |
|
Insulation Material |
Glass Glaze Film |
|
Adjustment Method |
Precision Helical Trimming |
|

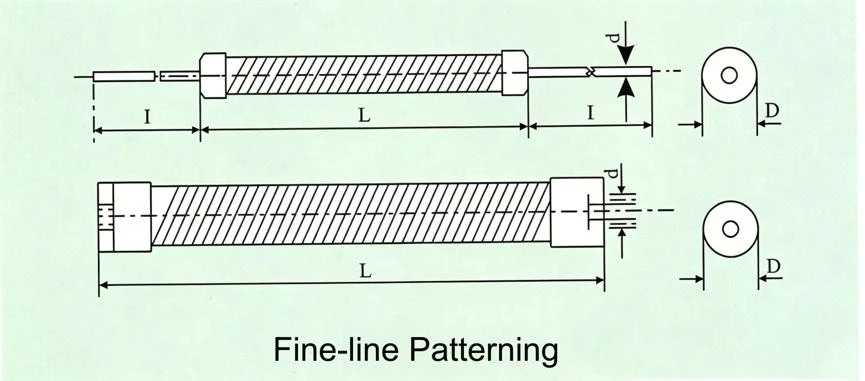

Type |
Rated Power |
Construction type |
Dimension |
Resistance |
Temperature Coefficient |
Operating Temperature |
Resistance Tolerance |
Operating Voltage |
|||
|
(W) |
|
L |
D |
l |
d |
(Ω) |
10⁻⁶/℃ |
|
(KV) |
||
|
RI80B-1 |
1 |
a |
30±1 |
9 |
30±1 |
1 |
10 |
||||
|
RI80B-2 |
2 |
a |
50±1 |
9 |
30±1 |
1 |
15 |
||||
|
RI80B-3 |
3 |
a |
65±1 |
9 |
30±1 |
1 |
20 |
||||
|
RI80B-5 |
5 |
a |
100±1 |
9 |
30±1 |
1 |
≤200 |
F(±1%) |
25 |
||
|
RI80B-8 |
8 |
a,b,c |
100±1 |
11 |
30±1 |
1 |
100 |
30 |
|||
|
RI80B-10 |
10 |
a,b,c |
147±1 |
11 |
30±1 |
M4 |
35 |
||||
|
RI80B-20 |
20 |
b,c |
116±2 |
17 |
M6 |
~ |
-55℃ |
30 |
|||
|
RI80B-30 |
30 |
b,c |
116±2 |
19 |
M6 |
G(±2%) |
30 |
||||
|
RI80B-50 |
50 |
b,c |
116±2 |
21 |
M6 |
IKKM |
~ |
30 |
|||
|
R180B-80 |
80 |
b,c |
130±2 |
28 |
M6 |
30 |
|||||
|
RI80B-100 |
100 |
b,c |
160±2 |
28 |
M6 |
+70℃ |
J(±5%) |
35 |
|||
|
RI80B-150 |
150 |
b,c |
210±2 |
28 |
M6 |
10K |
≤400 |
60 |
|||
|
RI80B-200 |
200 |
b,c |
260±2 |
28 |
M6 |
~ |
60 |
||||
|
RI80B-300 |
300 |
b,c |
310±2 |
33 |
M6 |
200M |
K(±10%) |
80 |
|||
