Product Overview

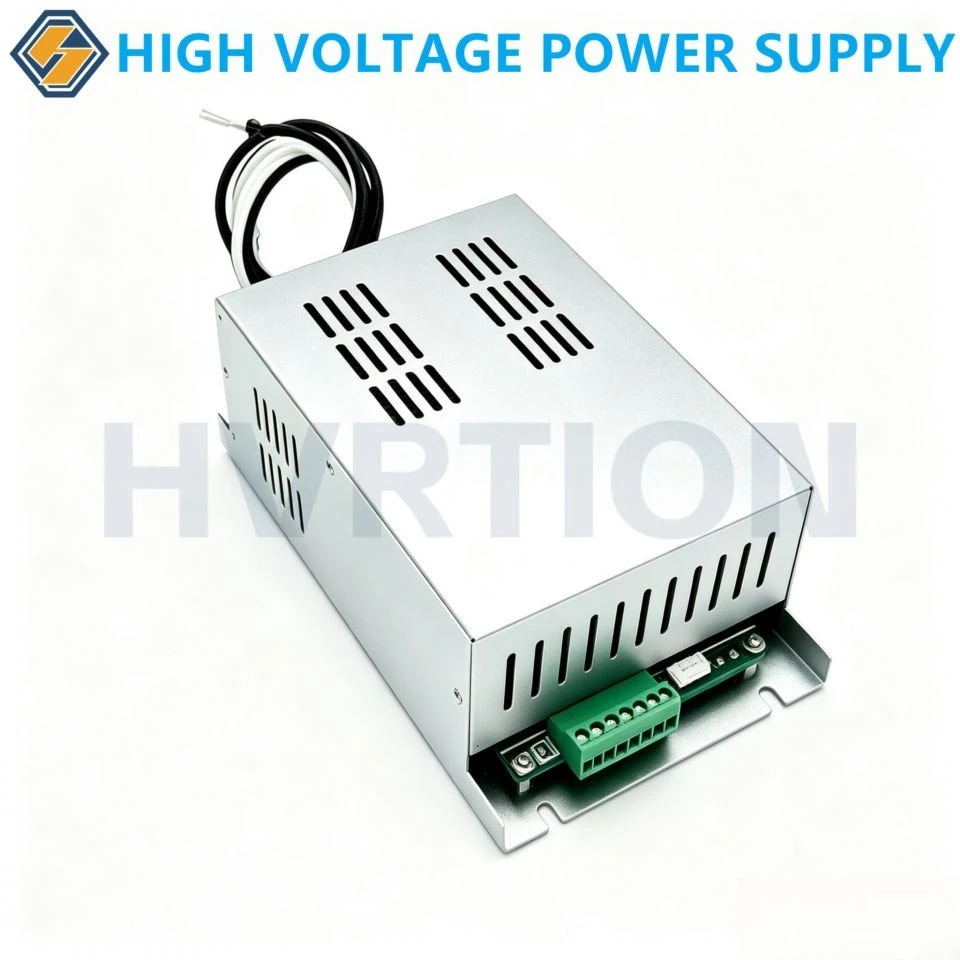

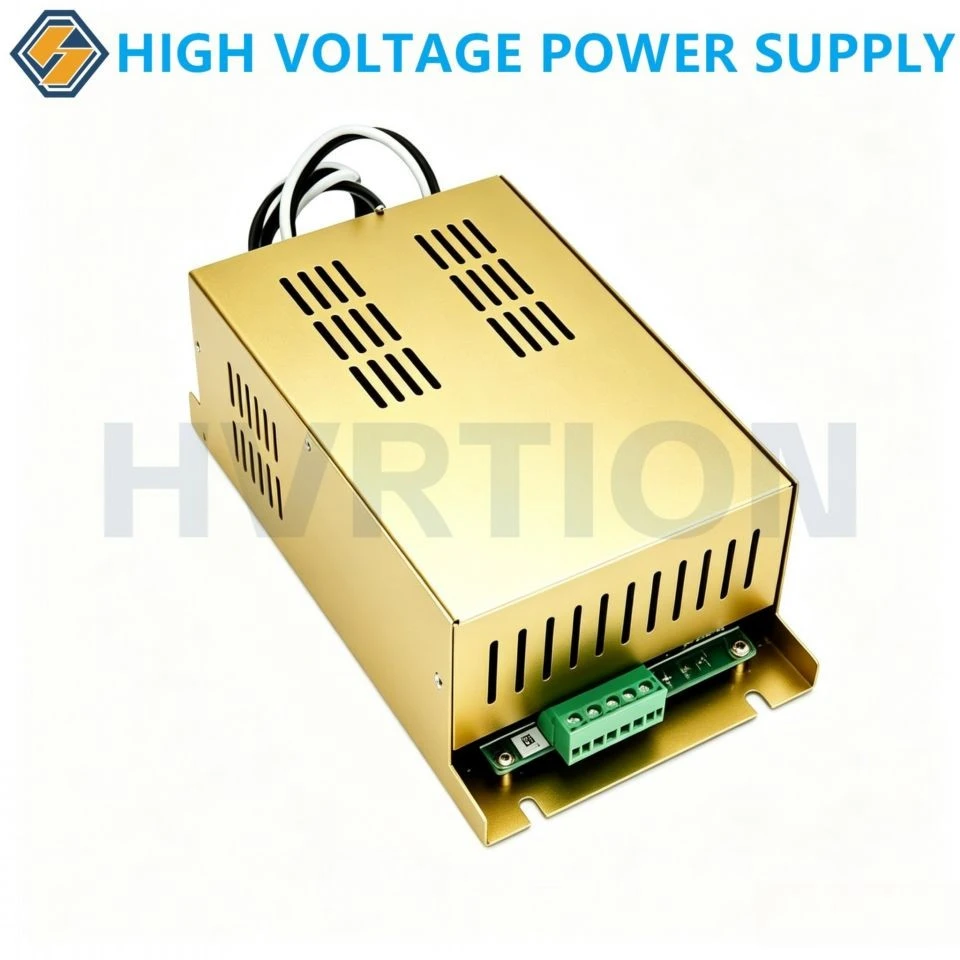

HVHX Series High Voltage Power Supply is a high-performance DC high voltage generator specially designed for electrostatic purification equipment and industrial high voltage applications.
Developed through long-term research, testing, and market validation, the HVHX series has evolved from traditional constant voltage power supply technology into an intelligent high voltage power supply system with stable output, advanced protection functions, and reliable operation.
It is widely used in:
* Industrial oil fume purification equipment
* Commercial kitchen exhaust purification systems
* Electrostatic precipitators (ESP)
* Smoke purification machines
* Smokeless BBQ machines
* Industrial air cleaning equipment
The HVHX series provides stable 9kV–16kV DC high voltage output, supporting different power levels from 50W to 500W to meet various electrostatic purification requirements.
Key Features
1. Stable High Voltage Output
* Output voltage range: DC 9kV–16kV
* High voltage stability for continuous operation
* Constant voltage and constant current control
* Suitable for long-term industrial applications
3.Intelligent Control Function
Compared with standard models, intelligent HX power supplies provide enhanced fault monitoring:
* Automatic locking protection after repeated sparking
* Automatic restart after fault recovery
* Over-temperature protection
* Reduced power operation under abnormal temperature conditions
* Protection against long-time discharge caused by dirty electrodes
These functions help improve equipment safety and extend cleaning intervals of electrostatic systems.
2. Intelligent Protection System
HX series high voltage power supplies integrate multiple protection functions:
Short Circuit Protection
When a short circuit occurs, the power supply enters protection mode to reduce damage risk and protect the high voltage system.
Overload Protection
When the load exceeds the rated capacity, the power supply automatically enters constant current mode and reduces output voltage.
Spark Protection
When discharge or sparking occurs:
* High voltage output shuts down quickly
* Automatic restart function
* Maintains purification efficiency while protecting the equipment
Arc Flash Protection
Special anti-arc design reduces high voltage arcing problems and improves system reliability.
Over Voltage Protection
When the output is unloaded, the power supply maintains stable voltage operation to prevent damage.
Product Specification
HVHX Series High Voltage Power Supply Parameters
|
Model |
Input Voltage |
Input Current |
Output Voltage |
Output Current |
Power |
|
HVHX-158 |
AC220V ±10% |
1–2A |
DC9–16kV |
0–15mA |
200W |
|
HVHX-168 |
AC220V ±10% |
2–3A |
DC9–16kV |
0–20mA |
300W |
|
HVHX-218 |
AC220V ±10% |
3–5A |
DC9–16kV |
0–45mA |
500W |
|
HVHX-50W |
AC220V ±10% |
0.3A |
DC8–12kV |
0–4mA |
50W |
Product Series Comparison
H-50W Mini High Voltage Power Supply
Specifications
|
Item |
Parameter |
|
Input Voltage |
AC220V |
|
Input Current |
0.3A |
|
Output Voltage |
DC8–12kV |
|
Output Current |
0–4mA |
|
Output Power |
50W |
|
Dimension |
188 × 84 × 41mm |
Features
* Compact design
* Low power consumption
* Easy installation
* Suitable for small electrostatic purification systems
HX-158 200W High Voltage Power Supply
Specifications
|
Item |
Parameter |
|
Power |
200W |
|
Input Voltage |
AC220V ±10% |
|
Input Current |
1–2A |
|
Output Voltage |
DC9–16kV |
|
Output Current |
0–15mA |
|
Voltage/Current Display |
Built-in |
HX-168 300W High Voltage Power Supply
Specifications
|
Item |
Parameter |
|
Power |
300W |
|
Input Voltage |
AC220V ±10% |
|
Input Current |
2–3A |
|
Output Voltage |
DC9–16kV |
|
Output Current |
0–20mA |
|
Voltage/Current Display |
Optional |
HX-218 500W High Voltage Power Supply
Specifications
|
Item |
Parameter |
|
Power |
500W |
|
Input Voltage |
AC220V ±10% |
|
Input Current |
3–5A |
|
Output Voltage |
DC9–16kV |
|
Output Current |
0–45mA |
|
Voltage/Current Display |
Built-in or external |
Main Applications
Electrostatic Precipitator Power Supply
HVHX series provides stable high voltage for ESP systems, generating corona discharge fields for particle collection.
Applications:
* Industrial dust removal systems
* Air purification equipment
* Factory exhaust treatment
Oil Fume Purification Equipment
Suitable for:
* Commercial kitchen exhaust purification
* Restaurant oil smoke purification systems
* Catering air purification equipment
High voltage output creates an electrostatic field to improve oil mist and smoke removal efficiency.
Smokeless BBQ Machine
Used in:
* Electric BBQ equipment
* Smoke-free grill systems
* Food processing purification systems
Industrial Air Cleaning Systems
Suitable for:
* Industrial air filtration
* Environmental protection equipment
* Electrostatic cleaning machines
Advantages
High Reliability
* Industrial-grade components
* Stable high voltage output
* Long service life
Multiple Protection Functions
* Short circuit protection
* Overload protection
* Spark protection
* Over-temperature protection
Customization Available
We support customization according to customer requirements:
* Output voltage customization
* Output current customization
* Power customization
* Interface customization
* Mechanical structure customization
Installation Notes
For safe and stable operation:
1. The power supply housing must be connected to the machine ground.
2. Ensure sufficient ventilation space around the power supply.
3. Proper grounding is required for high voltage return circuits.
Why Choose HX Series High Voltage Power Supply?
✔ 9kV–16kV adjustable DC high voltage output
✔ 50W–500W power range
✔ Intelligent protection design
✔ Stable electrostatic field generation
✔ Suitable for industrial continuous operation
✔ OEM customization support
✔ Manufacturer direct supply
