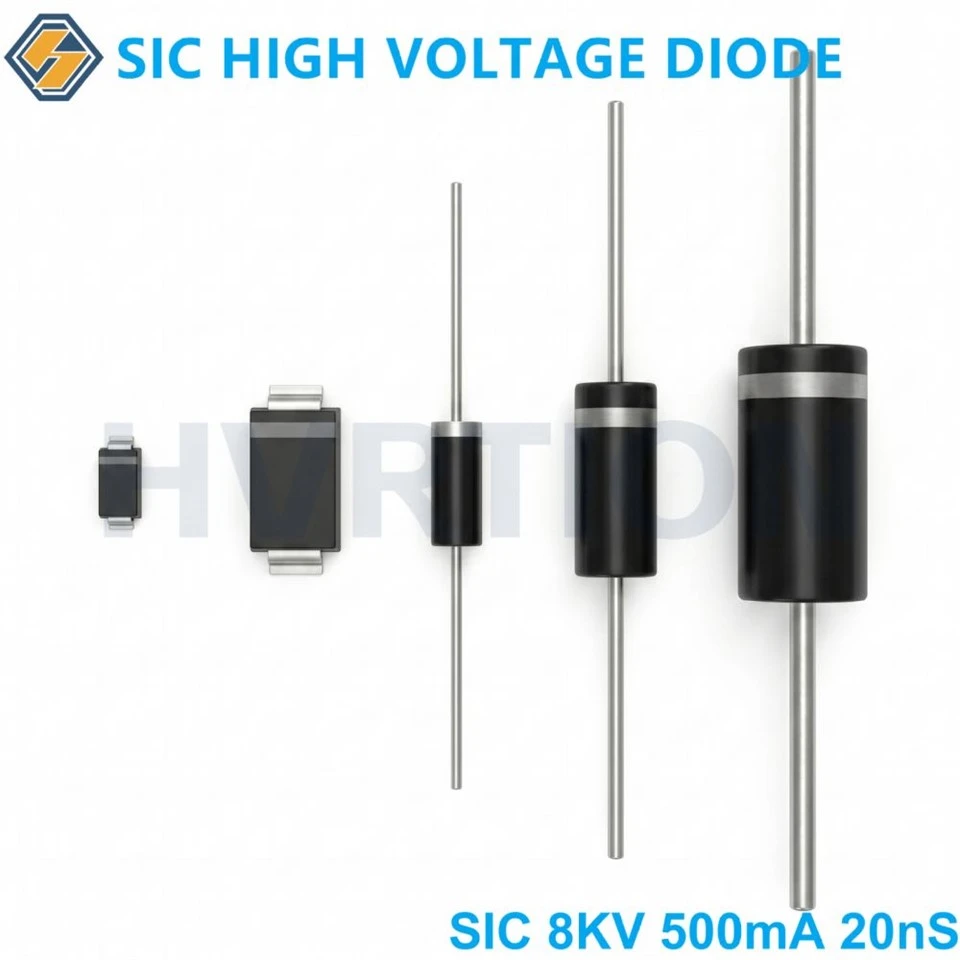

8kV Silicon Carbide High-Voltage Diode Overview
The 8kV Silicon Carbide (SiC) High-Voltage Diode is a next-generation high-performance rectifier designed for demanding high-voltage applications. Utilizing advanced Silicon Carbide semiconductor technology, this diode delivers ultra-fast switching speed, extremely low reverse recovery current, low switching losses, and superior high-temperature performance compared with conventional silicon high-voltage diodes.
With a repetitive peak reverse voltage (VRRM) of 8kV, 0.5A average forward current, and 20ns reverse recovery time, this device is ideal for high-frequency, high-voltage systems where efficiency, reliability, and thermal stability are critical.
Key Features of the 8kV SiC High-Voltage Diode
1. Ultra-High Voltage Capability
* Repetitive Peak Reverse Voltage (VRRM): 8kV
* Suitable for high-voltage power conversion and rectification applications.
* Provides excellent voltage withstand performance and system reliability.
2. Extremely Fast Reverse Recovery
* Reverse Recovery Time (Trr): 20ns
* Significantly reduces switching losses.
* Improves efficiency in high-frequency circuits.
3. Low Reverse Leakage Current
* Maximum Reverse Leakage Current (IRRM): 0.2μA
* Minimizes standby power consumption.
* Enhances long-term reliability.
4. High Temperature Operation
* Maximum Junction Temperature: 175°C
* Excellent thermal stability in harsh industrial environments.
* Suitable for continuous operation under elevated temperatures.
5. High Surge Current Capability
* Peak Forward Surge Current (IFSM): 30A
* Withstands transient overload conditions.
* Improves system robustness and reliability.
6. Superior Silicon Carbide Advantages
* Near-zero reverse recovery charge.
* Lower switching loss than traditional silicon diodes.
* Higher power density.
* Better thermal conductivity.
* Longer service life and enhanced aging resistance.

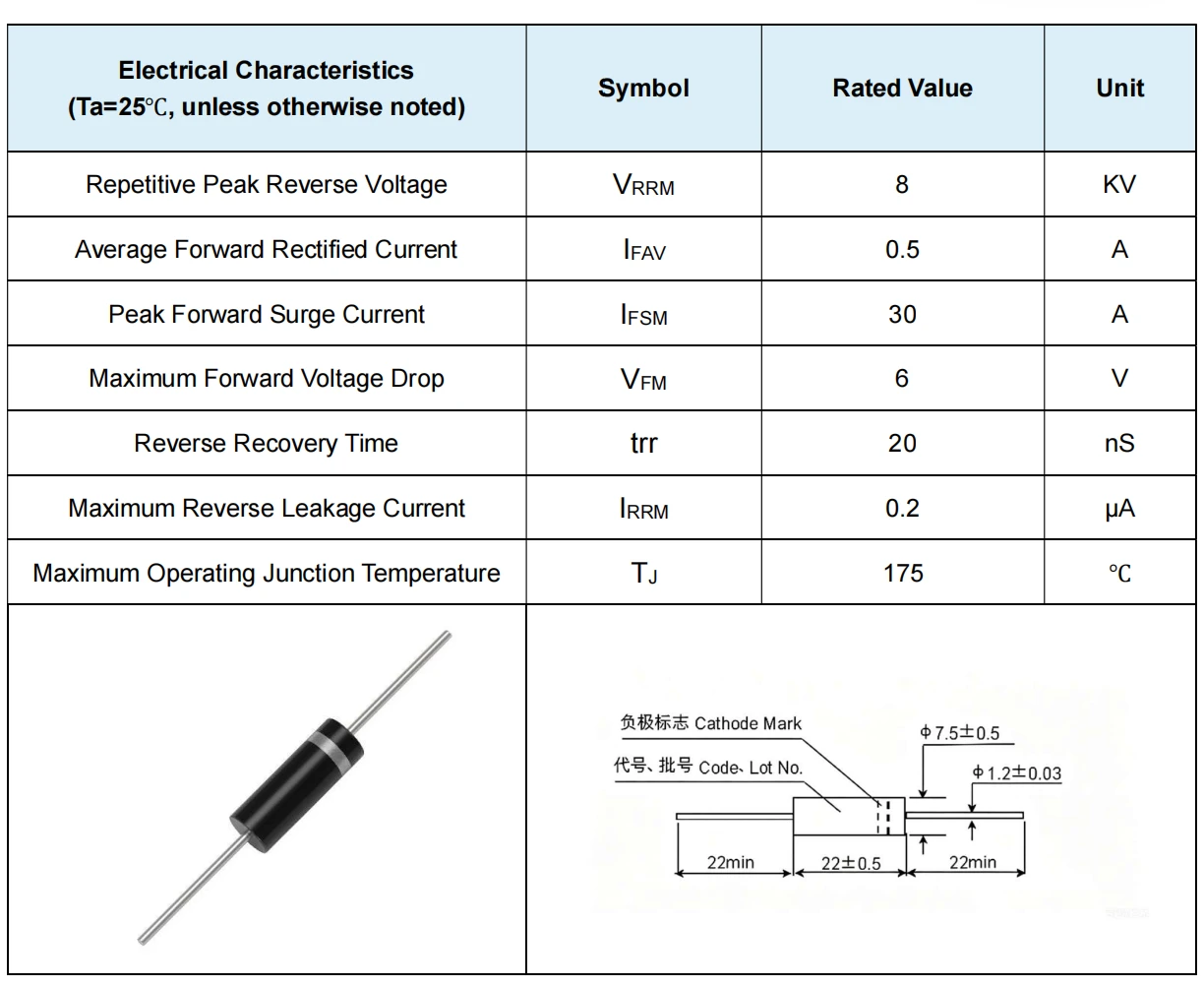

Electrical Characteristics
Silicon Carbide High-Voltage Diode Series

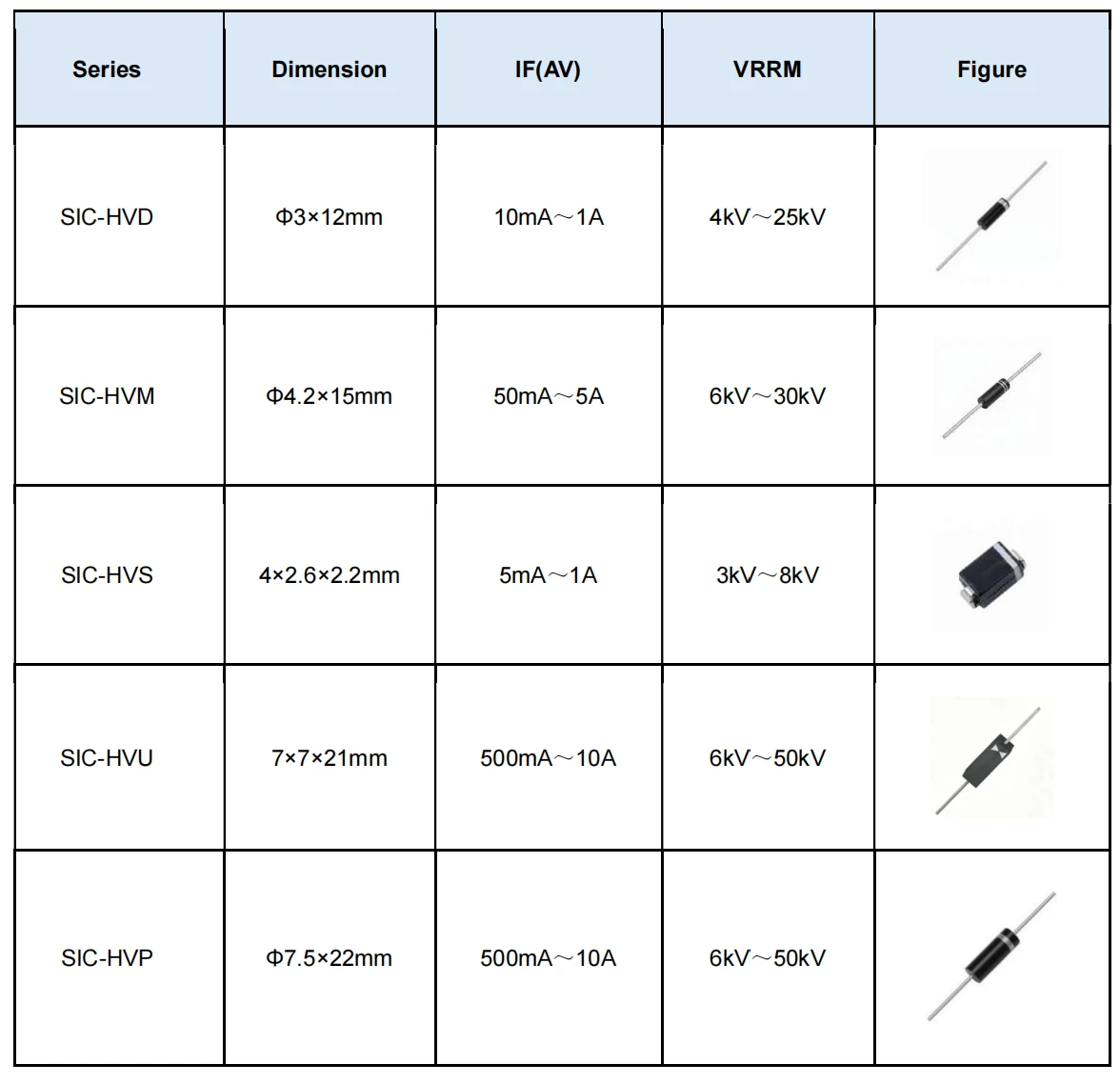

To meet different voltage, current, and packaging requirements, the Silicon Carbide High-Voltage Diode family is available in four major series.
1. SIC-HVD Series-----small currrent
Compact Axial High-Voltage Diodes
Current:10mA-1A
Voltage Range 4kV-25kV
Advantages
* Compact package design.
* High voltage capability in a small footprint.
* Suitable for space-constrained equipment.
Typical Applications
* Electrostatic generators
* High-voltage probes
* Laboratory instruments
* Compact power modules
2. SIC-HVM Series-----Medium Power High-Voltage Diodes
Current Range 50mA-5A
Voltage Range 6kV-30kV
Advantages
* Higher current capability.
* Excellent thermal performance.
* Balanced size-to-power ratio.
Typical Applications
* Medical power supplies
* Industrial X-ray equipment
* HV DC power systems
* Laser power supplies
3. SIC-HVS Series
Surface-Mount High-Voltage Diodes
Current Range 5mA-1A
Voltage Range 3kV-8kV
Advantages
* Surface-mount package.
* Ideal for automated assembly.
* Suitable for compact PCB designs.
Typical Applications
* Portable medical devices
* PCB-mounted HV modules
* Compact switching power supplies
* Precision electronic instruments
4. SIC-HVP Series
High-Power SiC High-Voltage Diodes
Current Range 500mA-10A
Voltage Range 6kV-50kV
Advantages
* Highest current capability in the series.
* Excellent surge current performance.
* Designed for demanding industrial applications.
Typical Applications
* Pulsed power systems
* Radar transmitters
* Particle accelerators
* High-voltage capacitor charging systems
* Industrial high-voltage power supplies
Advantages of Silicon Carbide High-Voltage Diodes
Compared with conventional silicon high-voltage rectifiers, SiC high-voltage diodes offer significant performance benefits:
Lower Switching Loss
SiC technology virtually eliminates reverse recovery losses, enabling higher efficiency and reduced heat generation.
Faster Switching Speed
Ultra-fast switching supports high-frequency power conversion systems.
Higher Temperature Capability
Reliable operation up to 175°C junction temperature reduces cooling requirements.
Improved Reliability
Outstanding resistance to thermal stress, voltage stress, and aging mechanisms.
Higher Power Density
Allows designers to build smaller and lighter high-voltage power supplies.
Longer Service Life
Reduced thermal stress extends system operating life and lowers maintenance costs.
Typical Applications
The Silicon Carbide High-Voltage Diode Series is widely used in:
* High-Voltage DC Power Supplies
* Electrostatic Precipitators (ESP)
* Medical Imaging Equipment
* X-Ray Generators
* CT Scanners
* Radar Systems
* Laser Power Supplies
* Pulse Power Systems
* Industrial Power Supplies
* High-Voltage Test Equipment
* Scientific Instruments
* Particle Accelerators
* Capacitor Charging Circuits
* Aerospace and Defense Electronics
Why Choose Our SiC High-Voltage Diodes?
Wide Voltage Range: 3kV to 50kV
Current Ratings from 5mA to 10A
Fast Recovery Time as Low as 20ns
Low Leakage Current
High Reliability and Long Service Life
Operating Temperature up to 175°C
Multiple Package Options Available
Custom Voltage and Current Specifications Supported
Request a Quote for 8kV Silicon Carbide High-Voltage Diodes
Looking for a reliable 8kV SiC high-voltage rectifier diode for your next high-voltage design? Our SIC-HVP series provides outstanding efficiency, ultra-fast recovery, and exceptional reliability for demanding industrial, medical, scientific, and power conversion applications.
Contact us today for datasheets, samples, pricing, and custom high-voltage SiC diode solutions.
